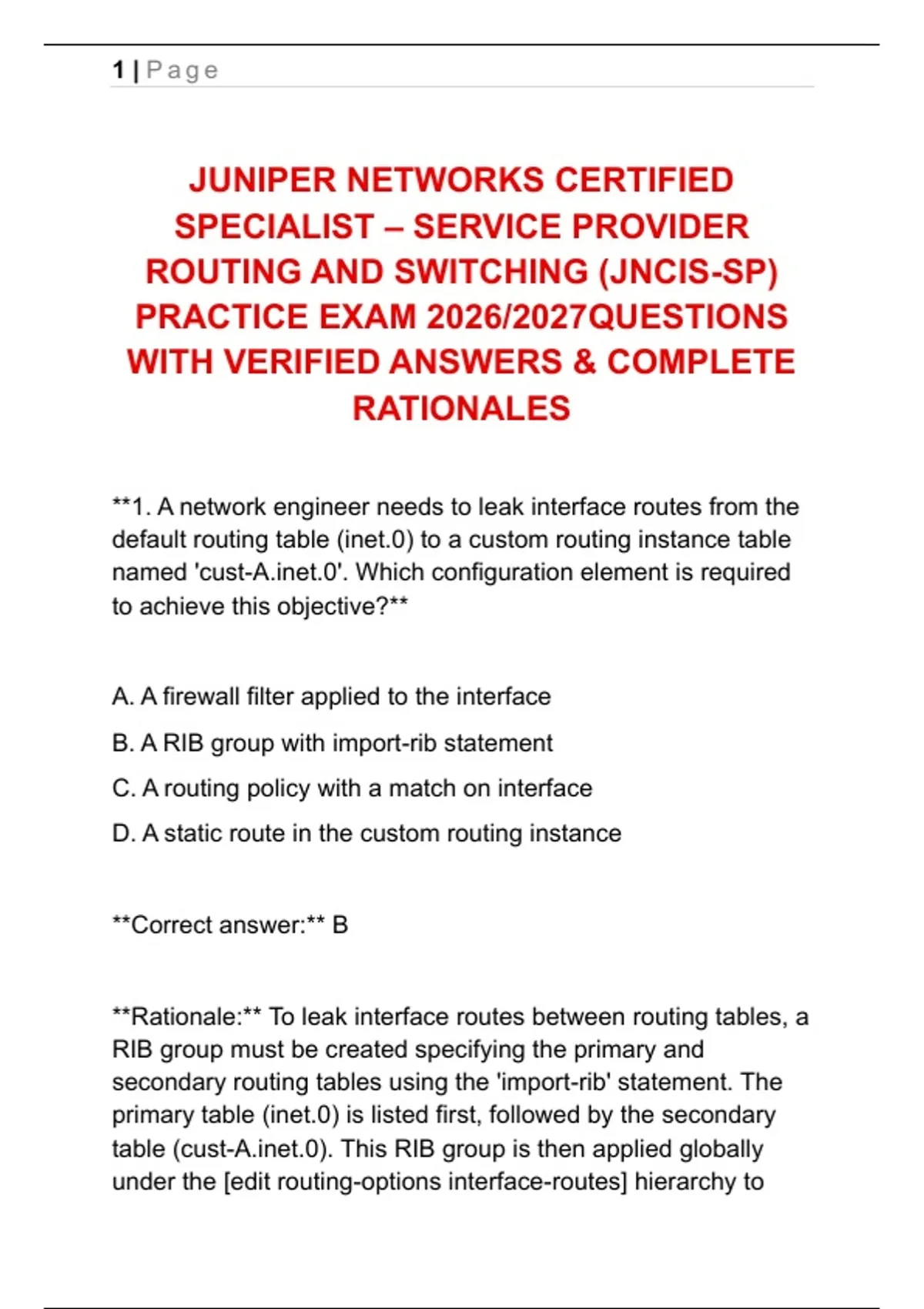

1 | Page
JUNIPER NETWORKS CERTIFIED
SPECIALIST – SERVICE PROVIDER
ROUTING AND SWITCHING (JNCIS-SP)
PRACTICE EXAM 2026/2027QUESTIONS
WITH VERIFIED ANSWERS & COMPLETE
RATIONALES
**1. A network engineer needs to leak interface routes from the
default routing table (inet.0) to a custom routing instance table
named 'cust-A.inet.0'. Which configuration element is required
to achieve this objective?**
A. A firewall filter applied to the interface
B. A RIB group with import-rib statement
C. A routing policy with a match on interface
D. A static route in the custom routing instance
**Correct answer:** B
**Rationale:** To leak interface routes between routing tables, a
RIB group must be created specifying the primary and
secondary routing tables using the 'import-rib' statement. The
primary table (inet.0) is listed first, followed by the secondary
table (cust-A.inet.0). This RIB group is then applied globally
under the [edit routing-options interface-routes] hierarchy to
,2 | Page
instruct the router to place direct interface routes into both
tables.
**2. A service provider requires traffic engineering based on
source IP address and application type. HTTP traffic from
subnet 10.1.1.0/24 must be routed to ISP-1, while all other
traffic follows the default route to ISP-2. The design must
minimize impact on the global routing table. Which combination
of configuration elements is required?**
A. A firewall filter with 'then routing-instance' action pointing to a
forwarding-type routing instance
B. A policy-statement applied under [edit protocols bgp] with
community matching
C. A static route with a qualified next-hop in inet.0
D. A VRF routing instance with route targets
**Correct answer:** A
**Rationale:** Filter-Based Forwarding (FBF) relies on a firewall
filter applied to the ingress interface. The filter evaluates traffic
and uses the 'then routing-instance' action for matched
packets, directing them to a custom routing instance. To isolate
this forwarding plane without creating full virtual routers, the
instance is typically configured as 'instance-type forwarding'
and populated with the necessary next-hop routes. Traffic not
matching the filter falls through to the global routing table.
, 3 | Page
**3. When comparing aggregate and generated routes in Junos
OS, which TWO statements accurately describe their
characteristics? (Select TWO)**
A. Both have a default route preference of 130
B. Aggregate routes use a reject next-hop by default, while
generated routes can inherit a real next-hop
C. Aggregate routes appear in the routing table only if at least
one contributing route exists
D. Generated routes always require a contributing route to be
active
**Correct answer:** B, C
**Rationale:** Both aggregate and generated routes are used
to summarize routing information. By default, an aggregate
route is assigned a next-hop of reject (or discard), preventing
routing loops for subnets within the summary that do not exist.
A generated route can inherit the real next-hop of the primary
contributing route, allowing it to forward traffic dynamically. Both
appear in the routing table only if at least one or more specific
contributing subnets exist.
