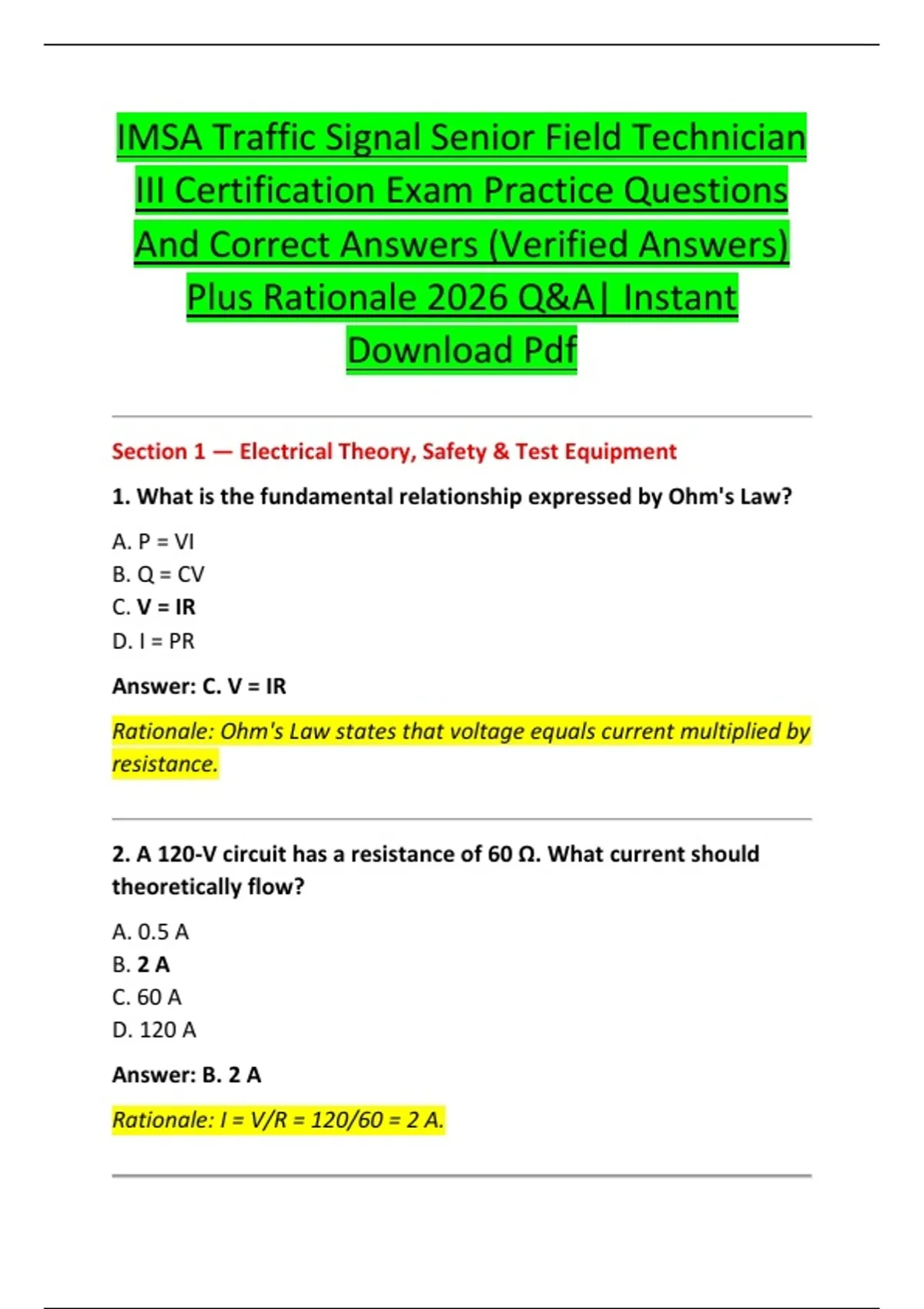

IMSA Traffic Signal Senior Field Technician
III Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
Section 1 — Electrical Theory, Safety & Test Equipment
1. What is the fundamental relationship expressed by Ohm's Law?
A. P = VI
B. Q = CV
C. V = IR
D. I = PR
Answer: C. V = IR
Rationale: Ohm's Law states that voltage equals current multiplied by
resistance.
2. A 120-V circuit has a resistance of 60 Ω. What current should
theoretically flow?
A. 0.5 A
B. 2 A
C. 60 A
D. 120 A
Answer: B. 2 A
Rationale: I = V/R = 120/60 = 2 A.
,3. What is the electrical power consumed by a 120-V load drawing 5
A?
A. 24 W
B. 125 W
C. 600 W
D. 1,200 W
Answer: C. 600 W
Rationale: Power is P = VI, so 120 × 5 = 600 W.
4. Before opening or servicing a traffic signal cabinet, the
technician's first priority should be to:
A. Remove the controller
B. Disable detection
C. Check the signal timing
D. Establish safe working conditions and follow the applicable
electrical safety procedure
Answer: D. Establish safe working conditions and follow the
applicable electrical safety procedure
Rationale: Electrical and traffic hazards must be controlled before
diagnostic or maintenance work begins.
5. What instrument is normally used to measure voltage?
A. Ammeter
B. Ohmmeter
C. Voltmeter or multimeter configured for voltage
D. Megger only
Answer: C. Voltmeter or multimeter configured for voltage
,Rationale: A properly configured meter measures potential difference
between two points.
6. When measuring resistance with a conventional multimeter, the
circuit should generally be:
A. Energized
B. In flash
C. De-energized and isolated as appropriate
D. In maximum load
Answer: C. De-energized and isolated as appropriate
Rationale: Resistance measurements on an energized circuit can
produce incorrect readings and damage equipment or create
hazards.
7. A high-resistance connection in a signal circuit can cause:
A. Lower voltage drop
B. Excessive voltage drop and heating
C. Increased conductor capacity
D. Improved efficiency
Answer: B. Excessive voltage drop and heating
Rationale: Resistance in a connection causes voltage loss and can
produce localized heating under load.
8. In a series circuit, current is:
A. Different through every component
B. Zero at the load
C. The same through each series component
D. Determined only by wire size
, Answer: C. The same through each series component
Rationale: A series circuit provides one continuous current path.
9. In a parallel circuit, the voltage across properly connected
branches is:
A. Always zero
B. Different because current splits
C. The same across each branch
D. Equal to resistance
Answer: C. The same across each branch
Rationale: Parallel branches share the same two electrical nodes.
10. What is the primary purpose of equipment grounding?
A. Increase operating voltage
B. Reduce lamp brightness
C. Provide a low-impedance path for fault current and help
facilitate protective-device operation
D. Eliminate all electrical hazards
Answer: C. Provide a low-impedance path for fault current and help
facilitate protective-device operation
Rationale: Grounding provides an intentional fault-current path and
supports effective protective operation.
11. What does a circuit breaker primarily provide?
A. Signal coordination
B. Vehicle detection
