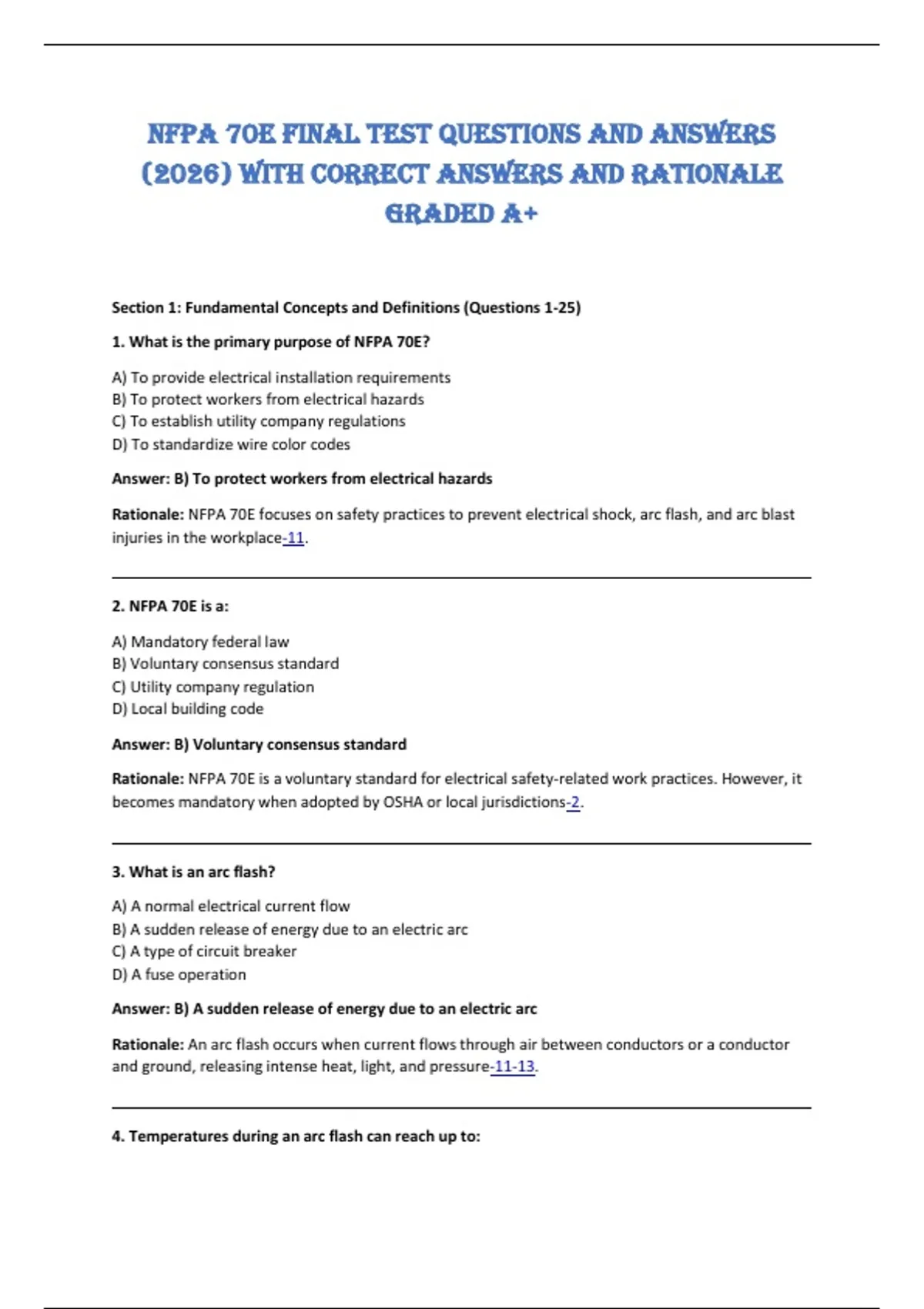

NFPA 70E Final Test Questions and Answers
(2026) with correct answers and rationale
graded A+
Section 1: Fundamental Concepts and Definitions (Questions 1-25)
1. What is the primary purpose of NFPA 70E?
A) To provide electrical installation requirements
B) To protect workers from electrical hazards
C) To establish utility company regulations
D) To standardize wire color codes
Answer: B) To protect workers from electrical hazards
Rationale: NFPA 70E focuses on safety practices to prevent electrical shock, arc flash, and arc blast
injuries in the workplace-11.
2. NFPA 70E is a:
A) Mandatory federal law
B) Voluntary consensus standard
C) Utility company regulation
D) Local building code
Answer: B) Voluntary consensus standard
Rationale: NFPA 70E is a voluntary standard for electrical safety-related work practices. However, it
becomes mandatory when adopted by OSHA or local jurisdictions-2.
3. What is an arc flash?
A) A normal electrical current flow
B) A sudden release of energy due to an electric arc
C) A type of circuit breaker
D) A fuse operation
Answer: B) A sudden release of energy due to an electric arc
Rationale: An arc flash occurs when current flows through air between conductors or a conductor
and ground, releasing intense heat, light, and pressure-11-13.
4. Temperatures during an arc flash can reach up to:
,A) 350°F
B) 3,500°F
C) 35,000°F
D) 350,000°F
Answer: C) 35,000°F
Rationale: Arc flash temperatures can exceed 35,000°F, which is hotter than the surface of the sun.
This extreme heat causes rapid expansion of air and copper, creating the arc blast-12-13.
5. What is an arc blast?
A) A minor spark
B) The explosive pressure wave, shrapnel, and sound that accompanies an arc flash
C) The process of opening a circuit breaker
D) A type of welding process
Answer: B) The explosive pressure wave, shrapnel, and sound that accompanies an arc flash
Rationale: The arc blast is the pressure wave from superheated air expanding rapidly during an arc
flash. It can cause traumatic injuries including ruptured eardrums and being thrown-13.
6. How is incident energy measured?
A) Volts
B) Amperes
C) Cal/cm²
D) Ohms
Answer: C) Cal/cm²
Rationale: Incident energy is measured in calories per square centimeter (cal/cm²) and represents
the thermal energy a worker could be exposed to during an arc flash-11.
7. What is the arc flash boundary?
A) The distance at which incident energy equals 0.5 cal/cm²
B) The distance at which incident energy equals 1.2 cal/cm²
C) The distance at which incident energy equals 2.0 cal/cm²
D) The distance at which voltage drops to zero
Answer: B) The distance at which incident energy equals 1.2 cal/cm²
Rationale: The arc flash boundary is the approach limit at which incident energy equals 1.2 cal/cm²
(5 J/cm²). This value represents the threshold for the onset of a second-degree burn on unprotected
skin-13.
8. What is the definition of "risk" in NFPA 70E?
,A) The probability of equipment failure
B) A combination of the likelihood of occurrence of injury and the severity of that injury
C) The cost of safety equipment
D) The voltage level of exposed conductors
Answer: B) A combination of the likelihood of occurrence of injury and the severity of that injury
Rationale: Risk is defined as the combination of the likelihood of occurrence of a hazardous event
and the severity of injury or illness that may result from the hazard-2.
9. What is an "Electrically Safe Work Condition" (ESWC)?
A) Equipment with doors closed
B) A state where conductors have been disconnected, locked/tagged, tested, and grounded as
necessary
C) Equipment that is turned off but not locked out
D) Equipment operating at less than 50 volts
Answer: B) A state where conductors have been disconnected, locked/tagged, tested, and
grounded as necessary
Rationale: An ESWC exists when the conductor or circuit part has been disconnected from energized
parts, locked/tagged, tested to verify absence of voltage, and grounded if necessary-13-18.
10. Which of the following is NOT considered a recognized hazard associated with electricity?
A) Shock
B) Arc flash
C) Arc blast
D) Electroporation
Answer: D) Electroporation
Rationale: The recognized electrical hazards are shock, arc flash, and arc blast. Electroporation is not
an electrical hazard category in NFPA 70E-2-12.
11. What is the electrical shock voltage threshold?
A) 12 VAC / 12 VDC
B) 24 VAC / 24 VDC
C) 50 VAC / 50 VDC
D) 120 VAC / 120 VDC
Answer: C) 50 VAC / 50 VDC
Rationale: NFPA 70E establishes 50 volts as the threshold at which electrical conductors and circuit
parts must be placed in an electrically safe work condition before work is performed-3-7.
, 12. Current through the body is measured in:
A) Volts
B) Ohms
C) Milliamps
D) Kilovolt-amperes
Answer: C) Milliamps
Rationale: When a person receives an electrical shock, the current through the body is measured in
milliamps (mA)-2-12.
13. At what current level do most people reach the "let-go" threshold?
A) 3 mA to 5 mA
B) 6 mA to 8 mA
C) 10 mA to 16 mA
D) 30 mA to 40 mA
Answer: C) 10 mA to 16 mA
Rationale: At 10 mA to 16 mA, most people reach the let-go threshold, where muscle contractions
prevent them from releasing energized conductors-2-12.
14. It takes less electrical current to produce the same effect on women than on men.
A) True
B) False
Answer: A) True
Rationale: Physiological differences mean that lower current levels produce the same effects in
women compared to men-2-12.
15. What is a shock hazard?
A) A dangerous condition associated with the possible release of energy caused by an electric arc
B) A dangerous condition such that contact or equipment failure can result in electric shock, arc flash
burn, thermal burn, or arc blast injury
C) A condition where voltage exceeds 50 volts
D) A condition where current exceeds 10 milliamps
Answer: B) A dangerous condition such that contact or equipment failure can result in electric
shock, arc flash burn, thermal burn, or arc blast injury
Rationale: This definition appears in NFPA 70E and encompasses the full range of electrical dangers
beyond just shock-13.
16. What is the "limited approach boundary"?
