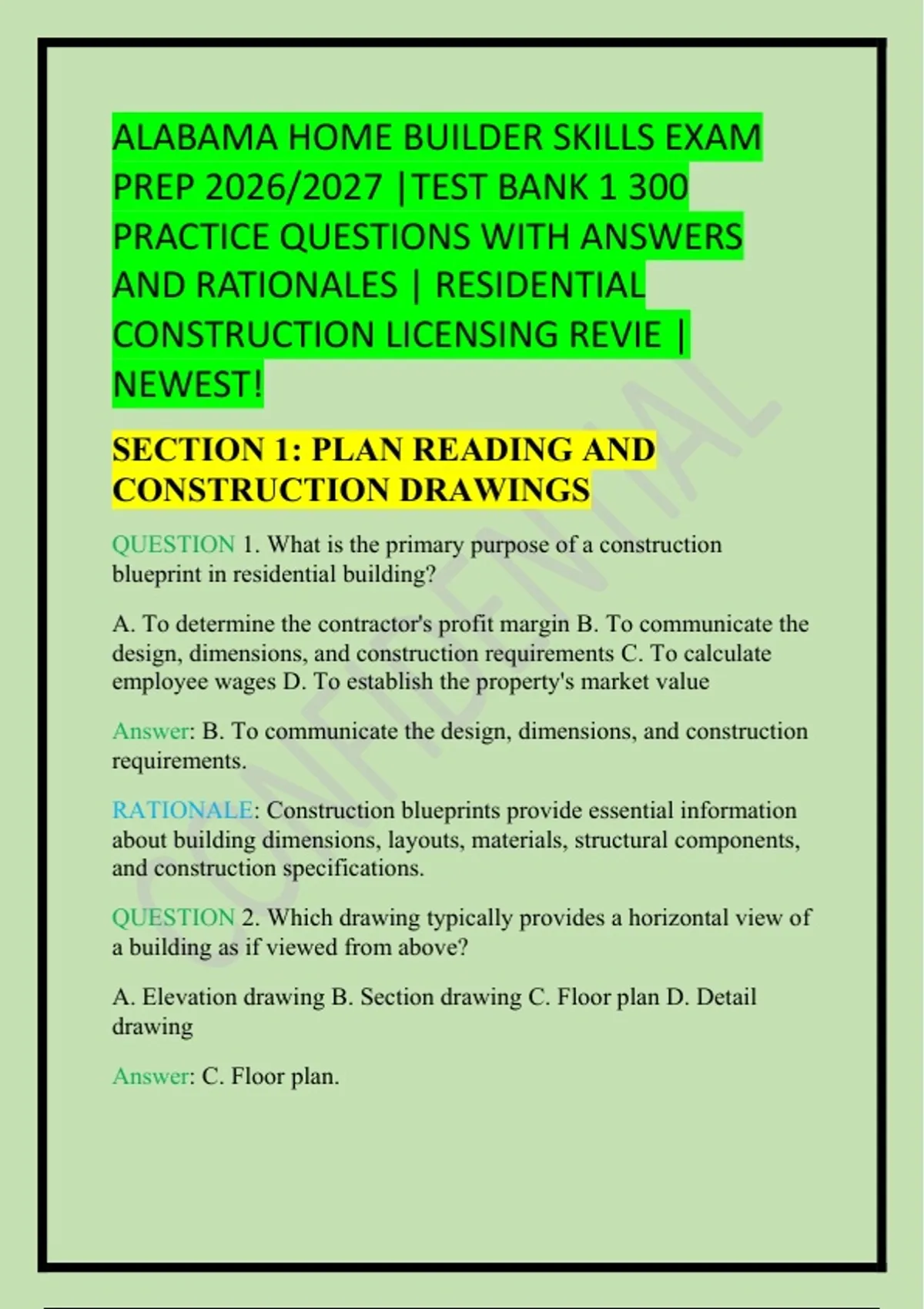

ALABAMA HOME BUILDER SKILLS EXAM
PREP 2026/2027 |TEST BANK 1 300
PRACTICE QUESTIONS WITH ANSWERS
AND RATIONALES | RESIDENTIAL
CONSTRUCTION LICENSING REVIE |
NEWEST!
SECTION 1: PLAN READING AND
CONSTRUCTION DRAWINGS
QUESTION 1. What is the primary purpose of a construction
blueprint in residential building?
A. To determine the contractor's profit margin B. To communicate the
design, dimensions, and construction requirements C. To calculate
employee wages D. To establish the property's market value
Answer: B. To communicate the design, dimensions, and construction
requirements.
RATIONALE: Construction blueprints provide essential information
about building dimensions, layouts, materials, structural components,
and construction specifications.
QUESTION 2. Which drawing typically provides a horizontal view of
a building as if viewed from above?
A. Elevation drawing B. Section drawing C. Floor plan D. Detail
drawing
Answer: C. Floor plan.
,RATIONALE: A floor plan shows the arrangement of rooms, walls,
doors, windows, and other building features from a horizontal
perspective.
QUESTION 3. What does a building section drawing primarily
illustrate?
A. Exterior paint colors B. Vertical relationships between building
components C. Property ownership boundaries D. Electrical appliance
locations only
Answer: B. Vertical relationships between building components.
RATIONALE: Section drawings show a building cut vertically,
revealing construction details such as foundations, floors, walls,
ceilings, and roof assemblies.
QUESTION 4. On a standard architectural drawing, what does the
abbreviation CL commonly represent?
A. Construction level B. Centerline C. Ceiling length D. Concrete
load
Answer: B. Centerline.
RATIONALE: CL is commonly used to identify the centerline of
structural elements, fixtures, openings, and other building
components.
QUESTION 5. What is the primary purpose of a drawing scale?
A. To indicate material quality B. To establish construction costs C.
To represent actual dimensions proportionally on paper D. To identify
the building's completion date
Answer: C. To represent actual dimensions proportionally on paper.
RATIONALE: A drawing scale allows builders to interpret real-world
dimensions from a reduced or enlarged drawing.
,QUESTION 6. A floor plan uses a scale of 1/4 inch = 1 foot. A wall
measures 3 inches on the drawing. What is its actual length?
A. 6 feet B. 9 feet C. 12 feet D. 15 feet
Answer: C. 12 feet.
RATIONALE: At this scale, each quarter inch represents one foot.
Three inches contains twelve quarter-inch increments, representing 12
actual feet.
QUESTION 7. Which drawing would be most useful for determining
the exterior appearance of a residential building?
A. Foundation plan B. Elevation drawing C. Electrical schedule D.
Plumbing diagram
Answer: B. Elevation drawing.
RATIONALE: Elevations show the exterior faces of a building,
including rooflines, windows, doors, exterior finishes, and vertical
dimensions.
QUESTION 8. What information is generally found in a foundation
plan?
A. Furniture arrangements B. Foundation dimensions, footings, and
supporting elements C. Interior decorating selections D. Appliance
warranty information
Answer: B. Foundation dimensions, footings, and supporting
elements.
RATIONALE: Foundation plans identify foundation walls, footing
locations, dimensions, reinforcing details, and other supporting
structural components.
QUESTION 9. What is the primary function of a drawing legend?
, A. To provide contractor contact information B. To explain symbols
and abbreviations used in drawings C. To list employee
responsibilities D. To determine construction schedules
Answer: B. To explain symbols and abbreviations used in drawings.
RATIONALE: A legend helps contractors interpret standardized
symbols, line types, and abbreviations used throughout construction
documents.
QUESTION 10. Which document provides detailed written
requirements for materials, workmanship, and construction
procedures?
A. Property survey B. Construction specifications C. Marketing
brochure D. Purchase receipt
Answer: B. Construction specifications.
RATIONALE: Specifications supplement drawings by describing
required materials, installation methods, performance standards, and
quality expectations.
SECTION 2: SITEWORK AND
FOUNDATIONS
QUESTION 11. What is the primary purpose of site grading before
residential construction?
A. To increase the property's assessed value B. To establish proper
drainage and building elevations C. To eliminate the need for
foundations D. To determine interior wall locations
Answer: B. To establish proper drainage and building elevations.
RATIONALE: Proper grading directs surface water away from the
building and establishes suitable elevations for construction.
QUESTION 12. What is the main purpose of a footing in residential
construction?
