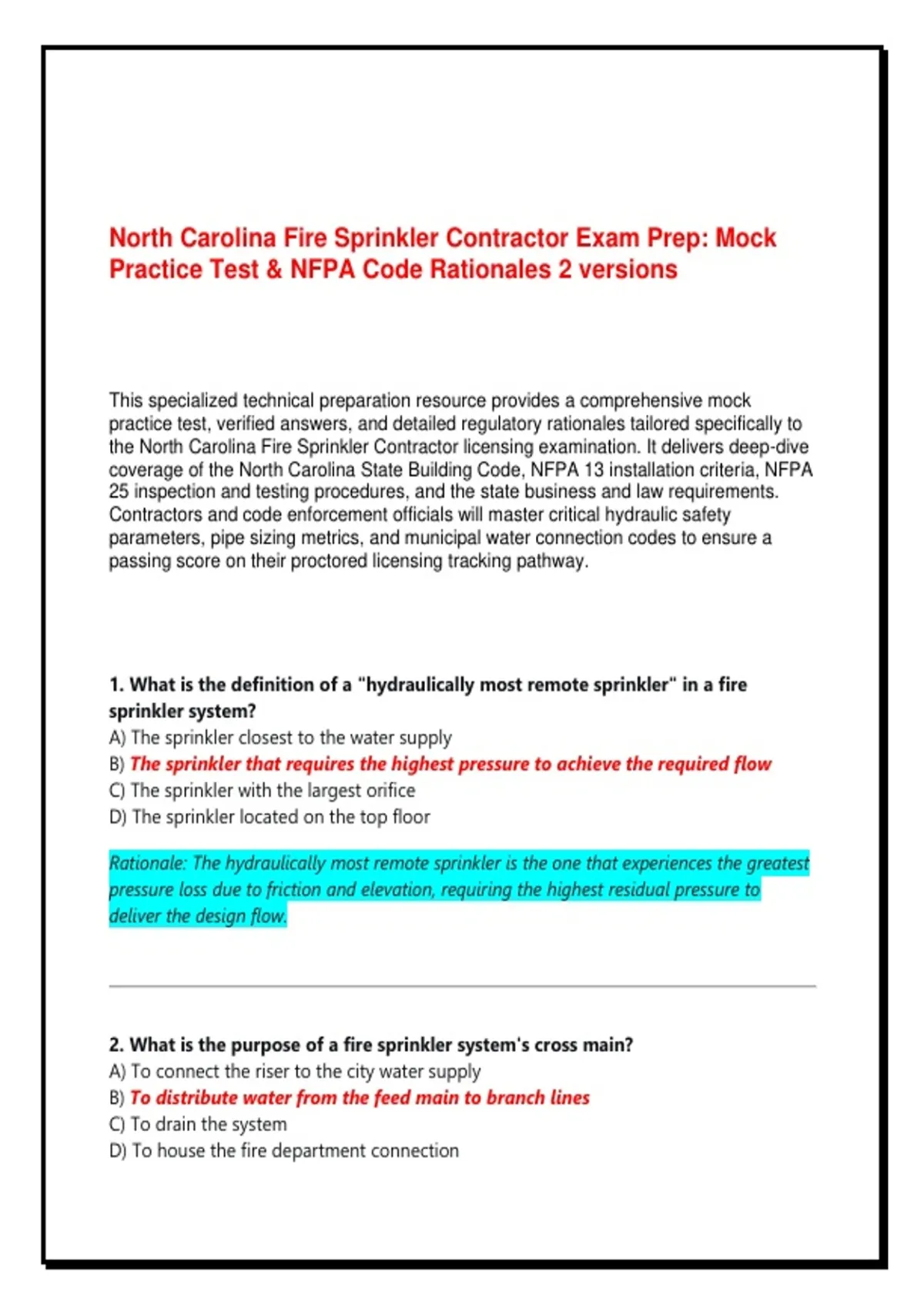

North Carolina Fire Sprinkler Contractor Exam Prep: Mock
Practice Test & NFPA Code Rationales 2 versions
This specialized technical preparation resource provides a comprehensive mock
practice test, verified answers, and detailed regulatory rationales tailored specifically to
the North Carolina Fire Sprinkler Contractor licensing examination. It delivers deep-dive
coverage of the North Carolina State Building Code, NFPA 13 installation criteria, NFPA
25 inspection and testing procedures, and the state business and law requirements.
Contractors and code enforcement officials will master critical hydraulic safety
parameters, pipe sizing metrics, and municipal water connection codes to ensure a
passing score on their proctored licensing tracking pathway.
1. What is the definition of a "hydraulically most remote sprinkler" in a fire
sprinkler system?
A) The sprinkler closest to the water supply
B) The sprinkler that requires the highest pressure to achieve the required flow
C) The sprinkler with the largest orifice
D) The sprinkler located on the top floor
Rationale: The hydraulically most remote sprinkler is the one that experiences the greatest
pressure loss due to friction and elevation, requiring the highest residual pressure to
deliver the design flow.
2. What is the purpose of a fire sprinkler system's cross main?
A) To connect the riser to the city water supply
B) To distribute water from the feed main to branch lines
C) To drain the system
D) To house the fire department connection
,Rationale: The cross main is a pipe that distributes water from the feed main to the branch
lines serving individual sprinklers.
3. What is the function of a fire sprinkler system's feed main?
A) To supply water directly to sprinklers
B) To carry water from the riser to the cross mains
C) To drain the system
D) To activate the alarm
Rationale: The feed main is the pipe that connects the riser to the cross mains, supplying
water to the branch lines.
4. What is the purpose of a fire sprinkler system's branch line?
A) To connect the riser to the feed main
B) To supply water directly to individual sprinklers
C) To drain the system
D) To house the inspector's test valve
Rationale: Branch lines are the pipes that directly serve individual sprinklers, distributing
water to the sprinkler heads.
5. What is a fire sprinkler system's riser?
A) The horizontal pipe that supplies branch lines
B) The vertical pipe that connects the water supply to the system piping
C) The pipe that drains the system
D) The pipe that connects to the fire department connection
Rationale: The riser is the vertical pipe that brings water from the water supply into the
sprinkler system's piping network.
,6. What is the purpose of an OS&Y valve in a fire sprinkler system?
A) To regulate water pressure
B) To indicate whether the valve is open or closed by the position of the stem
C) To prevent backflow
D) To drain the system
Rationale: An OS&Y (Outside Stem and Yoke) valve visually indicates its open or closed
status by the position of the stem, making it easy to verify.
7. What is the purpose of a PIV (Post Indicator Valve) in a fire sprinkler system?
A) To regulate water pressure
B) To indicate open or closed status from a distance
C) To prevent backflow
D) To drain the system
Rationale: A PIV is a valve with an indicator post that shows from a distance whether the
valve is open or closed.
8. What is the purpose of a fire sprinkler system's tamper switch?
A) To detect water flow
B) To alert when a valve is moved from its normal position
C) To measure pressure
D) To drain the system
Rationale: A tamper switch monitors the position of a valve and sends a supervisory signal
if the valve is closed or moved from its normal open position.
9. What is the purpose of a fire sprinkler system's valve supervisory switch?
A) To detect water flow
B) To monitor the open or closed status of a valve
C) To measure pressure
D) To activate the fire pump
, Rationale: A valve supervisory switch monitors the position of a control valve and sends a
signal if the valve is not in its correct position.
10. What is the purpose of a fire sprinkler system's pressure switch?
A) To detect water flow
B) To activate the alarm when a predetermined pressure is reached
C) To measure water level
D) To drain the system
Rationale: A pressure switch activates the alarm system when water pressure in the
sprinkler system reaches a set threshold, indicating water flow.
11. What is the purpose of a fire sprinkler system's sight glass?
A) To measure water pressure
B) To visually verify the water level in a tank or the presence of water in a dry
system
C) To detect water flow
D) To drain the system
Rationale: A sight glass provides a visual indication of water level in a tank or the presence
of water in a dry pipe system.
12. What is the purpose of a fire sprinkler system's exhauster?
A) To increase water pressure
B) To accelerate the release of air from a dry pipe system
C) To filter water
D) To measure flow
Rationale: An exhauster is used in dry pipe systems to quickly release air, allowing water
to reach sprinklers faster.
