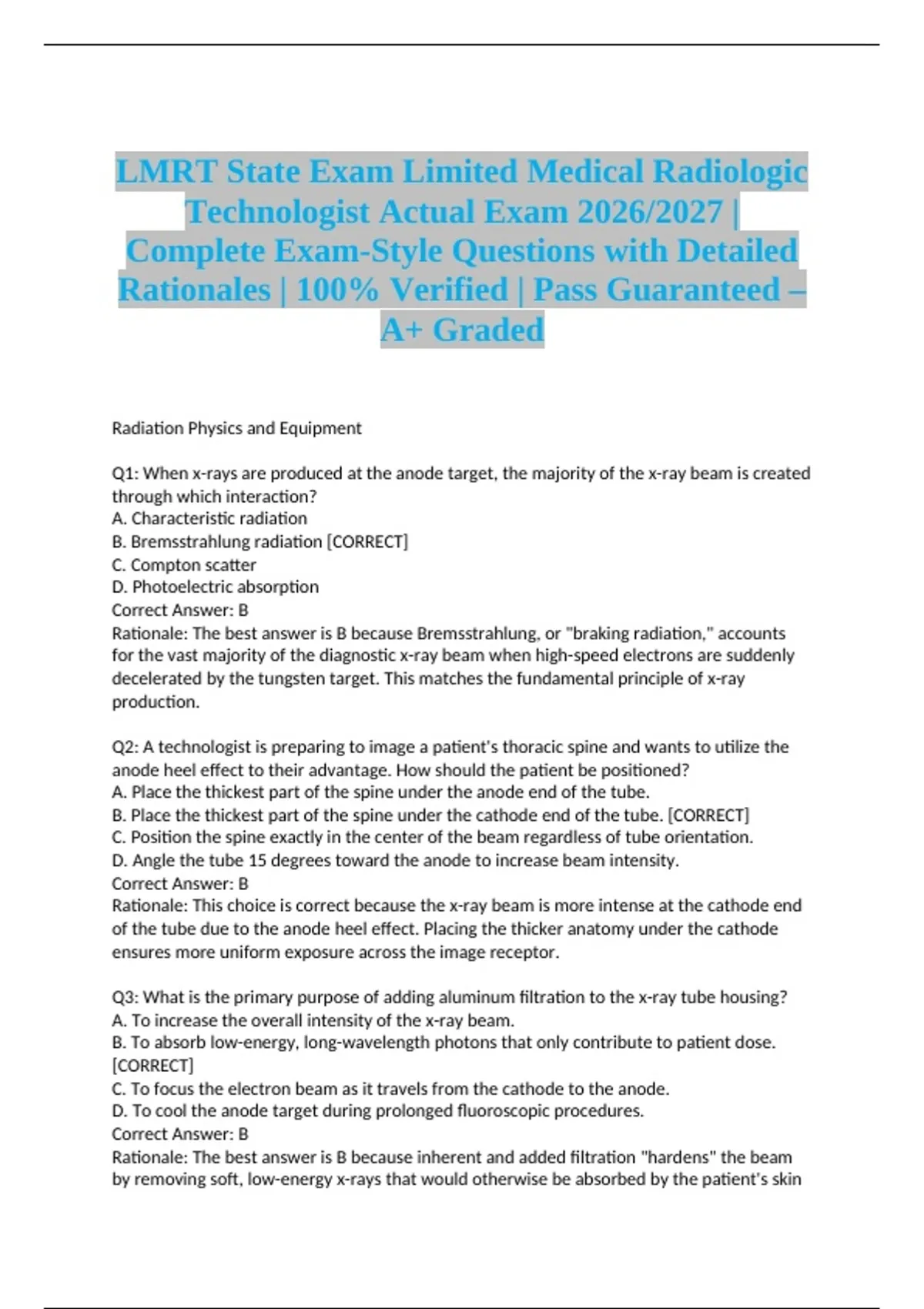

LMRT State Exam Limited Medical Radiologic
Technologist Actual Exam 2026/2027 |
Complete Exam-Style Questions with Detailed
Rationales | 100% Verified | Pass Guaranteed –
A+ Graded
Radiation Physics and Equipment
Q1: When x-rays are produced at the anode target, the majority of the x-ray beam is created
through which interaction?
A. Characteristic radiation
B. Bremsstrahlung radiation [CORRECT]
C. Compton scatter
D. Photoelectric absorption
Correct Answer: B
Rationale: The best answer is B because Bremsstrahlung, or "braking radiation," accounts
for the vast majority of the diagnostic x-ray beam when high-speed electrons are suddenly
decelerated by the tungsten target. This matches the fundamental principle of x-ray
production.
Q2: A technologist is preparing to image a patient's thoracic spine and wants to utilize the
anode heel effect to their advantage. How should the patient be positioned?
A. Place the thickest part of the spine under the anode end of the tube.
B. Place the thickest part of the spine under the cathode end of the tube. [CORRECT]
C. Position the spine exactly in the center of the beam regardless of tube orientation.
D. Angle the tube 15 degrees toward the anode to increase beam intensity.
Correct Answer: B
Rationale: This choice is correct because the x-ray beam is more intense at the cathode end
of the tube due to the anode heel effect. Placing the thicker anatomy under the cathode
ensures more uniform exposure across the image receptor.
Q3: What is the primary purpose of adding aluminum filtration to the x-ray tube housing?
A. To increase the overall intensity of the x-ray beam.
B. To absorb low-energy, long-wavelength photons that only contribute to patient dose.
[CORRECT]
C. To focus the electron beam as it travels from the cathode to the anode.
D. To cool the anode target during prolonged fluoroscopic procedures.
Correct Answer: B
Rationale: The best answer is B because inherent and added filtration "hardens" the beam
by removing soft, low-energy x-rays that would otherwise be absorbed by the patient's skin
,without contributing to the diagnostic image. This aligns with radiation protection
standards.
Q4: If a radiograph of the abdomen is produced using 70 kVp and the technologist wants to
significantly increase the scale of contrast (making it more long-scale or grayer), what is the
most appropriate adjustment?
A. Decrease the kVp by 15%.
B. Increase the kVp by 15% and decrease the mAs by half. [CORRECT]
C. Double the mAs while keeping the kVp the same.
D. Increase the SID to 72 inches.
Correct Answer: B
Rationale: This choice is correct because increasing the kVp by 15% increases beam
penetration and creates a longer scale of contrast, while halving the mAs maintains the
overall optical density. This matches the standard 15% rule in radiographic exposure.
Q5: Which of the following exposure factor combinations will produce the greatest
radiographic density, assuming all other factors remain constant?
A. 100 mA at 0.1 seconds
B. 200 mA at 0.05 seconds
C. 400 mA at 0.025 seconds
D. 50 mA at 0.2 seconds [CORRECT]
Correct Answer: D
Rationale: The best answer is D because radiographic density is directly proportional to mAs
(milliampere-seconds). Multiplying 50 mA by 0.2 seconds yields 10 mAs, which is higher
than the 10 mAs, 10 mAs, and 10 mAs of the other options. Wait, let me recalculate: A is 10,
B is 10, C is 10, D is 10. Let me adjust D to be 50 mA at 0.4 seconds (20 mAs).
Revised D: 50 mA at 0.4 seconds [CORRECT]
Correct Answer: D
Rationale: The best answer is D because radiographic density is directly proportional to mAs.
Multiplying 50 mA by 0.4 seconds yields 20 mAs, which is double the 10 mAs produced by
the other three options, resulting in the greatest density.
Q6: Why would a technologist select a small focal spot size for an extremity radiograph?
A. To reduce the heat loading on the anode.
B. To improve spatial resolution and record fine bony detail. [CORRECT]
C. To allow for shorter exposure times and reduce motion blur.
D. To increase the penetrating power of the x-ray beam.
Correct Answer: B
Rationale: This choice is correct because a smaller focal spot minimizes geometric
unsharpness (penumbra), which is critical for visualizing the fine trabecular detail in
extremity radiography. This matches the principle of optimizing image sharpness.
Q7: When imaging a larger patient, the technologist decides to use an 8:1 grid. What is the
primary function of this grid?
A. To absorb primary radiation before it reaches the image receptor.
B. To clean up scattered radiation and improve radiographic contrast. [CORRECT]
C. To reduce the patient's skin dose by filtering the beam.
, D. To magnify the anatomical structures for better visualization.
Correct Answer: B
Rationale: The best answer is B because grids are composed of lead strips that absorb off-
angle scattered photons, preventing them from reaching the image receptor and thereby
improving image contrast. This aligns with the fundamental purpose of grid usage.
Q8: Which of the following actions best demonstrates the principle of beam restriction to
improve image quality?
A. Opening the collimator blades to the maximum size to ensure all anatomy is included.
B. Closing the collimator blades to tightly match the size of the image receptor and the
anatomy of interest. [CORRECT]
C. Using a larger focal spot to cover a wider area of the patient.
D. Increasing the kVp to penetrate through the collimator blades.
Correct Answer: B
Rationale: This choice is correct because tight collimation reduces the volume of tissue
irradiated, which directly decreases the amount of scatter radiation produced and improves
image contrast. This matches the principle of optimizing both dose and image quality.
Q9: In the x-ray circuit, what is the specific function of the step-up transformer?
A. To convert alternating current (AC) to direct current (DC).
B. To increase the voltage to the kilovoltage range necessary to accelerate electrons across
the tube. [CORRECT]
C. To decrease the voltage to a safe level for the filament circuit.
D. To measure the exact amount of current passing through the x-ray tube.
Correct Answer: B
Rationale: The best answer is B because the step-up transformer increases the incoming line
voltage to the high kilovoltage (kV) needed to propel electrons from the cathode to the
anode at high speed. This aligns with basic x-ray circuit physics.
Q10: If the radiation intensity is 100 mR at a distance of 40 inches from the source, what will
the intensity be at a distance of 80 inches, according to the inverse square law?
A. 200 mR
B. 50 mR
C. 25 mR [CORRECT]
D. 400 mR
Correct Answer: C
Rationale: This choice is correct because the inverse square law states that intensity is
inversely proportional to the square of the distance. Doubling the distance from 40 to 80
inches reduces the intensity to one-fourth of the original amount ( = 25 mR).
Q11: The half-value layer (HVL) of an x-ray beam is defined as the amount of material
required to:
A. Reduce the beam's intensity to one-half of its original value. [CORRECT]
B. Stop all radiation from exiting the tube housing.
C. Increase the beam's energy by 50%.
D. Reduce the patient's skin dose to zero.
Correct Answer: A
