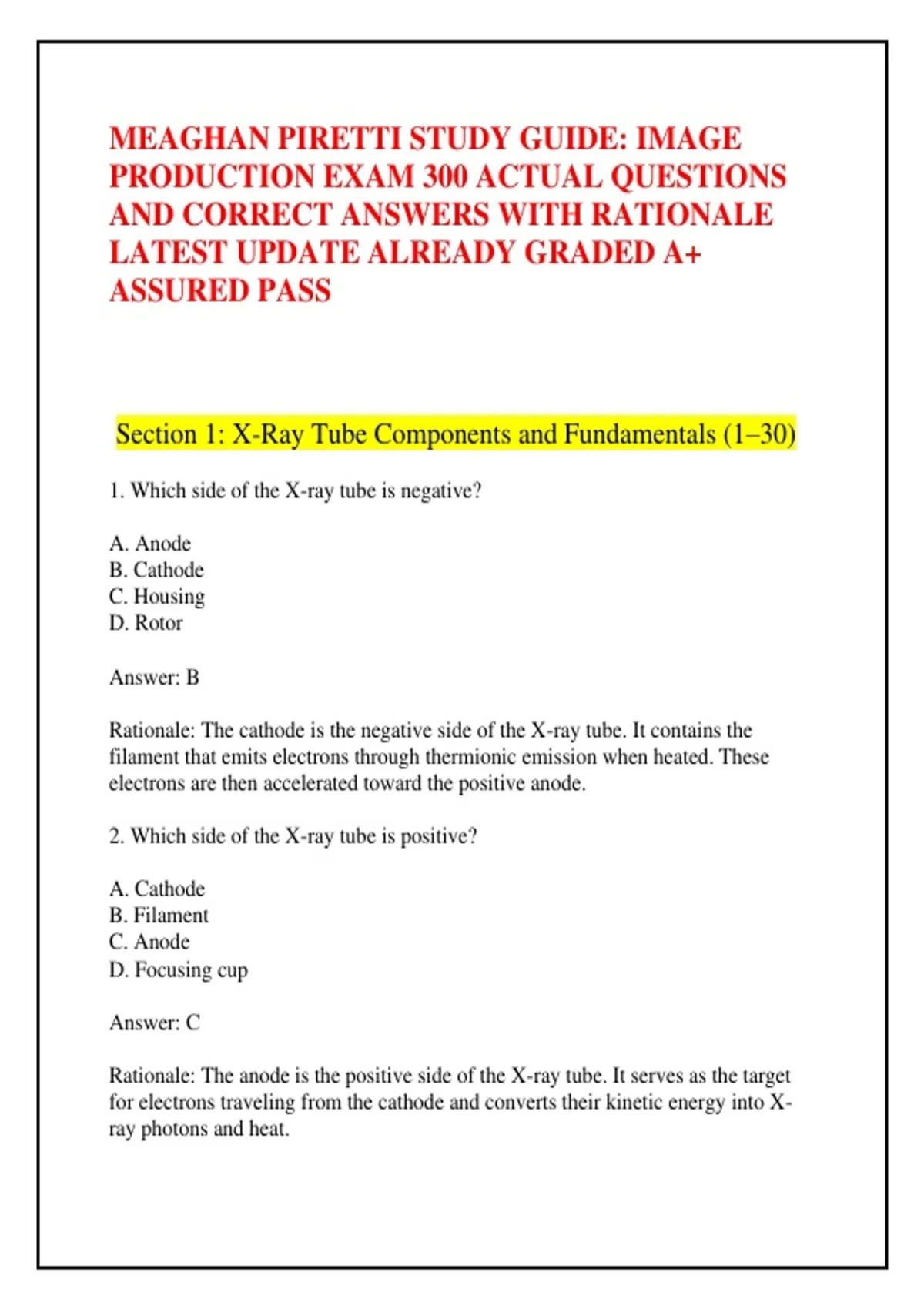

MEAGHAN PIRETTI STUDY GUIDE: IMAGE
PRODUCTION EXAM 300 ACTUAL QUESTIONS
AND CORRECT ANSWERS WITH RATIONALE
LATEST UPDATE ALREADY GRADED A+
ASSURED PASS
Section 1: X-Ray Tube Components and Fundamentals (1–30)
1. Which side of the X-ray tube is negative?
A. Anode
B. Cathode
C. Housing
D. Rotor
Answer: B
Rationale: The cathode is the negative side of the X-ray tube. It contains the
filament that emits electrons through thermionic emission when heated. These
electrons are then accelerated toward the positive anode.
2. Which side of the X-ray tube is positive?
A. Cathode
B. Filament
C. Anode
D. Focusing cup
Answer: C
Rationale: The anode is the positive side of the X-ray tube. It serves as the target
for electrons traveling from the cathode and converts their kinetic energy into X-
ray photons and heat.
,3. What is the role of the glass envelope?
A. To rotate the anode
B. To maintain the vacuum between the cathode and anode
C. To produce electrons
D. To absorb off-focus radiation
Answer: B
Rationale: The glass envelope creates a vacuum that allows electrons to travel
freely from the cathode to the anode without interacting with air molecules. If gas
molecules were present, they would impede electron flow and reduce X-ray
production efficiency.
4. What is the role of the tube housing?
A. To produce X-rays
B. To focus the electron beam
C. To support and protect the tube, restrict leakage, and provide insulation
D. To rotate the anode
Answer: C
Rationale: The tube housing is the outer protective casing that prevents X-rays
from being emitted throughout the exam room, provides electrical insulation, and
physically protects the delicate glass envelope. It contains lead lining to absorb off-
focus radiation.
5. Which end of the tube has the filament and focusing cup?
A. Anode
B. Cathode
C. Housing
D. Stator
Answer: B
Rationale: The cathode end of the X-ray tube contains the filament (which
produces electrons when heated) and the focusing cup (which directs the electron
,stream toward the anode target). The focusing cup is made of molybdenum or
nickel.
6. What are the two types of anodes?
A. Fixed and mobile
B. Stationary and rotating
C. Positive and negative
D. Primary and secondary
Answer: B
Rationale: Stationary anodes are used in dental and portable units where heat
loading is low. Rotating anodes are used in general radiography and fluoroscopy to
spread heat over a larger area, extending tube life.
7. What is the anode made of?
A. Copper and aluminum
B. Tungsten and rhenium
C. Molybdenum and nickel
D. Lead and steel
Answer: B
Rationale: Tungsten has a high atomic number (74) and high melting point, making
it ideal for X-ray production. Rhenium is added to prevent cracking of the anode
disk from repeated thermal stress.
8. Why is tungsten used as a target material?
A. It is inexpensive
B. It has a high atomic number and high melting point
C. It is easy to shape
D. It conducts electricity poorly
Answer: B
, Rationale: Tungsten's high atomic number increases the probability of X-ray
production via Bremsstrahlung interactions. Its high melting point (3422°C) allows
it to withstand the intense heat generated during exposures without melting.
9. What is the stator?
A. A rotating anode component
B. A magnetic motor that induces the rotor at high speed
C. A type of filament
D. A focusing cup material
Answer: B
Rationale: The stator is the stationary part of the induction motor located outside
the glass envelope. When energized, it creates a rotating magnetic field that turns
the rotor, which spins the anode disc.
10. What does the rotor do?
A. Focuses the electron beam
B. Rotates the anode
C. Produces electrons
D. Absorbs heat
Answer: B
Rationale: The rotor rotates the anode during exposure to spread heat over a larger
area of the anode surface.
11. What do bearings do in the X-ray tube?
A. Produce electrons
B. Focus the electron beam
C. Provide low-friction spheres that allow rotation for the motor
D. Absorb radiation
Answer: C
Rationale: Bearings are low-friction spheres that allow for rotation of the anode
assembly for the motor.
