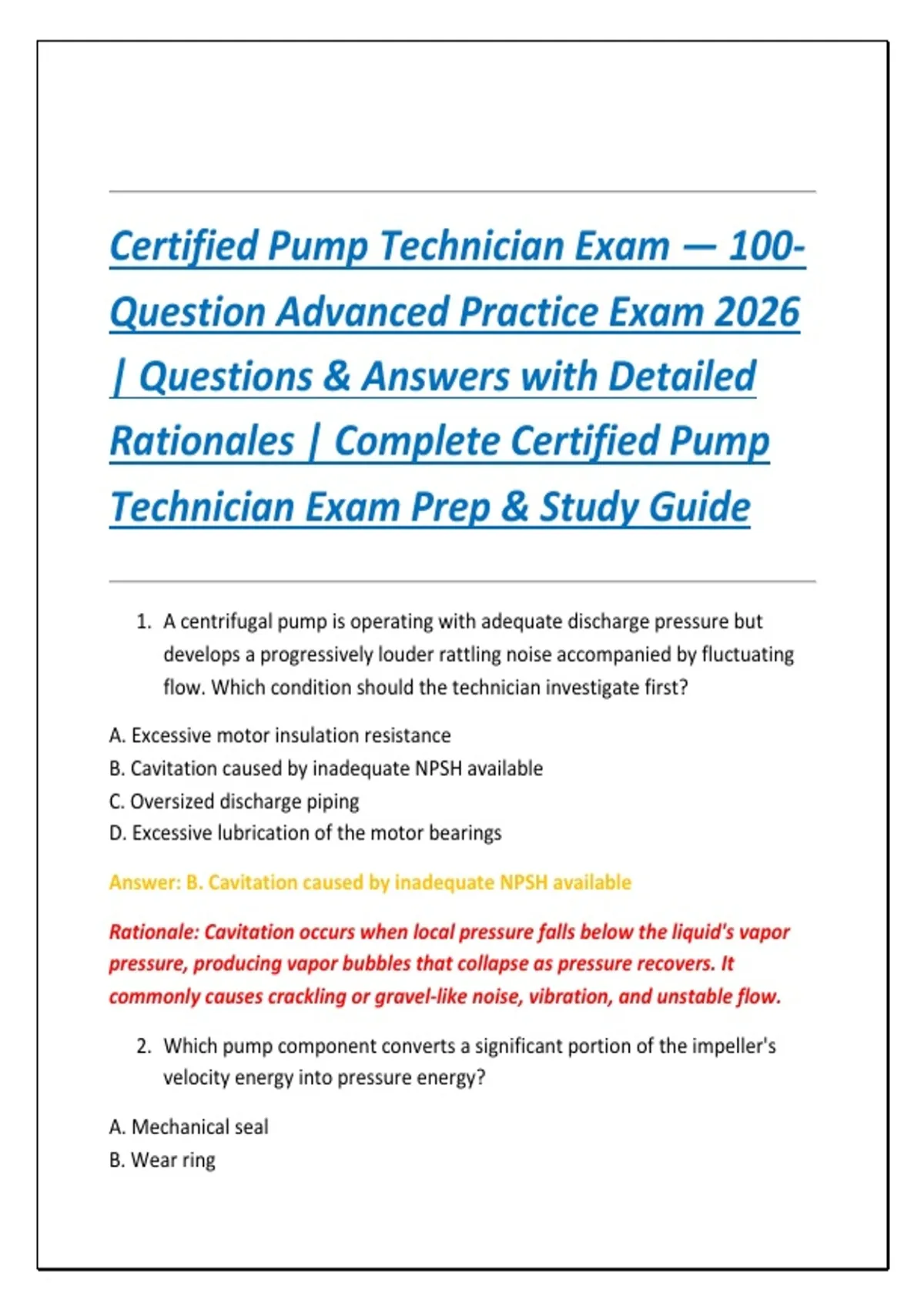

Certified Pump Technician Exam — 100-
Question Advanced Practice Exam 2026
| Questions & Answers with Detailed
Rationales | Complete Certified Pump
Technician Exam Prep & Study Guide
1. A centrifugal pump is operating with adequate discharge pressure but
develops a progressively louder rattling noise accompanied by fluctuating
flow. Which condition should the technician investigate first?
A. Excessive motor insulation resistance
B. Cavitation caused by inadequate NPSH available
C. Oversized discharge piping
D. Excessive lubrication of the motor bearings
Answer: B. Cavitation caused by inadequate NPSH available
Rationale: Cavitation occurs when local pressure falls below the liquid's vapor
pressure, producing vapor bubbles that collapse as pressure recovers. It
commonly causes crackling or gravel-like noise, vibration, and unstable flow.
2. Which pump component converts a significant portion of the impeller's
velocity energy into pressure energy?
A. Mechanical seal
B. Wear ring
,C. Volute or diffuser
D. Shaft sleeve
Answer: C. Volute or diffuser
Rationale: The volute or diffuser slows the fluid leaving the impeller and
converts velocity head into static pressure.
3. A centrifugal pump has a suction pressure of 2 psig and a discharge
pressure of 52 psig. If the fluid has a specific gravity of 1.0, approximately
what pressure differential does the pump develop?
A. 25 psi
B. 50 psi
C. 52 psi
D. 54 psi
Answer: B. 50 psi
Rationale: Pump differential pressure is discharge pressure minus suction
pressure: 52 − 2 = 50 psi.
4. What is the primary purpose of a pump wear ring?
A. Increase motor speed
B. Provide controlled clearance between rotating and stationary components
C. Prevent motor overheating
D. Lubricate the impeller shaft
Answer: B. Provide controlled clearance between rotating and stationary
components
Rationale: Wear rings limit internal leakage between high- and low-pressure
regions while providing a replaceable wear surface.
5. A pump shaft is bent beyond the manufacturer's allowable tolerance. What
is the most likely consequence?
,A. Improved hydraulic efficiency
B. Reduced electrical current
C. Increased vibration and seal/bearing problems
D. Increased NPSH available
Answer: C. Increased vibration and seal/bearing problems
Rationale: A bent shaft creates eccentric rotation that can produce vibration,
uneven bearing loading, coupling problems, and premature mechanical-seal
failure.
6. Which instrument is most appropriate for measuring vibration amplitude
on a pump bearing housing?
A. Megohmmeter
B. Vibration analyzer
C. Hydrometer
D. Manometer
Answer: B. Vibration analyzer
Rationale: Vibration analyzers measure vibration amplitude and, in advanced
applications, frequency and phase information used for condition monitoring.
7. A centrifugal pump is rotating in the wrong direction after motor
replacement. What should the technician expect?
A. Normal operation with slightly higher efficiency
B. Increased head and reduced power
C. Reduced performance and potentially damaging hydraulic conditions
D. Automatic correction by the impeller
Answer: C. Reduced performance and potentially damaging hydraulic conditions
Rationale: Centrifugal pumps are designed for a specific rotation direction.
Reverse rotation generally produces poor flow and head and may damage
components.
, 8. Which condition most directly reduces NPSH available?
A. Increasing liquid temperature
B. Increasing atmospheric pressure
C. Increasing suction pressure
D. Lowering liquid vapor pressure
Answer: A. Increasing liquid temperature
Rationale: Higher liquid temperature increases vapor pressure, reducing the
margin between suction pressure and vapor pressure and therefore reducing
NPSH available.
9. What is the primary function of a mechanical seal?
A. Increase pump speed
B. Prevent leakage along the rotating shaft
C. Increase impeller diameter
D. Reduce motor voltage
Answer: B. Prevent leakage along the rotating shaft
Rationale: Mechanical seals create a controlled sealing interface around the
shaft or shaft sleeve to limit process-fluid leakage.
10.A pump bearing repeatedly fails shortly after replacement. Which condition
should be investigated before simply installing another bearing?
A. Paint thickness
B. Shaft alignment and lubrication condition
C. Pump color
D. Discharge pipe insulation
Answer: B. Shaft alignment and lubrication condition
Rationale: Misalignment, improper lubrication, contamination, excessive loads,
and installation errors are common causes of repeated bearing failure.
