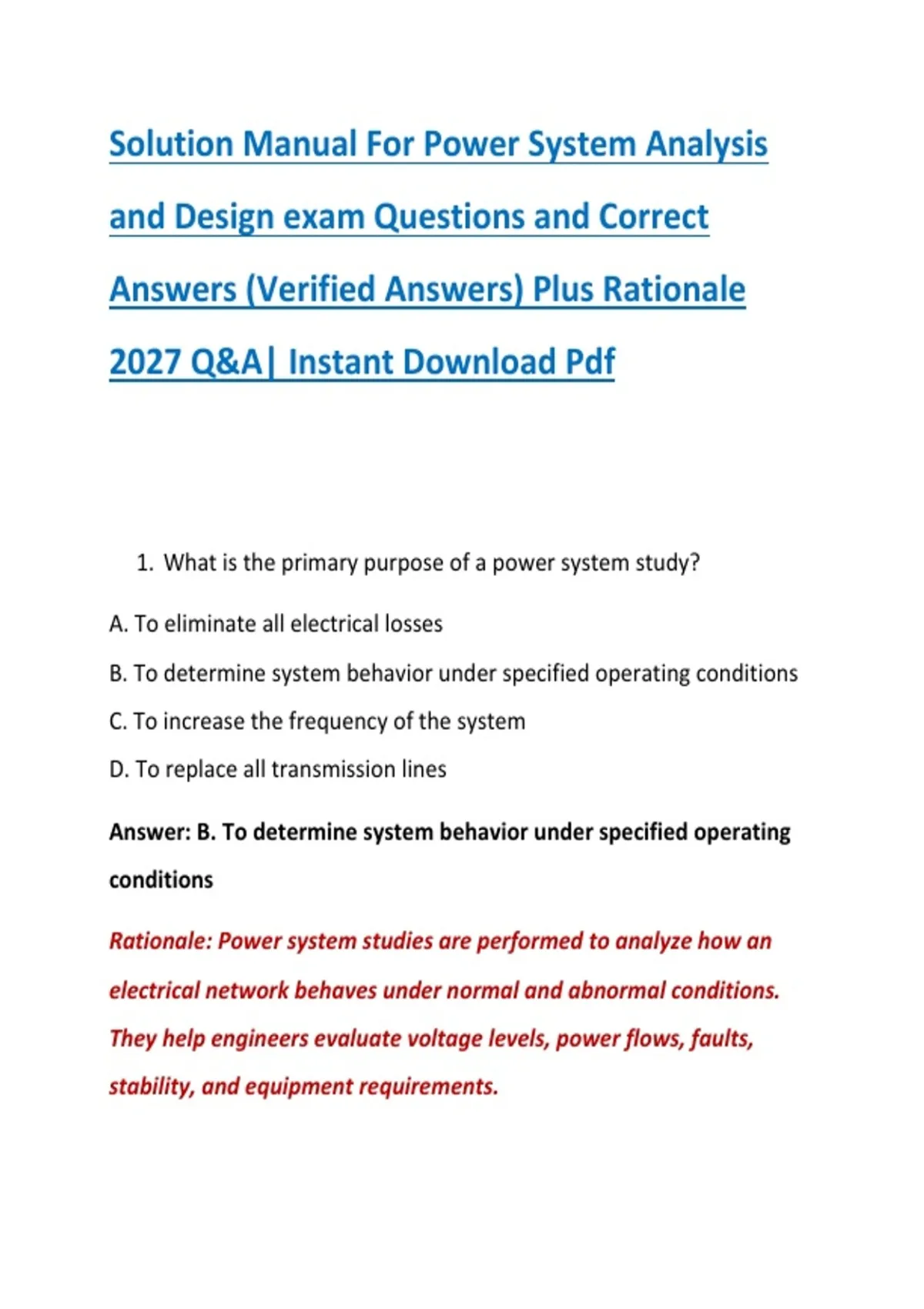

Solution Manual For Power System Analysis
and Design exam Questions and Correct
Answers (Verified Answers) Plus Rationale
2027 Q&A| Instant Download Pdf
1. What is the primary purpose of a power system study?
A. To eliminate all electrical losses
B. To determine system behavior under specified operating conditions
C. To increase the frequency of the system
D. To replace all transmission lines
Answer: B. To determine system behavior under specified operating
conditions
Rationale: Power system studies are performed to analyze how an
electrical network behaves under normal and abnormal conditions.
They help engineers evaluate voltage levels, power flows, faults,
stability, and equipment requirements.
, 2. Which component is primarily responsible for converting
mechanical energy into electrical energy in a power system?
A. Transformer
B. Circuit breaker
C. Generator
D. Capacitor
Answer: C. Generator
Rationale: A generator converts mechanical input energy into
electrical energy through electromagnetic induction. Generators are
the principal sources of electrical power in conventional power
systems.
3. In a balanced three-phase system, the phase angles between the
three phase voltages are separated by:
A. 60°
B. 90°
C. 120°
D. 180°
Answer: C. 120°
Rationale: The three sinusoidal phase voltages in a balanced three-
phase system have equal magnitudes and are displaced by 120
,electrical degrees from one another. This arrangement enables
efficient transmission of three-phase power.
4. What is the main function of a power transformer in a
transmission system?
A. To generate electrical power
B. To change voltage levels
C. To control system frequency
D. To eliminate reactive power
Answer: B. To change voltage levels
Rationale: Transformers transfer electrical energy between circuits
through electromagnetic induction while changing voltage and
current levels. Step-up transformers raise voltage for transmission,
while step-down transformers reduce voltage for distribution and
utilization.
5. The per-unit system is particularly useful in power system analysis
because it:
A. Eliminates the need for circuit laws
B. Simplifies calculations involving different voltage levels
C. Prevents transmission losses
D. Makes all currents equal
, Answer: B. Simplifies calculations involving different voltage levels
Rationale: Per-unit normalization places electrical quantities on
common bases. This greatly simplifies transformer calculations and
allows impedances and other quantities from different voltage levels
to be compared directly.
6. Which quantity is normally selected as one of the base quantities
in a per-unit system?
A. Base resistance only
B. Base power
C. Base frequency only
D. Base temperature
Answer: B. Base power
Rationale: Apparent power and voltage are commonly selected as
independent base quantities. Base current and base impedance can
then be calculated from these selected values.
7. The relationship between apparent power, voltage, and current in
a balanced three-phase system is:
A. S = VI
B. S = 2VI
and Design exam Questions and Correct
Answers (Verified Answers) Plus Rationale
2027 Q&A| Instant Download Pdf
1. What is the primary purpose of a power system study?
A. To eliminate all electrical losses
B. To determine system behavior under specified operating conditions
C. To increase the frequency of the system
D. To replace all transmission lines
Answer: B. To determine system behavior under specified operating
conditions
Rationale: Power system studies are performed to analyze how an
electrical network behaves under normal and abnormal conditions.
They help engineers evaluate voltage levels, power flows, faults,
stability, and equipment requirements.
, 2. Which component is primarily responsible for converting
mechanical energy into electrical energy in a power system?
A. Transformer
B. Circuit breaker
C. Generator
D. Capacitor
Answer: C. Generator
Rationale: A generator converts mechanical input energy into
electrical energy through electromagnetic induction. Generators are
the principal sources of electrical power in conventional power
systems.
3. In a balanced three-phase system, the phase angles between the
three phase voltages are separated by:
A. 60°
B. 90°
C. 120°
D. 180°
Answer: C. 120°
Rationale: The three sinusoidal phase voltages in a balanced three-
phase system have equal magnitudes and are displaced by 120
,electrical degrees from one another. This arrangement enables
efficient transmission of three-phase power.
4. What is the main function of a power transformer in a
transmission system?
A. To generate electrical power
B. To change voltage levels
C. To control system frequency
D. To eliminate reactive power
Answer: B. To change voltage levels
Rationale: Transformers transfer electrical energy between circuits
through electromagnetic induction while changing voltage and
current levels. Step-up transformers raise voltage for transmission,
while step-down transformers reduce voltage for distribution and
utilization.
5. The per-unit system is particularly useful in power system analysis
because it:
A. Eliminates the need for circuit laws
B. Simplifies calculations involving different voltage levels
C. Prevents transmission losses
D. Makes all currents equal
, Answer: B. Simplifies calculations involving different voltage levels
Rationale: Per-unit normalization places electrical quantities on
common bases. This greatly simplifies transformer calculations and
allows impedances and other quantities from different voltage levels
to be compared directly.
6. Which quantity is normally selected as one of the base quantities
in a per-unit system?
A. Base resistance only
B. Base power
C. Base frequency only
D. Base temperature
Answer: B. Base power
Rationale: Apparent power and voltage are commonly selected as
independent base quantities. Base current and base impedance can
then be calculated from these selected values.
7. The relationship between apparent power, voltage, and current in
a balanced three-phase system is:
A. S = VI
B. S = 2VI
