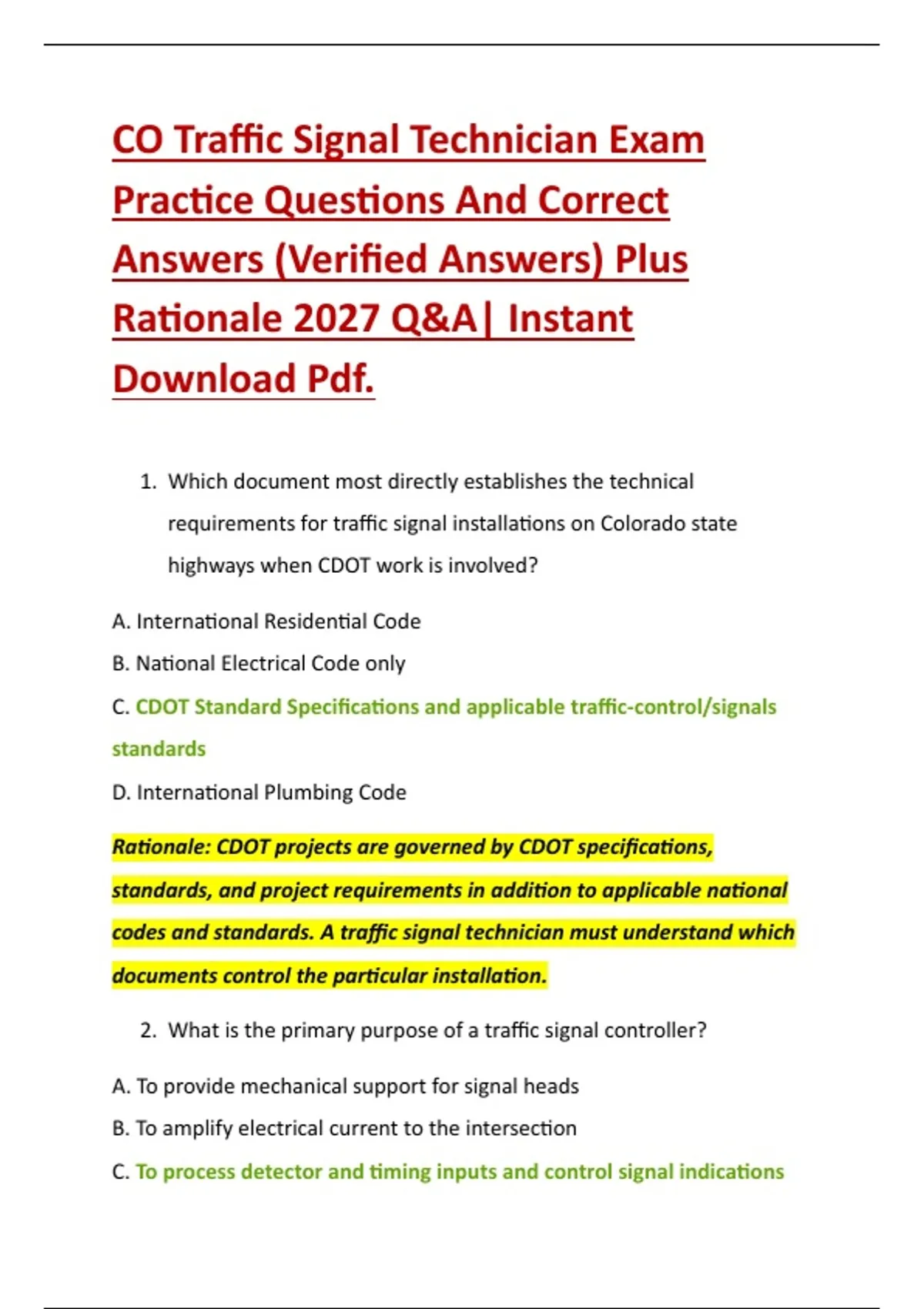

CO Traffic Signal Technician Exam
Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant
Download Pdf.
1. Which document most directly establishes the technical
requirements for traffic signal installations on Colorado state
highways when CDOT work is involved?
A. International Residential Code
B. National Electrical Code only
C. CDOT Standard Specifications and applicable traffic-control/signals
standards
D. International Plumbing Code
Rationale: CDOT projects are governed by CDOT specifications,
standards, and project requirements in addition to applicable national
codes and standards. A traffic signal technician must understand which
documents control the particular installation.
2. What is the primary purpose of a traffic signal controller?
A. To provide mechanical support for signal heads
B. To amplify electrical current to the intersection
C. To process detector and timing inputs and control signal indications
,according to programmed logic
D. To regulate utility-company voltage
Rationale: The controller is the central logic device of a signalized
intersection. It receives inputs such as vehicle and pedestrian detection
and determines when compatible signal indications are displayed.
3. In a conventional traffic signal, what does a red indication normally
require a motorist facing that indication to do?
A. Proceed if no pedestrians are present
B. Slow down and proceed without stopping
C. Proceed unless opposing traffic is visible
D. Stop at the appropriate location and remain stopped until movement
is permitted
Rationale: A steady red indication requires traffic to stop, subject to
applicable traffic laws governing permitted movements such as turning
after stopping when legally allowed.
4. What is the principal function of a traffic signal conflict monitor or
malfunction management unit?
A. Increase lamp brightness
B. Store traffic-count data only
C. Detect unsafe signal combinations or certain controller malfunctions
and place the intersection into a predetermined safe condition
D. Provide backup power to all intersection equipment
,Rationale: Conflict monitoring equipment helps prevent dangerous
combinations, such as conflicting green indications, by monitoring signal
outputs and initiating malfunction operation when specified faults
occur.
5. A technician discovers that the green indication for one approach is
energized simultaneously with the conflicting green indication.
What should be considered the highest priority?
A. Adjusting the pedestrian timing
B. Cleaning the signal lens
C. Recording the traffic volume
D. Taking immediate corrective action to eliminate the unsafe conflict
and place the intersection in a safe operating condition
Rationale: Conflicting green indications create an immediate collision
hazard. Safety-critical signal conflicts must be treated as an urgent
malfunction rather than as a routine maintenance issue.
6. What is the main purpose of a vehicle detector at a signalized
intersection?
A. To measure cabinet temperature
B. To provide electrical grounding
C. To detect the presence or passage of vehicles and provide an input to
the signal controller
D. To illuminate pedestrian push buttons
, Rationale: Vehicle detectors supply information about traffic demand.
The controller can use that information to call phases, extend green
time, or operate traffic-responsive timing.
7. Which detector technology commonly uses a loop of wire installed
in or beneath the roadway pavement?
A. Microwave radar only
B. Video detection only
C. Ultrasonic detection only
D. Inductive-loop detection
Rationale: An inductive loop consists of insulated conductors installed in
a pavement slot and connected to a detector amplifier. A vehicle's metal
mass changes the electromagnetic characteristics of the loop circuit.
8. If an inductive-loop detector remains continuously occupied even
when no vehicle is present, what is a likely troubleshooting
concern?
A. Excessive pedestrian clearance time
B. A loop, lead-in, detector amplifier, or associated wiring fault
C. Incorrect signal-head visor orientation only
D. A burned pedestrian lamp
Rationale: A constant detector call can result from loop damage,
insulation problems, short circuits, lead-in faults, or detector-unit
problems. Systematic testing is required to identify the cause.
