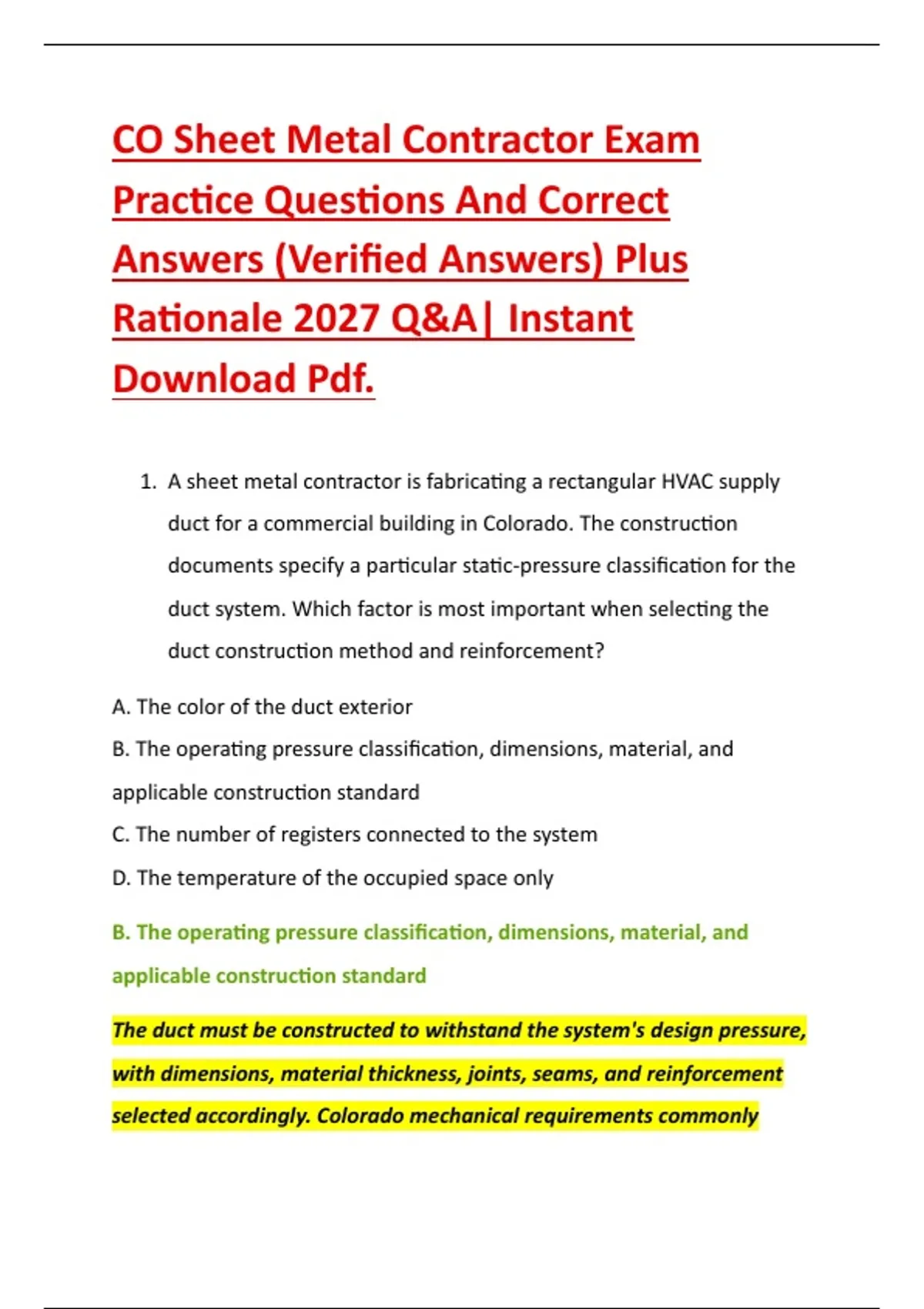

CO Sheet Metal Contractor Exam
Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant
Download Pdf.
1. A sheet metal contractor is fabricating a rectangular HVAC supply
duct for a commercial building in Colorado. The construction
documents specify a particular static-pressure classification for the
duct system. Which factor is most important when selecting the
duct construction method and reinforcement?
A. The color of the duct exterior
B. The operating pressure classification, dimensions, material, and
applicable construction standard
C. The number of registers connected to the system
D. The temperature of the occupied space only
B. The operating pressure classification, dimensions, material, and
applicable construction standard
The duct must be constructed to withstand the system's design pressure,
with dimensions, material thickness, joints, seams, and reinforcement
selected accordingly. Colorado mechanical requirements commonly
,reference recognized duct-construction standards such as SMACNA for
metallic ductwork.
2. When fabricating a rectangular galvanized-steel duct, what is the
primary purpose of transverse reinforcement?
A. To improve the appearance of the duct
B. To reduce the duct's airflow resistance to zero
C. To prevent excessive panel deflection and maintain structural integrity
under pressure
D. To eliminate the need for longitudinal seams
C. To prevent excessive panel deflection and maintain structural
integrity under pressure
Transverse reinforcement increases the stiffness of rectangular duct
panels and helps the duct resist pressure-induced deformation,
vibration, and possible failure.
3. A duct system is designed to operate at a static pressure of 2.5
inches water gauge. Which statement best describes the required
construction approach?
A. The duct can automatically be treated as a low-pressure residential
duct
B. The duct should be constructed for a pressure classification equal to or
greater than its design pressure
C. The duct may use any thickness if the joints are painted
,D. The duct requires no reinforcement because it is below 3 inches water
gauge
B. The duct should be constructed for a pressure classification equal to
or greater than its design pressure
The pressure classification of the duct must meet or exceed the
operating design pressure so that the duct system can safely contain the
intended pressure without unacceptable leakage or deformation.
4. What is the principal reason for properly sealing duct joints and
seams?
A. To increase the weight of the duct
B. To prevent conditioned air leakage and improve system efficiency
C. To make the duct easier to remove
D. To eliminate the need for hangers
B. To prevent conditioned air leakage and improve system efficiency
Properly sealed joints and seams reduce air leakage, helping the HVAC
system deliver the designed airflow while minimizing wasted fan energy
and conditioned air.
5. Which material is most commonly identified by the term
“galvanized sheet metal” in HVAC duct fabrication?
A. Carbon steel coated with zinc
B. Copper coated with aluminum
C. Aluminum coated with copper
D. Stainless steel coated with lead
, A. Carbon steel coated with zinc
Galvanized steel is generally steel coated with zinc to provide corrosion
resistance while retaining the structural characteristics needed for duct
fabrication.
6. A contractor must connect two rectangular galvanized-steel duct
sections. Which consideration should receive the greatest attention
when selecting the connection method?
A. Whether the connection is compatible with the specified pressure class
and duct construction requirements
B. Whether the connection matches the building's interior paint
C. Whether the connection adds decorative trim
D. Whether the connection eliminates all reinforcement
A. Whether the connection is compatible with the specified pressure
class and duct construction requirements
Duct connections must provide adequate mechanical strength and air
tightness for the system's pressure classification and construction
requirements.
7. What is the primary function of a duct turning vane installed inside
a rectangular elbow?
A. To increase electrical voltage
B. To reduce turbulence and improve airflow through the elbow
C. To prevent condensation on the exterior
D. To replace duct insulation
