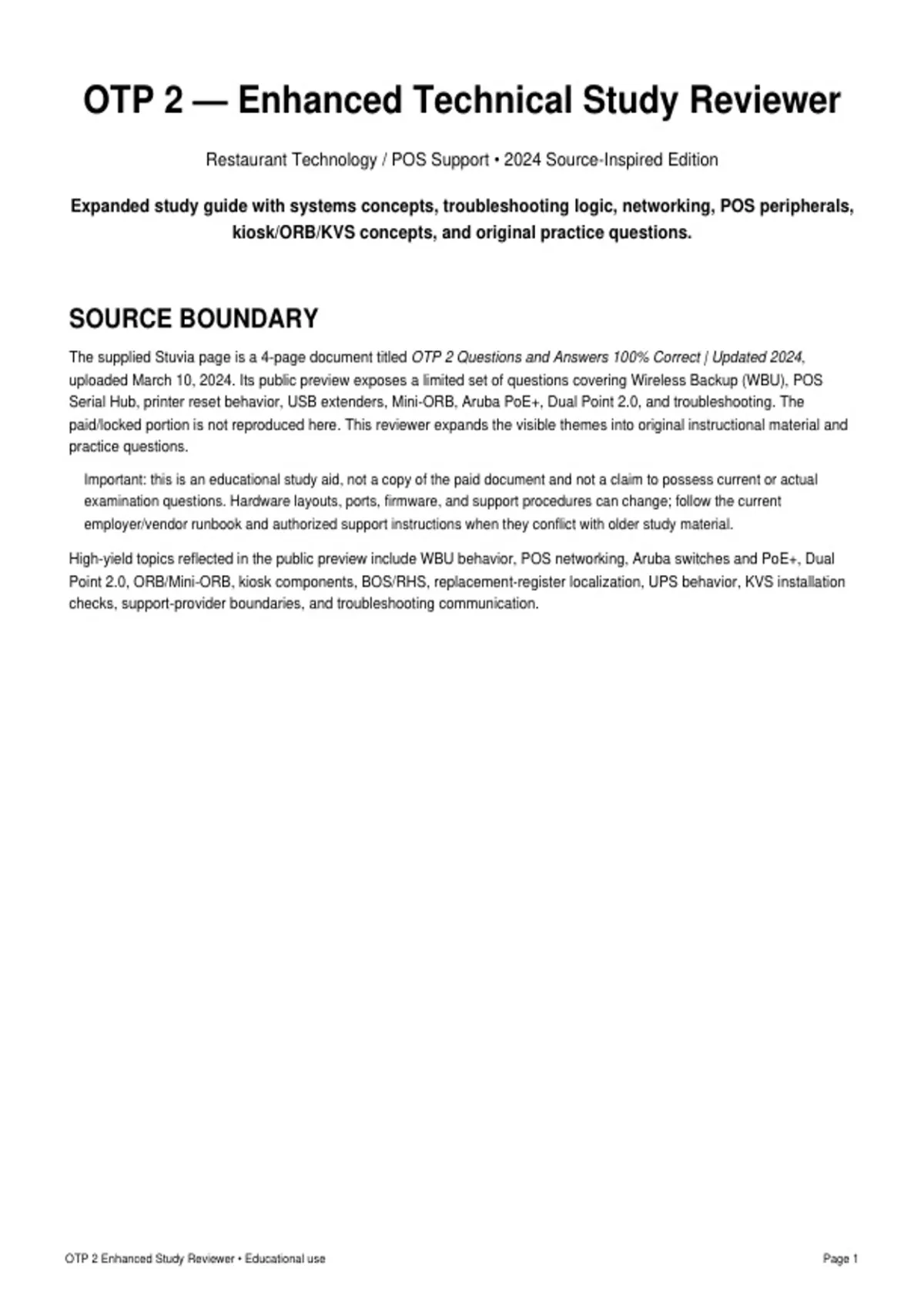

OTP 2 — Enhanced Technical Study Reviewer
Restaurant Technology / POS Support • 2024 Source-Inspired Edition
Expanded study guide with systems concepts, troubleshooting logic, networking, POS peripherals,
kiosk/ORB/KVS concepts, and original practice questions.
SOURCE BOUNDARY
The supplied Stuvia page is a 4-page document titled OTP 2 Questions and Answers 100% Correct | Updated 2024,
uploaded March 10, 2024. Its public preview exposes a limited set of questions covering Wireless Backup (WBU), POS
Serial Hub, printer reset behavior, USB extenders, Mini-ORB, Aruba PoE+, Dual Point 2.0, and troubleshooting. The
paid/locked portion is not reproduced here. This reviewer expands the visible themes into original instructional material and
practice questions.
Important: this is an educational study aid, not a copy of the paid document and not a claim to possess current or actual
examination questions. Hardware layouts, ports, firmware, and support procedures can change; follow the current
employer/vendor runbook and authorized support instructions when they conflict with older study material.
High-yield topics reflected in the public preview include WBU behavior, POS networking, Aruba switches and PoE+, Dual
Point 2.0, ORB/Mini-ORB, kiosk components, BOS/RHS, replacement-register localization, UPS behavior, KVS installation
checks, support-provider boundaries, and troubleshooting communication.
OTP 2 Enhanced Study Reviewer • Educational use Page 1
,1. OTP 2 Master Map
Think of OTP 2 as a layered support problem rather than a memorization test. A restaurant technology environment normally
has five interacting layers: 1) power and physical connectivity; 2) network infrastructure; 3) servers/controllers and
applications; 4) endpoints and peripherals; and 5) operational workflow. A symptom at one layer can be caused by another.
A register that cannot reach a service may have an application problem, but it may also have a bad cable, switch-port issue,
power issue, or upstream service outage.
Exam lens: Separate symptom, component, location, function, and approved action. A question can be difficult simply
because two answers belong to different categories.
2. Power, UPS, and Safe Recovery
Power problems are often the fastest way to distinguish a local device failure from a broader outage. A UPS can temporarily
support connected equipment during a power interruption, but its runtime depends on load, battery condition, configuration,
and age. The public preview associates the restaurant setup with approximately 30 minutes of UPS backup; treat that as a
study-point from the source, not a universal engineering specification. Do not use repeated unplugging as a default
troubleshooting strategy. Uncontrolled power cycling can interrupt writes, damage equipment, or obscure the original
symptom. Use the approved reboot/recovery procedure, verify power indicators, and escalate when the runbook requires it.
3. Network 2.0 Fundamentals
A network switch provides local connectivity between devices. A gateway/controller commonly connects the restaurant
network toward an upstream internet/WAN service. Ethernet cabling and patch panels create the physical path. PoE allows
compatible devices to receive power over Ethernet as well as data. The supplied preview and related 2024/2025 material
identify Aruba switching, an Aruba gateway/controller, a POS Serial Hub, RHS, Biscuit Boxes, and designated switch ports.
Memorize topology only together with the current site diagram because port assignments are configuration-specific.
Exam lens: Separate symptom, component, location, function, and approved action. A question can be difficult simply
because two answers belong to different categories.
4. Aruba Switch and PoE+ Concepts
PoE is useful because a compatible endpoint can receive electrical power through the network cable. The public source
states that all ports on the referenced Aruba switch provide PoE/PoE+. In real deployments, verify the exact switch model,
port configuration, power budget, and device compatibility before assuming a port will power an endpoint. Exam logic: if a
question asks what PoE changes, think power delivery over Ethernet, not faster internet. If a device is completely dark,
check power path first; if it has power but no network function, move to link/activity and configuration.
5. POS Serial Hub and Register Connectivity
The POS Serial Hub is a specialized connectivity component in the referenced restaurant topology. The public preview
states that it does not connect to Switch #1, while later related study material places it on a designated port of Switch #2.
The exact port should be verified against the current topology diagram rather than generalized to every restaurant. A strong
troubleshooting sequence is: identify the affected device, verify physical connection, verify link/activity, check the correct
network path, then validate application behavior. Avoid changing multiple cables or settings simultaneously because doing
so destroys useful diagnostic information.
6. Biscuit Boxes and Structured Cabling
The public material identifies the box under the front counter where the patch cable connects as a Biscuit Box. Related
material also references Biscuit Boxes inside kiosk housing and color-coded jacks. The key concept is structured cabling:
the visible endpoint is only one part of a chain that may include a patch cable, wall/jack termination, switch, controller, and
OTP 2 Enhanced Study Reviewer • Educational use Page 2
, endpoint. When tracing a cable, document both ends before moving anything. A correct physical connection is not enough if
it terminates in the wrong port or VLAN/path.
7. Dual Point 2.0
Dual Point 2.0 uses local and remote USB-extender components to support peripheral connectivity. The public preview
states that the Local USB Extender is not located at the Front Counter and that the Remote USB Extender is located there.
The Mini-ORB is described as a backup to the barcode scanner rather than the primary method of serving orders from the
ORB. Study the distinction between location, connection, and purpose. Many technical questions are designed to make
these categories easy to confuse.
8. ORB and Mini-ORB Workflow
The ORB-related material distinguishes normal order serving from backup operation. The Mini-ORB is not the primary form
of serving orders from the ORB in the supplied study material; it functions as a backup for barcode-scanning workflow. A
useful troubleshooting question is therefore: is the primary path failing, and does the approved backup path restore service?
Do not treat a backup device as automatically interchangeable with the primary device. Confirm what function is actually
being backed up and whether the current operational procedure permits the fallback.
9. Kiosk, PED, and Pairing Logic
The public preview and related material identify the PED as a device that is not directly connected to the register in the
described configuration. Kiosk pairing can involve a temporary pairing code; related study material gives a two-minute
window for entering the code. Again, this is configuration-specific and should be checked against current procedures. When
troubleshooting pairing, separate three questions: is the kiosk powered, is it on the expected network, and is the pairing
transaction being completed within the permitted workflow? A pairing failure does not automatically mean the PED hardware
is defective.
10. KVS Controllers and Kitchen Display/Printer Paths
KVS controllers form part of the kitchen/order-display ecosystem. Related material states that after installing a KVS
controller, verification is required rather than assuming installation alone proves success. Verification should include power,
network connectivity, correct device identity/configuration, expected display or printer behavior, and end-to-end order flow.
When several kitchen endpoints fail together, suspect a shared upstream dependency before replacing individual
peripherals.
11. BOS, RHS, and Manager-Office Infrastructure
The BOS and RHS are central components in the referenced topology. Related study material associates the BOS with
applications such as C&I; and describes Waystation as enabling POS devices to communicate with each other and the
BOS. The RHS is associated with a designated switch connection. For exam purposes, distinguish a server/application role
from a physical networking role. A device can be reachable while a particular application is unavailable, and an application
can appear broken because the underlying network path is down.
12. Software and Configuration
Manager configuration tools, register configuration, Waystation, and other applications can change the behavior of
endpoints. The public preview includes a question about configuring CODs through Manager DT Options and related
material references NewPOS and Waystation. Configuration troubleshooting should be evidence-driven: identify the exact
setting, compare with the approved baseline, make one controlled change, then validate. Never change a production
configuration merely because it seems plausible.
OTP 2 Enhanced Study Reviewer • Educational use Page 3
