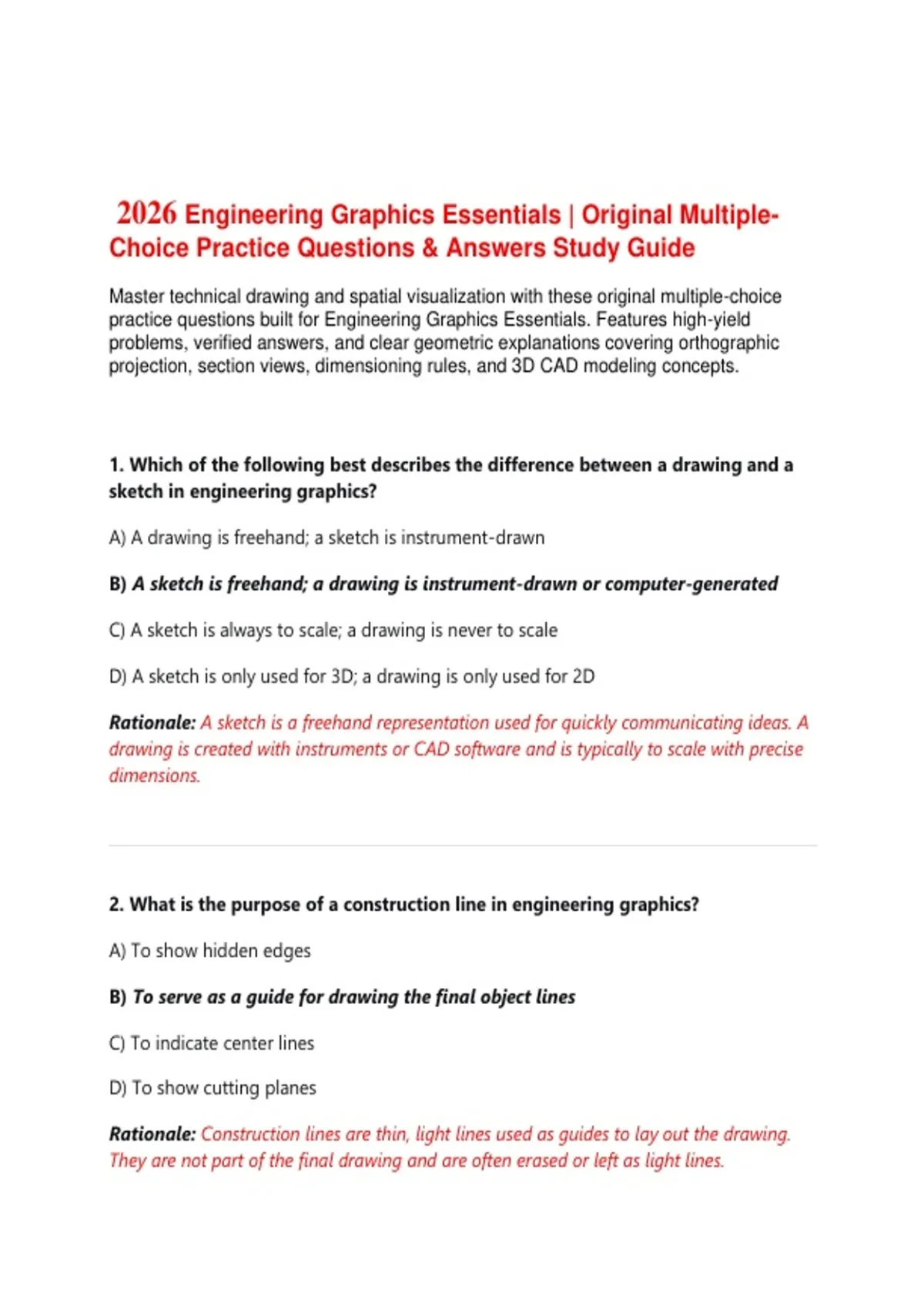

2026 Engineering Graphics Essentials | Original Multiple-
Choice Practice Questions & Answers Study Guide
Master technical drawing and spatial visualization with these original multiple-choice
practice questions built for Engineering Graphics Essentials. Features high-yield
problems, verified answers, and clear geometric explanations covering orthographic
projection, section views, dimensioning rules, and 3D CAD modeling concepts.
1. Which of the following best describes the difference between a drawing and a
sketch in engineering graphics?
A) A drawing is freehand; a sketch is instrument-drawn
B) A sketch is freehand; a drawing is instrument-drawn or computer-generated
C) A sketch is always to scale; a drawing is never to scale
D) A sketch is only used for 3D; a drawing is only used for 2D
Rationale: A sketch is a freehand representation used for quickly communicating ideas. A
drawing is created with instruments or CAD software and is typically to scale with precise
dimensions.
2. What is the purpose of a construction line in engineering graphics?
A) To show hidden edges
B) To serve as a guide for drawing the final object lines
C) To indicate center lines
D) To show cutting planes
Rationale: Construction lines are thin, light lines used as guides to lay out the drawing.
They are not part of the final drawing and are often erased or left as light lines.
,3. What is the standard width for a thick object line in engineering drawings?
A) 0.1 mm
B) 0.6 mm
C) 1.0 mm
D) 2.0 mm
Rationale: The standard width for thick object lines (visible lines) is approximately 0.6
mm (0.024 inch). Thin lines are approximately 0.3 mm.
4. What is the standard width for a thin line in engineering drawings?
A) 0.3 mm
B) 0.6 mm
C) 0.9 mm
D) 1.2 mm
Rationale: Thin lines (hidden lines, center lines, dimension lines) are approximately 0.3
mm (0.012 inch) wide. Thick lines are approximately 0.6 mm.
5. What is the recommended length for dashes in a hidden line?
A) 1/16 inch
B) 1/8 inch
C) 1/4 inch
D) 1/2 inch
,Rationale: Hidden line dashes are typically 1/8 inch long with 1/16 inch gaps. The dashes
should be uniform in length and spacing.
6. What is the recommended gap between dashes in a hidden line?
A) 1/32 inch
B) 1/16 inch
C) 1/8 inch
D) 1/4 inch
Rationale: The gap between hidden line dashes is typically 1/16 inch. The dash-to-gap
ratio is usually 2:1.
7. How should hidden lines be drawn at corners?
A) They should cross at the corner
B) They should meet at the corner with a dash
C) They should stop short of the corner
D) They should be omitted at corners
Rationale: Hidden lines should meet at corners with a dash, not a gap. This ensures that
the corner is clearly defined.
8. What is the correct order of precedence when two lines coincide?
A) Hidden, visible, center
B) Visible, hidden, center
, C) Center, visible, hidden
D) Center, hidden, visible
Rationale: The correct order of precedence is: visible lines first, then hidden lines, then
center lines. When two line types coincide, the higher-precedence line is drawn.
9. What is the purpose of a leader line in dimensioning?
A) To show hidden edges
B) To connect a dimension, note, or symbol to a specific feature
C) To indicate center lines
D) To show cutting planes
Rationale: A leader line is a thin line with an arrowhead that connects a dimension, note,
or symbol to a specific feature. It is often used for radius, diameter, and hole callouts.
10. What is the correct angle for a leader line?
A) 15 degrees
B) 30 degrees
C) 45 degrees
D) 60 degrees
Rationale: Leader lines are typically drawn at a 45-degree angle, though they may be
drawn at other angles if necessary for clarity. They should not be horizontal or vertical.
11. Where should a leader line terminate?
Choice Practice Questions & Answers Study Guide
Master technical drawing and spatial visualization with these original multiple-choice
practice questions built for Engineering Graphics Essentials. Features high-yield
problems, verified answers, and clear geometric explanations covering orthographic
projection, section views, dimensioning rules, and 3D CAD modeling concepts.
1. Which of the following best describes the difference between a drawing and a
sketch in engineering graphics?
A) A drawing is freehand; a sketch is instrument-drawn
B) A sketch is freehand; a drawing is instrument-drawn or computer-generated
C) A sketch is always to scale; a drawing is never to scale
D) A sketch is only used for 3D; a drawing is only used for 2D
Rationale: A sketch is a freehand representation used for quickly communicating ideas. A
drawing is created with instruments or CAD software and is typically to scale with precise
dimensions.
2. What is the purpose of a construction line in engineering graphics?
A) To show hidden edges
B) To serve as a guide for drawing the final object lines
C) To indicate center lines
D) To show cutting planes
Rationale: Construction lines are thin, light lines used as guides to lay out the drawing.
They are not part of the final drawing and are often erased or left as light lines.
,3. What is the standard width for a thick object line in engineering drawings?
A) 0.1 mm
B) 0.6 mm
C) 1.0 mm
D) 2.0 mm
Rationale: The standard width for thick object lines (visible lines) is approximately 0.6
mm (0.024 inch). Thin lines are approximately 0.3 mm.
4. What is the standard width for a thin line in engineering drawings?
A) 0.3 mm
B) 0.6 mm
C) 0.9 mm
D) 1.2 mm
Rationale: Thin lines (hidden lines, center lines, dimension lines) are approximately 0.3
mm (0.012 inch) wide. Thick lines are approximately 0.6 mm.
5. What is the recommended length for dashes in a hidden line?
A) 1/16 inch
B) 1/8 inch
C) 1/4 inch
D) 1/2 inch
,Rationale: Hidden line dashes are typically 1/8 inch long with 1/16 inch gaps. The dashes
should be uniform in length and spacing.
6. What is the recommended gap between dashes in a hidden line?
A) 1/32 inch
B) 1/16 inch
C) 1/8 inch
D) 1/4 inch
Rationale: The gap between hidden line dashes is typically 1/16 inch. The dash-to-gap
ratio is usually 2:1.
7. How should hidden lines be drawn at corners?
A) They should cross at the corner
B) They should meet at the corner with a dash
C) They should stop short of the corner
D) They should be omitted at corners
Rationale: Hidden lines should meet at corners with a dash, not a gap. This ensures that
the corner is clearly defined.
8. What is the correct order of precedence when two lines coincide?
A) Hidden, visible, center
B) Visible, hidden, center
, C) Center, visible, hidden
D) Center, hidden, visible
Rationale: The correct order of precedence is: visible lines first, then hidden lines, then
center lines. When two line types coincide, the higher-precedence line is drawn.
9. What is the purpose of a leader line in dimensioning?
A) To show hidden edges
B) To connect a dimension, note, or symbol to a specific feature
C) To indicate center lines
D) To show cutting planes
Rationale: A leader line is a thin line with an arrowhead that connects a dimension, note,
or symbol to a specific feature. It is often used for radius, diameter, and hole callouts.
10. What is the correct angle for a leader line?
A) 15 degrees
B) 30 degrees
C) 45 degrees
D) 60 degrees
Rationale: Leader lines are typically drawn at a 45-degree angle, though they may be
drawn at other angles if necessary for clarity. They should not be horizontal or vertical.
11. Where should a leader line terminate?
