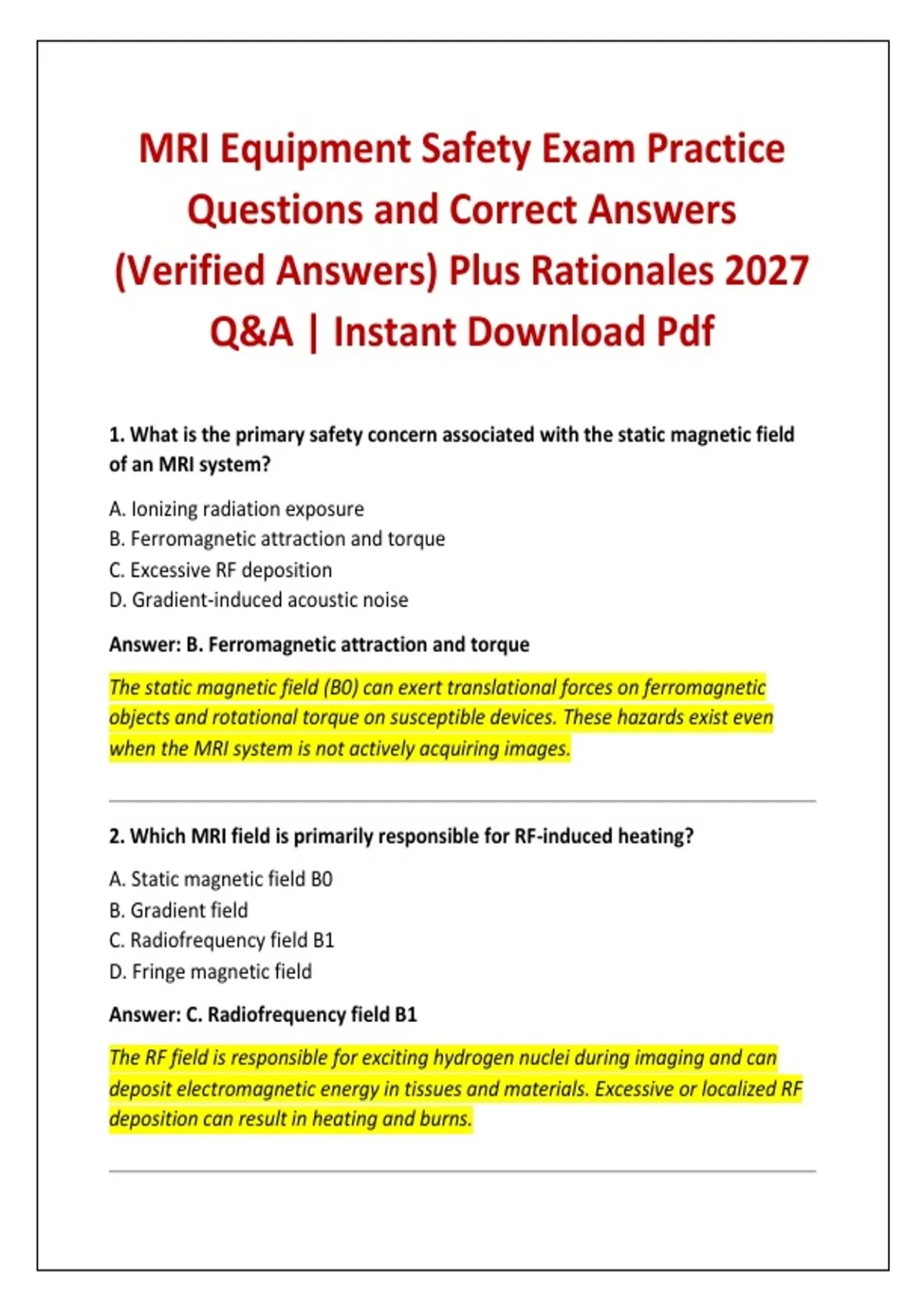

MRI Equipment Safety Exam Practice
Questions and Correct Answers
(Verified Answers) Plus Rationales 2027
Q&A | Instant Download Pdf
1. What is the primary safety concern associated with the static magnetic field
of an MRI system?
A. Ionizing radiation exposure
B. Ferromagnetic attraction and torque
C. Excessive RF deposition
D. Gradient-induced acoustic noise
Answer: B. Ferromagnetic attraction and torque
The static magnetic field (B0) can exert translational forces on ferromagnetic
objects and rotational torque on susceptible devices. These hazards exist even
when the MRI system is not actively acquiring images.
2. Which MRI field is primarily responsible for RF-induced heating?
A. Static magnetic field B0
B. Gradient field
C. Radiofrequency field B1
D. Fringe magnetic field
Answer: C. Radiofrequency field B1
The RF field is responsible for exciting hydrogen nuclei during imaging and can
deposit electromagnetic energy in tissues and materials. Excessive or localized RF
deposition can result in heating and burns.
,3. What is the primary function of the gradient coils in an MRI system?
A. Generate the static magnetic field
B. Provide spatial encoding of the MR signal
C. Cool the superconducting magnet
D. Shield the patient from RF energy
Answer: B. Provide spatial encoding of the MR signal
Gradient coils generate controlled variations in the magnetic field that allow
spatial encoding of MR signals. Their rapid switching also produces acoustic noise
and can contribute to peripheral nerve stimulation.
4. What is the main source of the loud acoustic noise produced during MRI
scanning?
A. The cryogenic cooling system
B. The RF amplifier
C. Rapid switching of gradient coils
D. The patient table motor
Answer: C. Rapid switching of gradient coils
Rapid changes in current through the gradient coils cause mechanical forces and
vibration within the scanner, producing the characteristic loud sounds associated
with MRI examinations.
5. Which MRI system specification directly addresses the maximum rate of
change of the magnetic field?
A. SAR
B. dB/dt
C. SNR
D. B0
Answer: B. dB/dt
,dB/dt describes the time rate of change of the magnetic field. Rapidly changing
gradient fields can induce electrical currents and are associated with effects such
as peripheral nerve stimulation.
6. Which parameter describes the amount of RF energy absorbed by tissue
during MRI?
A. Specific absorption rate
B. Magnetic susceptibility
C. Gradient amplitude
D. Acoustic pressure level
Answer: A. Specific absorption rate
Specific absorption rate, or SAR, describes the rate at which RF energy is absorbed
by the body. It is an important MRI equipment operating parameter because
excessive RF deposition can produce tissue heating.
7. Which MRI operating mode is intended to represent routine clinical operation
with minimal expected physiological effects from the electromagnetic fields?
A. First Level Controlled Operating Mode
B. Second Level Controlled Operating Mode
C. Normal Operating Mode
D. Emergency Operating Mode
Answer: C. Normal Operating Mode
Normal Operating Mode is defined as an operating mode in which the biophysical
effects associated with the electromagnetic fields are expected to present
negligible risk under normal conditions.
8. What is a defining characteristic of First Level Controlled Operating Mode?
A. It requires no medical oversight
B. It involves medical supervision to mitigate increased biophysical risks
, C. It disables the gradient system
D. It removes the static magnetic field
Answer: B. It involves medical supervision to mitigate increased biophysical
risks
First Level Controlled Operating Mode permits higher exposure levels than Normal
Operating Mode and therefore requires appropriate medical supervision and risk
management.
9. Which component generates the RF energy used to excite nuclear spins?
A. Gradient amplifier
B. RF transmitter system
C. Patient table motor
D. Cryogenic compressor
Answer: B. RF transmitter system
The RF transmitter generates the radiofrequency electromagnetic energy used to
excite the spins. The RF system works with appropriate transmit coils to deliver the
required RF energy to the anatomy being examined.
10. What is the primary purpose of an RF receive coil?
A. Detect MR signals from the patient
B. Generate the static magnetic field
C. Cool the gradient coils
D. Control the helium supply
Answer: A. Detect MR signals from the patient
Receive coils detect the weak MR signals emitted by the patient's tissues after RF
excitation. Their design and positioning influence signal quality and image
performance.
