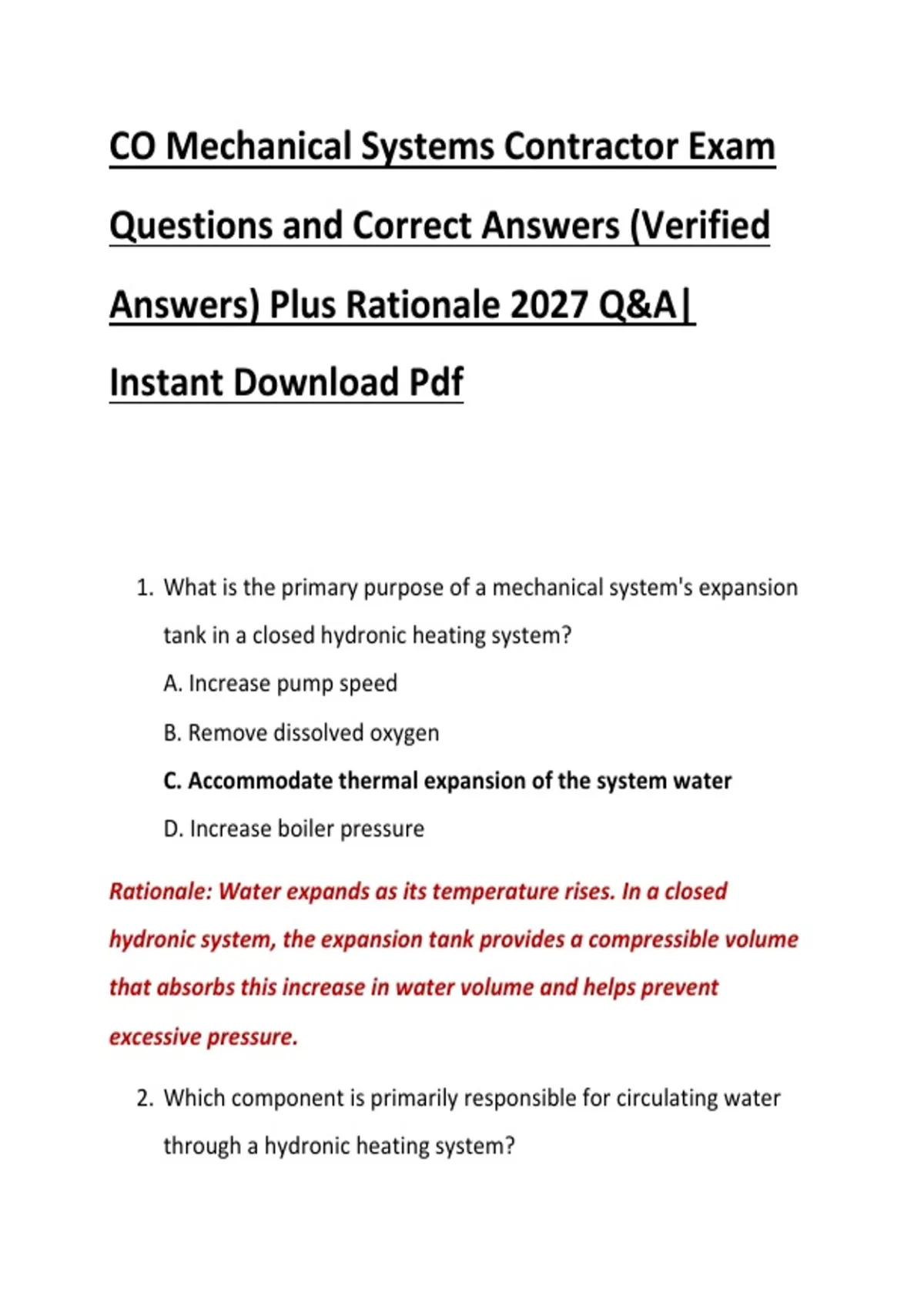

CO Mechanical Systems Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A|
Instant Download Pdf
1. What is the primary purpose of a mechanical system's expansion
tank in a closed hydronic heating system?
A. Increase pump speed
B. Remove dissolved oxygen
C. Accommodate thermal expansion of the system water
D. Increase boiler pressure
Rationale: Water expands as its temperature rises. In a closed
hydronic system, the expansion tank provides a compressible volume
that absorbs this increase in water volume and helps prevent
excessive pressure.
2. Which component is primarily responsible for circulating water
through a hydronic heating system?
, A. Check valve
B. Circulator pump
C. Expansion tank
D. Air separator
Rationale: A circulator pump creates the pressure differential needed
to move heated water through piping, heat emitters, and back to the
heat source.
3. What is the main function of an air separator in a hydronic
system?
A. Increase water temperature
B. Reduce pipe diameter
C. Remove entrained air from the circulating water
D. Increase system pressure
Rationale: Entrained air can cause noise, corrosion, poor heat transfer,
and circulation problems. Air separators help collect and remove this
air from the system.
4. Which type of valve allows flow in only one direction?
A. Globe valve
B. Ball valve
C. Check valve
D. Gate valve
,Rationale: A check valve is designed to permit fluid flow in one
direction while preventing reverse flow.
5. What is the purpose of a pressure-reducing valve on a hydronic
system connected to a potable water supply?
A. Raise boiler temperature
B. Remove sediment
C. Automatically maintain the desired system fill pressure
D. Increase circulation velocity
Rationale: A pressure-reducing fill valve regulates incoming potable
water so the hydronic system can be maintained at an appropriate
operating pressure.
6. Which heat-transfer method involves movement of heated fluid
through a system?
A. Radiation only
B. Convection
C. Conduction only
D. Reflection
Rationale: Convection transfers heat through the movement of a fluid
such as water or air. Hydronic heating relies heavily on fluid
movement for heat distribution.
, 7. What is the primary purpose of a boiler relief valve?
A. Prevent low water temperature
B. Control combustion air
C. Protect the boiler from excessive pressure
D. Increase fuel efficiency
Rationale: A relief valve opens when pressure reaches its set point,
protecting the boiler and piping from potentially dangerous
overpressure conditions.
8. Which instrument is commonly used to measure pressure in a
hydronic heating system?
A. Thermocouple
B. Pressure gauge
C. Hygrometer
D. Anemometer
Rationale: A pressure gauge provides a direct indication of system
pressure, allowing the contractor to verify proper operating conditions
and identify abnormal pressure.
9. What is the purpose of insulation on hot-water heating piping?
A. Increase water flow
B. Increase pipe pressure
