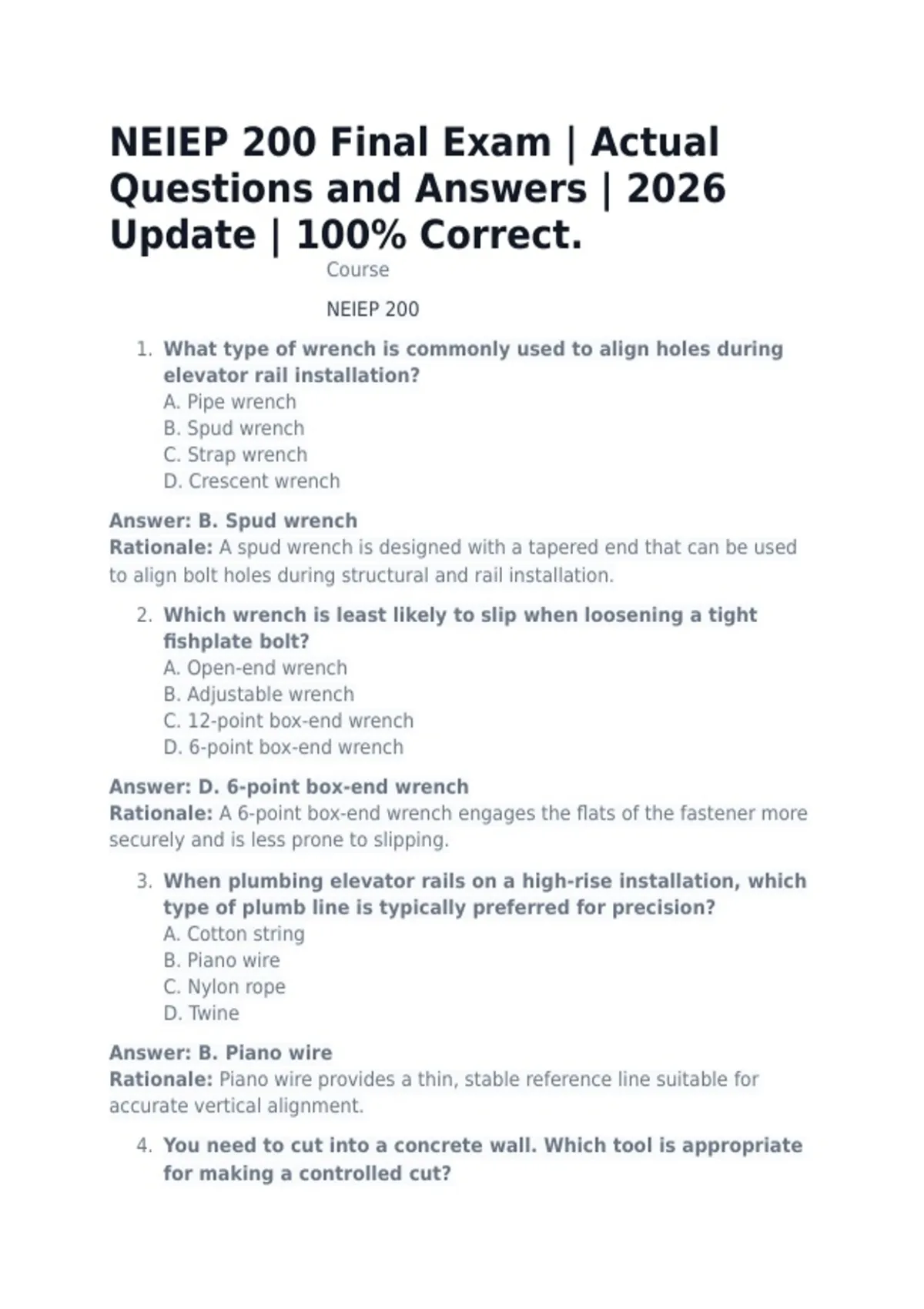

NEIEP 200 Final Exam | Actual
Questions and Answers | 2026
Update | 100% Correct.
Course
NEIEP 200
1. What type of wrench is commonly used to align holes during
elevator rail installation?
A. Pipe wrench
B. Spud wrench
C. Strap wrench
D. Crescent wrench
Answer: B. Spud wrench
Rationale: A spud wrench is designed with a tapered end that can be used
to align bolt holes during structural and rail installation.
2. Which wrench is least likely to slip when loosening a tight
fishplate bolt?
A. Open-end wrench
B. Adjustable wrench
C. 12-point box-end wrench
D. 6-point box-end wrench
Answer: D. 6-point box-end wrench
Rationale: A 6-point box-end wrench engages the flats of the fastener more
securely and is less prone to slipping.
3. When plumbing elevator rails on a high-rise installation, which
type of plumb line is typically preferred for precision?
A. Cotton string
B. Piano wire
C. Nylon rope
D. Twine
Answer: B. Piano wire
Rationale: Piano wire provides a thin, stable reference line suitable for
accurate vertical alignment.
4. You need to cut into a concrete wall. Which tool is appropriate
for making a controlled cut?
, A. Wood chisel
B. Pipe cutter
C. Grinder equipped with a diamond blade
D. Hacksaw
Answer: C. Grinder equipped with a diamond blade
Rationale: Diamond cutting discs are designed for cutting masonry and
concrete materials.
5. What factor is important when selecting a heavy-duty drill for
drilling large holes?
A. Handle color
B. Chuck capacity
C. Cord length only
D. Trigger shape
Answer: B. Chuck capacity
Rationale: Chuck capacity determines the size and type of drill bits the drill
can accommodate.
6. Which statement about a hacksaw blade is correct?
A. Teeth should normally face backward
B. Teeth should face forward
C. Teeth should face downward
D. Blade direction does not matter
Answer: B. Teeth should face forward
Rationale: A conventional hacksaw cuts on the forward stroke, so the teeth
are installed facing forward.
7. What is the primary purpose of a fishplate in an elevator rail
system?
A. Lubricate the rail
B. Join sections of guide rail
C. Support the governor
D. Connect the car sling to the ropes
Answer: B. Join sections of guide rail
Rationale: Fishplates connect adjacent sections of guide rail and help
maintain alignment.
8. What is the purpose of a plumb line when installing guide
rails?
A. Measure electrical resistance
, B. Determine vertical alignment
C. Measure rope diameter
D. Determine oil viscosity
Answer: B. Determine vertical alignment
Rationale: A plumb reference allows installers to determine whether a rail is
vertically aligned.
9. If the top of a rail is farther from the plumb reference than the
bottom, what does this indicate?
A. The rail is perfectly plumb
B. The rail requires adjustment
C. The rail is too short
D. The fishplate is oversized
Answer: B. The rail requires adjustment
Rationale: A difference between measurements at the top and bottom
indicates that the rail is not aligned with the intended vertical reference.
10. What is one major purpose of proper material handling on
an elevator job site?
A. Increase material weight
B. Prevent injuries and equipment damage
C. Eliminate the need for rigging
D. Reduce the size of the hoistway
Answer: B. Prevent injuries and equipment damage
Rationale: Proper handling techniques reduce struck-by, caught-between,
crushing, and dropped-object hazards.
11. Which device is commonly used to raise and maneuver
heavy equipment over a short distance?
A. Pry bar or lever-type equipment mover
B. Screwdriver
C. Pipe cutter
D. Level
Answer: A. Pry bar or lever-type equipment mover
Rationale: Lever-type devices can provide mechanical advantage when
positioning heavy components.
12. When using a chain hoist, what should be verified before
lifting?
A. Paint condition
, B. Rated capacity and condition of the equipment
C. Building temperature only
D. Length of the electrical cord
Answer: B. Rated capacity and condition of the equipment
Rationale: The lifting device must be suitable for the load and inspected
before use.
13. What happens to sling tension as the sling angle becomes
smaller relative to the horizontal?
A. It decreases
B. It increases
C. It becomes zero
D. It remains exactly the same
Answer: B. It increases
Rationale: A flatter sling angle produces greater tension in the sling legs for
the same suspended load.
14. A single vertical sling is lifting a 1,000-lb load. Ignoring
the sling's weight, what is the approximate sling tension?
A. 250 lb
B. 500 lb
C. 1,000 lb
D. 2,000 lb
Answer: C. 1,000 lb
Rationale: With a single vertical sling supporting the entire load, the sling
carries approximately the full load.
15. What is the main purpose of a shackle in rigging?
A. Measure rope diameter
B. Connect and secure lifting components
C. Cut wire rope
D. Align guide rails
Answer: B. Connect and secure lifting components
Rationale: Shackles are commonly used as connecting hardware between
slings, hooks, lifting points, and loads.
16. What is a major hazard associated with an improperly
secured load?
A. Improved balance
B. Load shifting or falling
