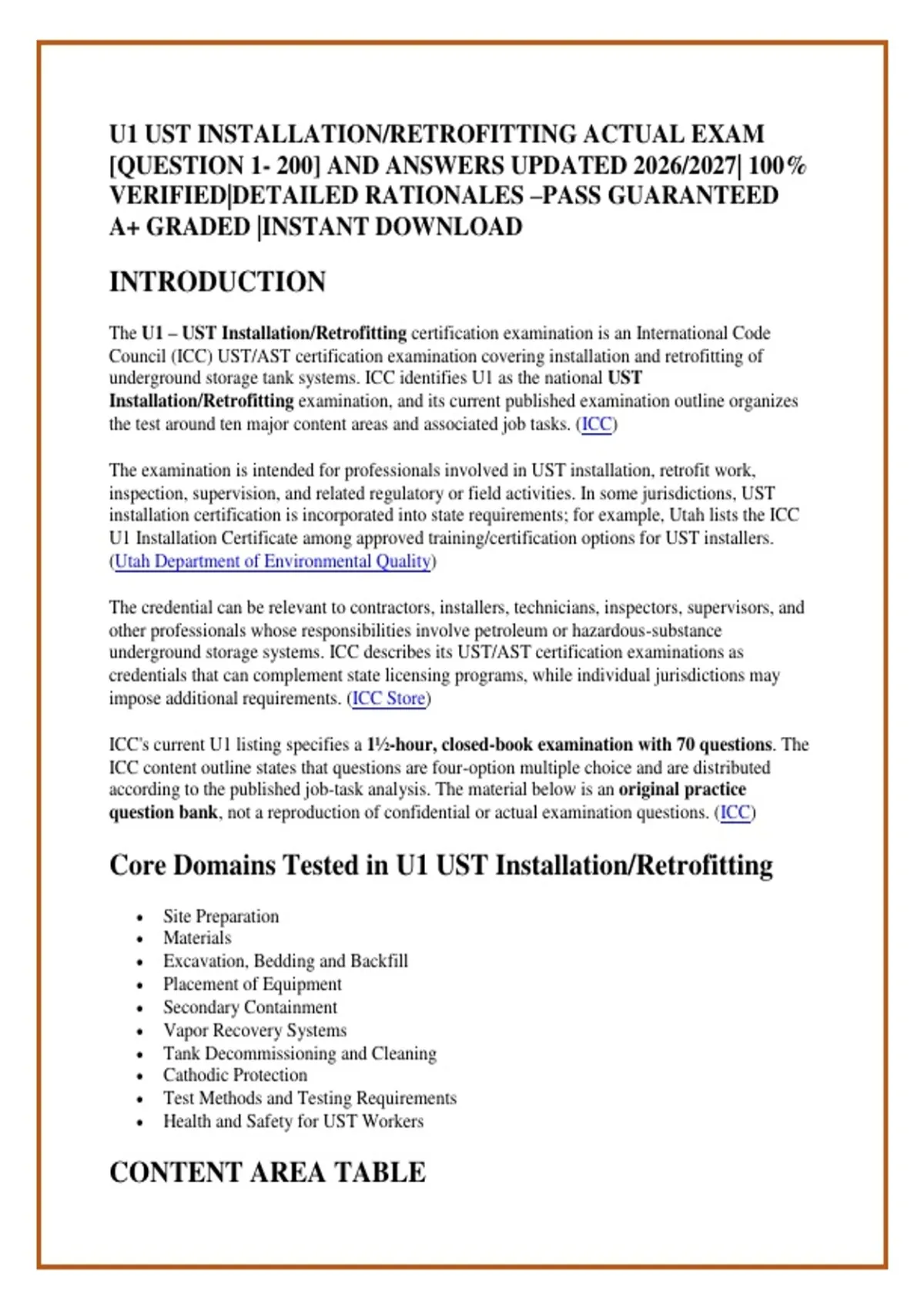

U1 UST INSTALLATION/RETROFITTING ACTUAL EXAM
[QUESTION 1- 200] AND ANSWERS UPDATED 2026/2027| 100%
VERIFIED|DETAILED RATIONALES –PASS GUARANTEED
A+ GRADED |INSTANT DOWNLOAD
INTRODUCTION
The U1 – UST Installation/Retrofitting certification examination is an International Code
Council (ICC) UST/AST certification examination covering installation and retrofitting of
underground storage tank systems. ICC identifies U1 as the national UST
Installation/Retrofitting examination, and its current published examination outline organizes
the test around ten major content areas and associated job tasks. (ICC)
The examination is intended for professionals involved in UST installation, retrofit work,
inspection, supervision, and related regulatory or field activities. In some jurisdictions, UST
installation certification is incorporated into state requirements; for example, Utah lists the ICC
U1 Installation Certificate among approved training/certification options for UST installers.
(Utah Department of Environmental Quality)
The credential can be relevant to contractors, installers, technicians, inspectors, supervisors, and
other professionals whose responsibilities involve petroleum or hazardous-substance
underground storage systems. ICC describes its UST/AST certification examinations as
credentials that can complement state licensing programs, while individual jurisdictions may
impose additional requirements. (ICC Store)
ICC's current U1 listing specifies a 1½-hour, closed-book examination with 70 questions. The
ICC content outline states that questions are four-option multiple choice and are distributed
according to the published job-task analysis. The material below is an original practice
question bank, not a reproduction of confidential or actual examination questions. (ICC)
Core Domains Tested in U1 UST Installation/Retrofitting
Site Preparation
Materials
Excavation, Bedding and Backfill
Placement of Equipment
Secondary Containment
Vapor Recovery Systems
Tank Decommissioning and Cleaning
Cathodic Protection
Test Methods and Testing Requirements
Health and Safety for UST Workers
CONTENT AREA TABLE
, % of Approx. # of
Content Domain Key Topics Covered
Exam Questions
Property clearances, drainage, layout, tank
Site Preparation 15% 11
unloading, pre-installation testing
Tank and pipe materials, coatings, fittings,
Materials 8% 6
compatibility
Excavation, Bedding and Excavation dimensions, burial depth,
20% 14
Backfill bedding, backfill, tank deflection
Anchoring, ballast, fill lines, product
Placement of Equipment 21% 15
piping, vents, leak detection, wells
Overfill protection, secondary
Secondary Containment 6% 4
containment, release detection
Vapor Recovery Systems 2% 1 Stage I and Stage II vapor recovery
Tank Decommissioning Drainage, waste-liquid disposal, tank
2% 1
and Cleaning purging
Coatings, galvanic anodes, isolation,
Cathodic Protection 5% 4
rectifiers and impressed-current systems
Test Methods and Testing Release detection, failed tests, periodic
6% 4
Requirements testing, test validity
Vapor control, ignition sources,
Health and Safety for UST
15% 10 excavation safety, grounding, PPE, OSHA
Workers
requirements
Total 100% 70 All published U1 examination domains
The percentages above follow ICC's published U1 examination outline. The question counts are
approximate allocations of a 70-question examination and are not an official distribution of
individual examination questions. (ICC)
QUESTIONS 1-200
Q1: During preparation for a new UST installation, the proposed excavation would place
the tank closer to an existing sewer line than indicated on the approved site plan. What
should the installer do FIRST?
A) Begin excavation because the tank manufacturer's minimum clearance controls all other
requirements
B) Stop and verify the required clearance and approved layout with the applicable plans
and authority having jurisdiction
C) Move the sewer line without notifying the project designer
D) Reduce the tank burial depth to compensate
Correct Answer: B
Rationale: ICC's site-preparation tasks require verification of property clearances and the UST
system layout before installation proceeds. A discrepancy between field conditions and approved
,plans should be resolved before construction continues. A, C, and D improperly assume that
field personnel may unilaterally override the approved design or applicable requirements.
Q2: A site investigation shows that the seasonal high water table is substantially higher
than the installer originally expected. Which installation issue deserves immediate
reassessment?
A) Paint color of aboveground piping
B) Tank buoyancy and the anchoring/ballasting design
C) Dispenser labeling only
D) Tank identification number only
Correct Answer: B
Rationale: A high water table can create substantial buoyant forces on an empty or partially
empty underground tank. ICC specifically identifies site drainage and high-water-table
conditions and separately addresses tank anchoring and ballasting. The other choices do not
address the primary structural concern created by groundwater.
Q3: During layout verification, two tanks are positioned differently from the approved
drawing, although both would physically fit within the excavation. What is the most
appropriate response?
A) Accept the arrangement because both tanks fit
B) Move the tanks farther apart without documentation
C) Verify the revised layout against the design, required clearances, and applicable
authority requirements before proceeding
D) Install the tanks and update the drawing afterward
Correct Answer: C
Rationale: UST layout is not merely a question of whether tanks physically fit. Clearances
between tanks, structures, property boundaries and utilities must be verified. The installation
should follow the approved design unless a properly authorized revision is made. A, B, and D
bypass required design verification.
Q4: A fiberglass-reinforced tank arrives at the site. The crew proposes unloading it by
dragging it across compacted soil because the crane is not immediately available. What is
the best action?
A) Drag it slowly so the shell does not flex
B) Use an approved handling method that prevents damage and follows the manufacturer's
lifting requirements
C) Drag it if the tank has protective coating
D) Place chains directly around the tank shell
Correct Answer: B
Rationale: Tank handling is specifically addressed in the U1 outline because improper handling
can damage tanks before installation. Tanks should be lifted and handled according to the
manufacturer's instructions, using designated lifting points where applicable. Protective coating
does not make dragging acceptable.
, Q5: Before a retrofit begins, the installer discovers a damaged section of product piping
that was intended for reuse. What should occur before installation?
A) Bury the pipe because the damage will be inaccessible later
B) Repair it after backfilling
C) Evaluate the damage and repair or replace the component according to applicable
requirements and manufacturer instructions
D) Apply ordinary exterior paint over the damage
Correct Answer: C
Rationale: Materials must be inspected for damage and must meet applicable strength,
durability, and compatibility requirements before installation. Burying known defective material
defeats the inspection process. Ordinary paint is not an appropriate substitute for an approved
repair.
Q6: A UST installation plan specifies one tank location, but the field crew believes shifting
the tank several feet will make pipe installation easier. What should control?
A) The crew's preferred configuration
B) The shortest piping route
C) The approved system layout and applicable clearance requirements
D) The location that requires the least excavation
Correct Answer: C
Rationale: The U1 outline requires verification of the correct site layout, including tank and
piping placement and clearances. Installation convenience does not authorize an undocumented
change. A, B, and D prioritize construction convenience over the approved design.
Q7: A new UST will be installed in an area where surface water routinely accumulates
after heavy rain. Which planning activity is most important before excavation?
A) Determine the preferred dispenser color
B) Evaluate site drainage and expected groundwater conditions
C) Select a larger vent cap
D) Eliminate all secondary containment
Correct Answer: B
Rationale: Site drainage and expected high water tables affect excavation stability, tank
installation, buoyancy, and backfill operations. ICC explicitly identifies these conditions as U1
site-preparation tasks. The other choices do not address the hydrologic condition.
Q8: A contractor begins unloading a tank while the manufacturer's lifting instructions
specify designated lifting lugs. Which procedure is appropriate?
A) Attach lifting chains to any convenient nozzle
B) Wrap a chain around the tank shell
C) Use the manufacturer's designated lifting points and approved handling procedure
D) Push the tank from the delivery truck with a loader
