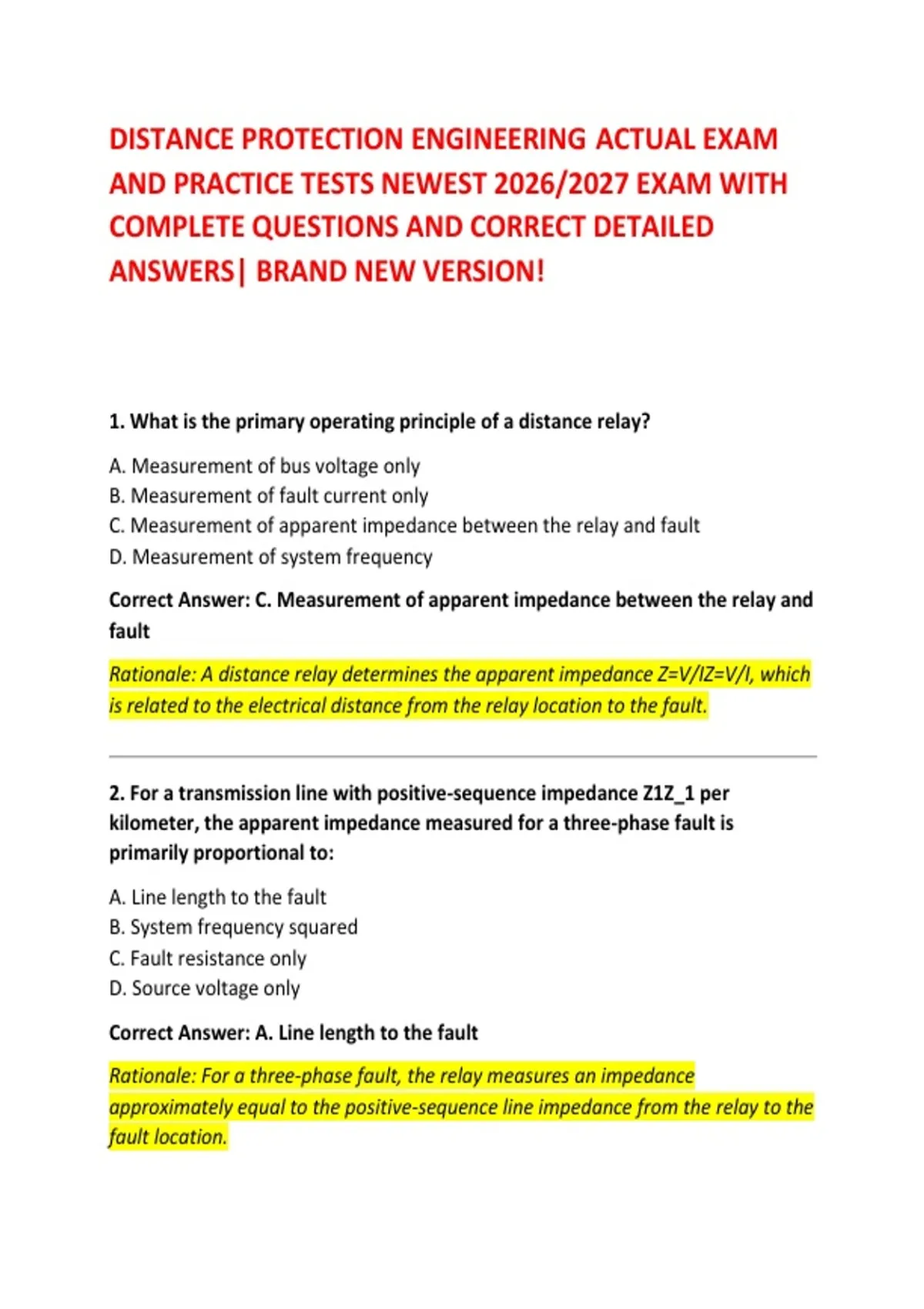

DISTANCE PROTECTION ENGINEERING ACTUAL EXAM
AND PRACTICE TESTS NEWEST 2026/2027 EXAM WITH
COMPLETE QUESTIONS AND CORRECT DETAILED
ANSWERS| BRAND NEW VERSION!
1. What is the primary operating principle of a distance relay?
A. Measurement of bus voltage only
B. Measurement of fault current only
C. Measurement of apparent impedance between the relay and fault
D. Measurement of system frequency
Correct Answer: C. Measurement of apparent impedance between the relay and
fault
Rationale: A distance relay determines the apparent impedance Z=V/IZ=V/I, which
is related to the electrical distance from the relay location to the fault.
2. For a transmission line with positive-sequence impedance Z1Z_1 per
kilometer, the apparent impedance measured for a three-phase fault is
primarily proportional to:
A. Line length to the fault
B. System frequency squared
C. Fault resistance only
D. Source voltage only
Correct Answer: A. Line length to the fault
Rationale: For a three-phase fault, the relay measures an impedance
approximately equal to the positive-sequence line impedance from the relay to the
fault location.
,3. Which quantity is normally calculated by a distance relay from measured
voltage and current?
A. Apparent impedance
B. Active power only
C. Reactive power only
D. Frequency deviation
Correct Answer: A. Apparent impedance
Rationale: Distance protection uses the ratio of measured voltage to current to
estimate the impedance between the relay and the fault.
4. Which distance characteristic is traditionally associated with a circular
operating region centered at the origin of the R-X plane?
A. Mho
B. Reactance
C. Quadrilateral
D. Polygonal
Correct Answer: A. Mho
Rationale: The conventional mho characteristic is a circle passing through the
origin on the impedance plane.
5. A quadrilateral distance characteristic is particularly useful because it can
provide greater independent control of:
A. Frequency and phase angle
B. Resistance and reactance reach
C. Voltage and frequency
D. Current and power factor
Correct Answer: B. Resistance and reactance reach
,Rationale: A quadrilateral characteristic allows separate resistive and reactive
boundaries, making it useful for faults involving significant fault resistance.
6. Which distance element is generally most sensitive to high-resistance faults?
A. Ideal mho element
B. Quadrilateral element
C. Underfrequency element
D. Overvoltage element
Correct Answer: B. Quadrilateral element
Rationale: Quadrilateral characteristics can provide a larger resistive reach than
traditional mho characteristics, improving sensitivity to resistive faults.
7. The R-X diagram used in distance protection represents:
A. Real power versus reactive power
B. Resistance versus reactance
C. Voltage versus current
D. Frequency versus voltage
Correct Answer: B. Resistance versus reactance
Rationale: Distance relay impedance characteristics are commonly plotted on the
resistance-reactance plane.
8. In a conventional mho distance relay, increasing the reach setting generally:
A. Decreases the diameter of the operating circle
B. Increases the diameter of the operating circle
C. Changes the frequency setting only
D. Eliminates directional operation
Correct Answer: B. Increases the diameter of the operating circle
, Rationale: The mho circle size is directly related to the relay's reach impedance
setting.
9. Which fault type normally requires zero-sequence compensation in a distance
relay?
A. Three-phase fault
B. Line-to-ground fault
C. Three-phase fault with no ground involvement
D. Balanced load condition
Correct Answer: B. Line-to-ground fault
Rationale: Ground faults involve zero-sequence current, so the relay must account
for the zero-sequence impedance of the line.
10. The purpose of the zero-sequence compensation factor in ground distance
protection is to:
A. Compensate for transformer magnetizing current
B. Account for the difference between positive- and zero-sequence line
impedances
C. Increase system frequency
D. Eliminate CT saturation
Correct Answer: B. Account for the difference between positive- and zero-
sequence line impedances
Rationale: Ground-fault impedance calculations must account for the zero-
sequence network because ground-fault current contains zero-sequence
components.
11. For a line-to-ground fault, the distance relay commonly uses which current
quantity for ground-loop measurement?
