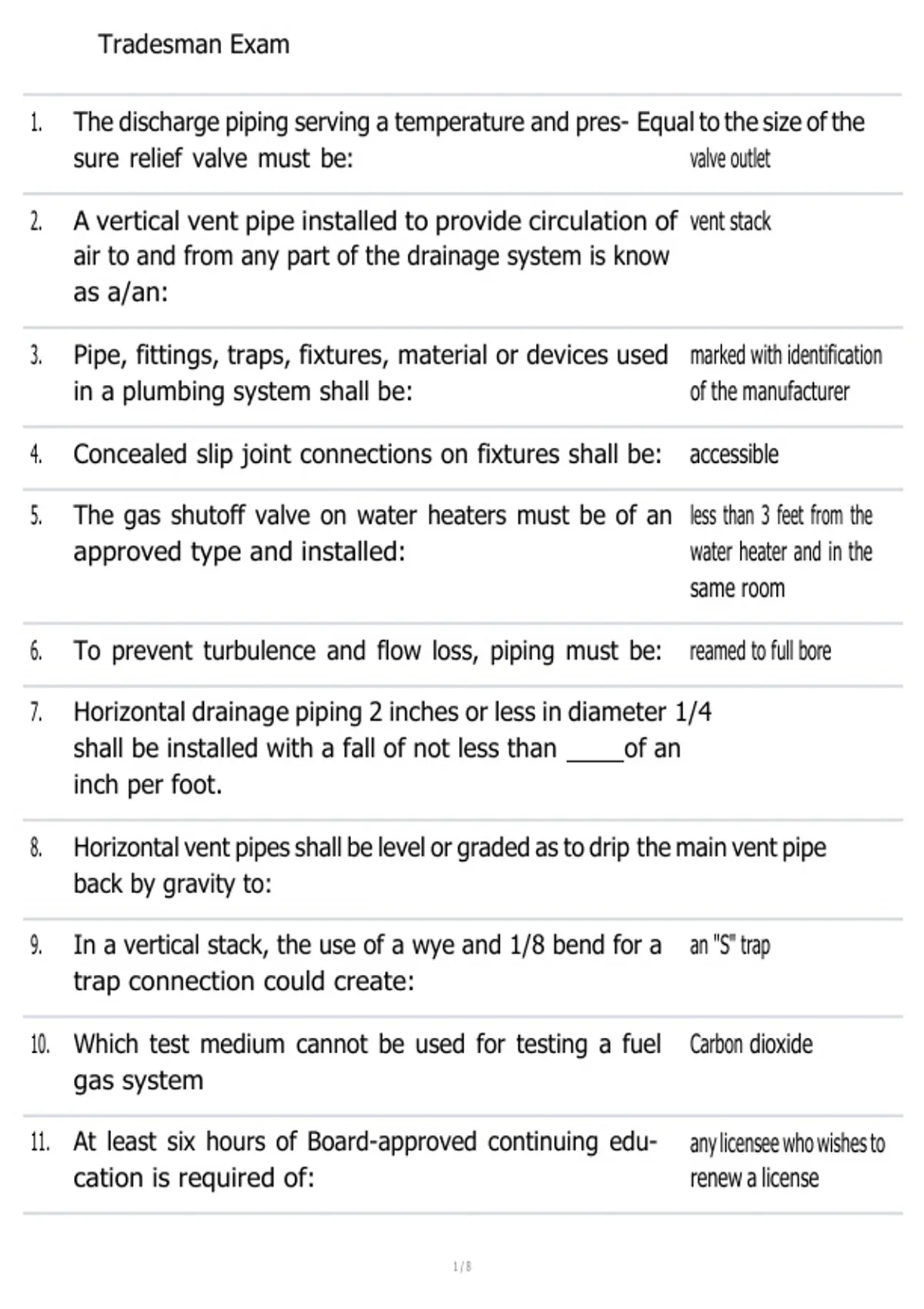

Tradesman Exam
1. The discharge piping serving a temperature and pres- Equal to the size of the
sure relief valve must be: valve outlet
2. A vertical vent pipe installed to provide circulation of vent stack
air to and from any part of the drainage system is know
as a/an:
3. Pipe, fittings, traps, fixtures, material or devices used marked with identification
in a plumbing system shall be: of the manufacturer
4. Concealed slip joint connections on fixtures shall be: accessible
5. The gas shutoff valve on water heaters must be of an less than 3 feet from the
approved type and installed: water heater and in the
same room
6. To prevent turbulence and flow loss, piping must be: reamed to full bore
7. Horizontal drainage piping 2 inches or less in diameter 1/4
shall be installed with a fall of not less than of an
inch per foot.
8. Horizontal vent pipes shall be level or graded as to drip the main vent pipe
back by gravity to:
9. In a vertical stack, the use of a wye and 1/8 bend for a an "S" trap
trap connection could create:
10. Which test medium cannot be used for testing a fuel Carbon dioxide
gas system
11. At least six hours of Board-approved continuing edu- any licensee who wishes to
cation is required of: renew a license
1/8
, Tradesman Exam
12. The lowest point in the cross-section of the horizontal crown weir
waterway at the exit of a trap is called a/an:
13. The vertical distance between the crown weir and the trap seal
top dip of the trap is called the:
14. Water that is satisfactory for drinking, culinary, and potable water
domestic purposes and that meets the requirements
of the Health Authority Having Jurisdiction is called:
15. A pipe that does not connect directly with the drainage indirect waste pipe
system but conveys liquid wastes by discharging into
a plumbing fixture, interceptor, or receptacle that is
directly connected to the drainage system is called
a/an:
16. The slope or fall of a line of pipe in reference to a hor- grade
izontal plane, usually expressed as the fall in fraction
of a inch or percentage slope per foot length of pipe is
called:
17. The length along the center line of a pipe and fittings developed length
is called:
18. Appliances that are constructed and installed so that direct-vent appliances
air for combustion is derived directly from the out-
doors, and flue gases are discharged to the outdoors
are called:
19. "Accessible" fixtures, connections, appliances or first require removal of an
equipment may: access panel or door
20. cross-connection
2/8
