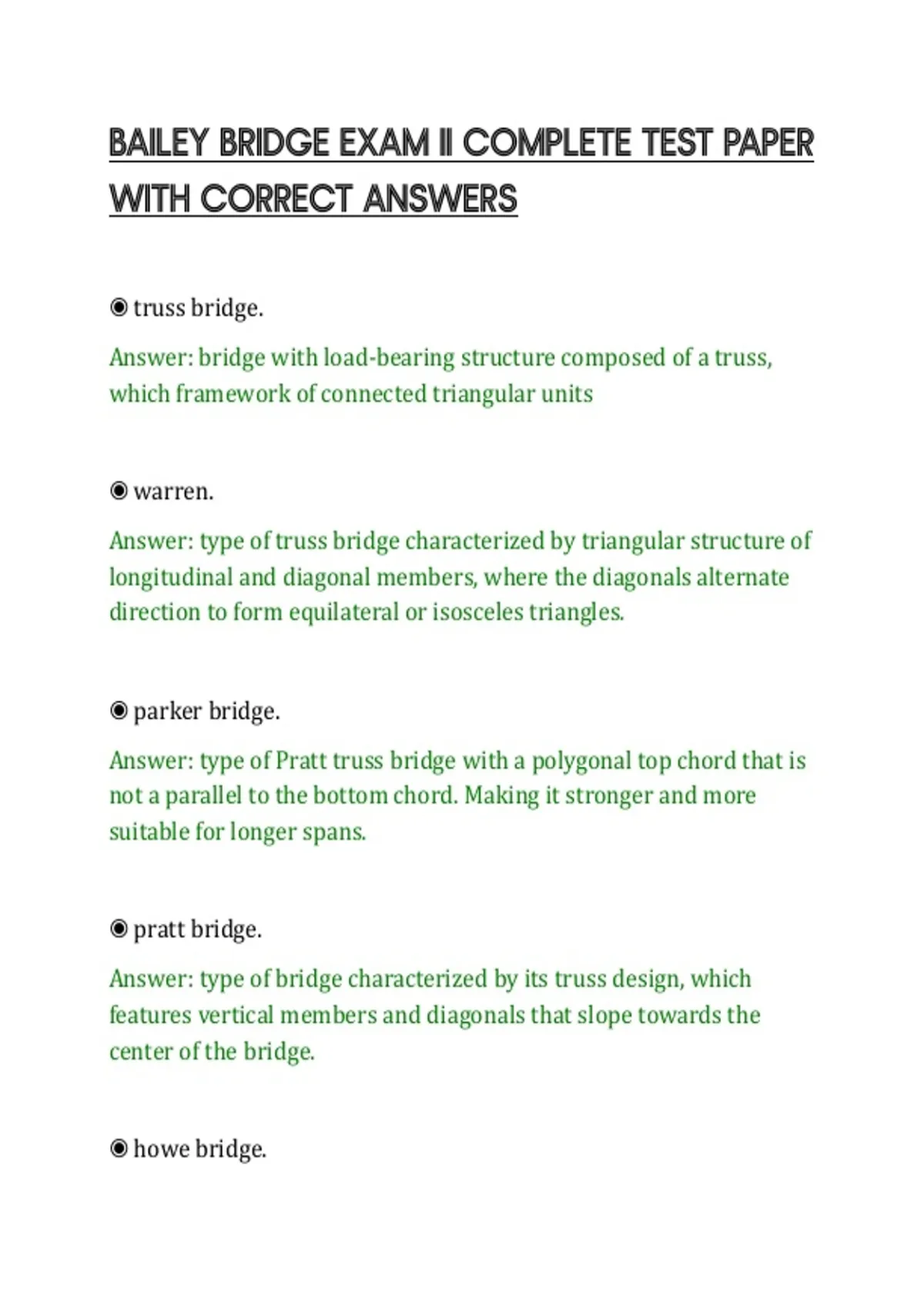

BAILEY BRIDGE EXAM II COMPLETE TEST PAPER
WITH CORRECT ANSWERS
◉ truss bridge.
Answer: bridge with load-bearing structure composed of a truss,
which framework of connected triangular units
◉ warren.
Answer: type of truss bridge characterized by triangular structure of
longitudinal and diagonal members, where the diagonals alternate
direction to form equilateral or isosceles triangles.
◉ parker bridge.
Answer: type of Pratt truss bridge with a polygonal top chord that is
not a parallel to the bottom chord. Making it stronger and more
suitable for longer spans.
◉ pratt bridge.
Answer: type of bridge characterized by its truss design, which
features vertical members and diagonals that slope towards the
center of the bridge.
◉ howe bridge.
, Answer: type of truss bridge that uses vertical members under
tension and diagonal web members under compression which slope
inwards towards the center
◉ king post bridge.
Answer: type of bridge that uses a central vertical post in a
triangular truss to support the structure.
◉ queen post bridge.
Answer: type of truss that uses two vertical posts instead of one to
support the structure allowing for longer spans than a king post
bridge.
◉ suspension bridge.
Answer: a bridge where the roadway is hung below suspension
cables on vertical hangers.
◉ arch bridge.
Answer: bridge that uses a curved arch as its main structural
element to support weight.
◉ beam and post bridge.
Answer: simple bridge made of horizontal beams supported by
vertical posts at each end.
