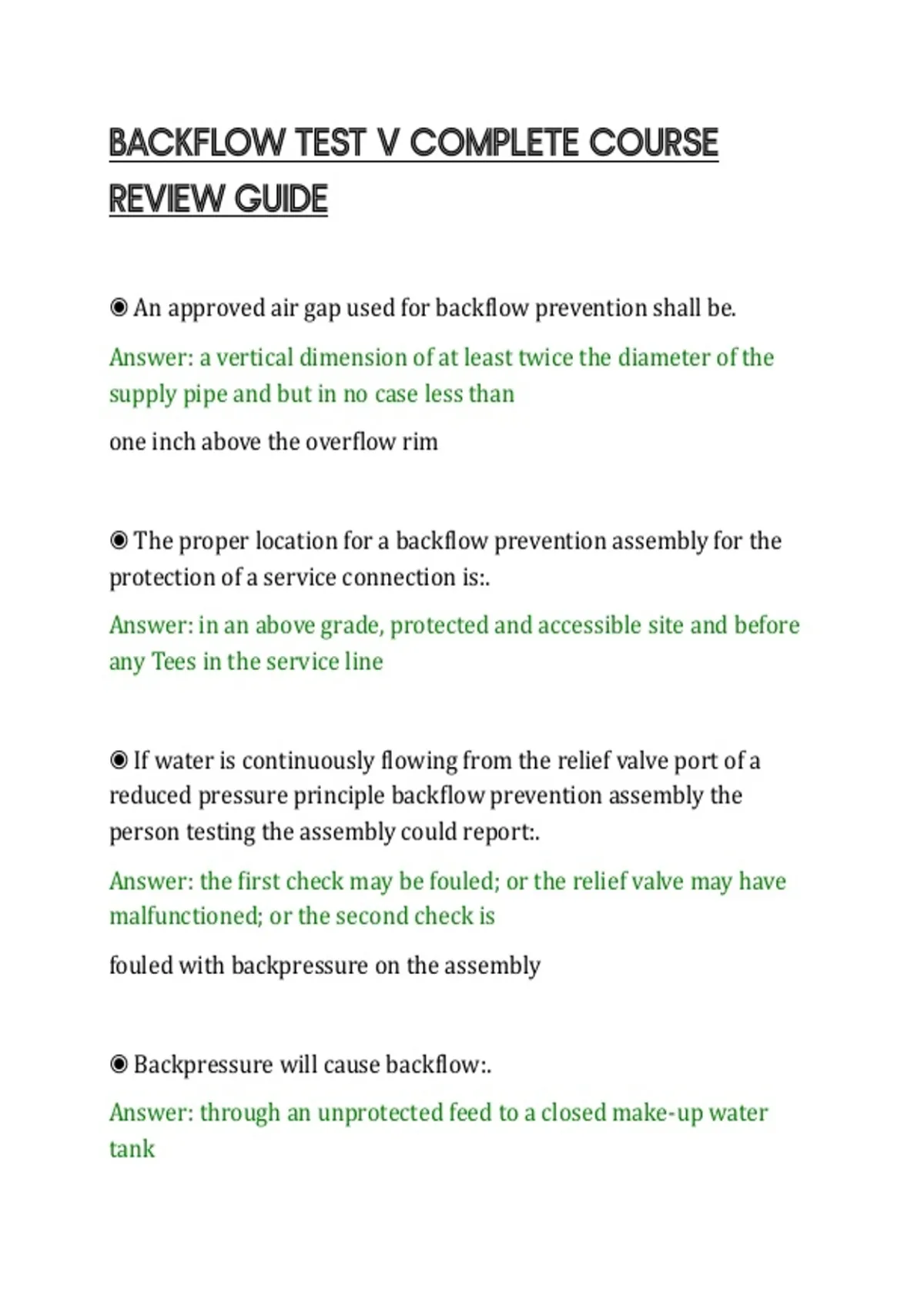

BACKFLOW TEST V COMPLETE COURSE
REVIEW GUIDE
◉ An approved air gap used for backflow prevention shall be.
Answer: a vertical dimension of at least twice the diameter of the
supply pipe and but in no case less than
one inch above the overflow rim
◉ The proper location for a backflow prevention assembly for the
protection of a service connection is:.
Answer: in an above grade, protected and accessible site and before
any Tees in the service line
◉ If water is continuously flowing from the relief valve port of a
reduced pressure principle backflow prevention assembly the
person testing the assembly could report:.
Answer: the first check may be fouled; or the relief valve may have
malfunctioned; or the second check is
fouled with backpressure on the assembly
◉ Backpressure will cause backflow:.
Answer: through an unprotected feed to a closed make-up water
tank
,◉ The primary responsibility for requiring the testing, maintenance
and reporting on service protection backflow prevention assemblies
is normally vested in the:.
Answer: Water Purveyor
◉ In testing a reduced pressure principle backflow prevention
assembly.
Answer: the relief valve must be tested first
◉ A water agency or public health agency may require more
frequent testing of a backflow prevention assembly than the
maximum time allowed between testing. What is the maximum legal
length of time permitted between tests?.
Answer: twelve months
◉ One form of backflow is:.
Answer: backsiphonage through a submerged inlet
◉ When a perfect vacuum, at sea level, draws water up into a 40 foot
vertical pipe, the pressure in the pipe above the water surface in the
pipe is:.
Answer: zero psia
, ◉ As you test the number one check valve of a double check valve
assembly you open the number three test cock to atmosphere. Water
continues to discharge from the sight tube. You may continue in the
following manner.
Answer: observe the reading on your test kit, slowly open the bleed
valve arrangement to compensate for a leaking number one shut off
valve
◉ Which of the following types of cross-connections are considered
to be illegal.
Answer: a by-pass hose with a shut off valve circumventing a
reduced pressure principle backflow
assembly
◉ Backsiphonage due to an aspirator effect may be caused by:.
Answer: high velocity flow of water through a pipe tee
◉ The term "approved reduced pressure principle assembly" applies
to:.
Answer: an assembly of two approved check valves, with an
approved differential relief valve between the check valves, four
properly located and approved test cocks and two approved shut off
valves
