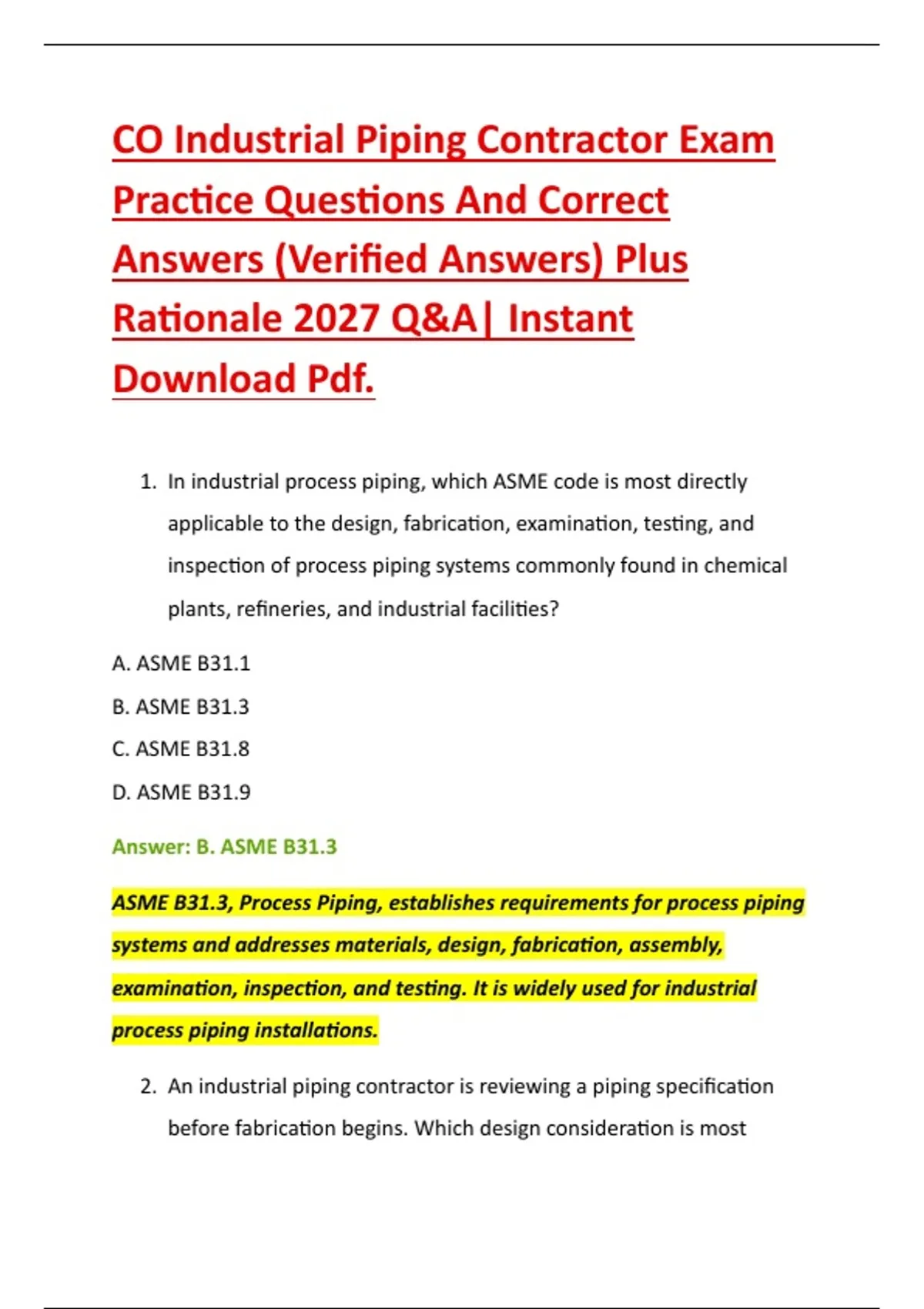

CO Industrial Piping Contractor Exam
Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant
Download Pdf.
1. In industrial process piping, which ASME code is most directly
applicable to the design, fabrication, examination, testing, and
inspection of process piping systems commonly found in chemical
plants, refineries, and industrial facilities?
A. ASME B31.1
B. ASME B31.3
C. ASME B31.8
D. ASME B31.9
Answer: B. ASME B31.3
ASME B31.3, Process Piping, establishes requirements for process piping
systems and addresses materials, design, fabrication, assembly,
examination, inspection, and testing. It is widely used for industrial
process piping installations.
2. An industrial piping contractor is reviewing a piping specification
before fabrication begins. Which design consideration is most
, important when determining the required wall thickness of a
process pipe subjected to internal pressure?
A. Pipe color and insulation thickness
B. Internal pressure, outside diameter, allowable stress, and design
temperature
C. Number of pipe supports only
D. Distance between electrical panels
Answer: B. Internal pressure, outside diameter, allowable stress, and
design temperature
Required pressure-wall thickness depends on the pipe geometry, design
pressure, design temperature, material allowable stress, and applicable
design formula. Corrosion allowance and other factors may also
increase the required thickness.
3. A process piping system will carry a fluid at a temperature
substantially above normal ambient conditions. Why must thermal
expansion be considered in the piping design?
A. Thermal expansion can create excessive forces, moments, and stresses
in the piping and connected equipment
B. Thermal expansion eliminates the need for pipe supports
C. Thermal expansion always decreases pipe pressure
D. Thermal expansion affects only the pipe paint
Answer: A. Thermal expansion can create excessive forces, moments,
and stresses in the piping and connected equipment
,Temperature changes cause piping to expand or contract. If movement
is restrained improperly, significant loads can develop at anchors,
supports, valves, equipment nozzles, and other components.
4. Which piping component is specifically intended to accommodate
controlled axial, lateral, or angular movement caused by thermal
expansion or equipment movement?
A. Blind flange
B. Expansion joint
C. Threaded coupling
D. Reducing bushing
Answer: B. Expansion joint
Expansion joints are designed to accommodate specified movements in
piping systems. Their selection and installation must account for
pressure, temperature, movement, cycle life, and system configuration.
5. A pipe support is installed directly beneath a valve that is
significantly heavier than the adjacent straight pipe. What is the
primary reason for providing appropriate support at this location?
A. To improve the appearance of the piping
B. To prevent excessive loads and deflection caused by the concentrated
valve weight
C. To increase fluid velocity
D. To eliminate the need for hydrostatic testing
, Answer: B. To prevent excessive loads and deflection caused by the
concentrated valve weight
Valves and other concentrated components can impose substantial loads
on piping. Proper support helps control deflection and prevents
excessive stresses on the pipe and connected equipment.
6. Before installing carbon steel process piping, the contractor
discovers that several pipe sections have deep gouges and
mechanical damage extending into the pipe wall. What should be
done?
A. Install the pipe because pressure will eliminate the damage
B. Grind all damage without checking remaining wall thickness
C. Evaluate the damage against the applicable specification and code
requirements before acceptance or repair
D. Cover the damaged area with insulation
Answer: C. Evaluate the damage against the applicable specification and
code requirements before acceptance or repair
Pipe damage affecting wall thickness or integrity must be evaluated
according to the governing code, specification, and engineering
requirements. Unqualified damage should not simply be concealed or
ignored.
7. In a process piping system, what is the primary function of a valve
installed in a line?
