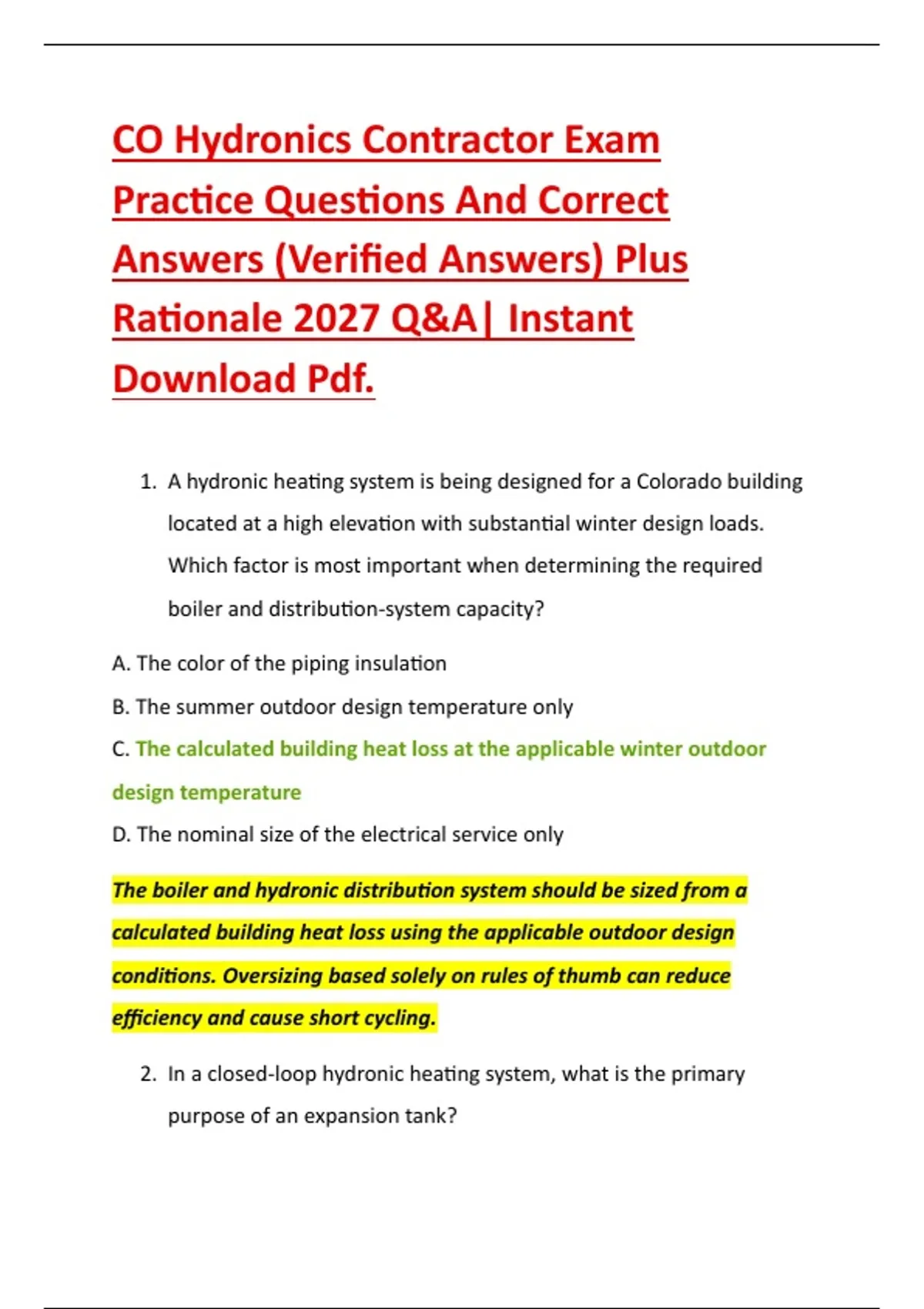

CO Hydronics Contractor Exam
Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2027 Q&A| Instant
Download Pdf.
1. A hydronic heating system is being designed for a Colorado building
located at a high elevation with substantial winter design loads.
Which factor is most important when determining the required
boiler and distribution-system capacity?
A. The color of the piping insulation
B. The summer outdoor design temperature only
C. The calculated building heat loss at the applicable winter outdoor
design temperature
D. The nominal size of the electrical service only
The boiler and hydronic distribution system should be sized from a
calculated building heat loss using the applicable outdoor design
conditions. Oversizing based solely on rules of thumb can reduce
efficiency and cause short cycling.
2. In a closed-loop hydronic heating system, what is the primary
purpose of an expansion tank?
,A. To increase boiler firing rate
B. To remove sediment from the system
C. To increase pump horsepower
D. To accommodate thermal expansion of the system water while
controlling pressure changes
Water expands as its temperature increases. The expansion tank
provides a compressible volume that accepts this expansion and helps
prevent excessive system pressure.
3. Where is the preferred location for the expansion tank connection
in a conventional hydronic system using a diaphragm-type
expansion tank and circulator?
A. Directly at the boiler relief valve outlet
B. At or near the point of no pressure change, commonly associated
with the suction side of the circulator
C. At the highest radiator only
D. Downstream of every terminal unit
Connecting the expansion tank at the point of no pressure change
establishes a stable reference pressure and allows the circulator to
operate without unnecessarily reducing pressure at portions of the
system.
4. What is the principal function of an air separator in a closed
hydronic heating system?
,A. To raise water temperature
B. To reduce electrical consumption of the boiler
C. To remove entrained air from circulating water
D. To prevent thermal expansion
Air separators promote the release and removal of entrained air from
hydronic water. Proper air removal reduces noise, corrosion, circulation
problems, and air binding.
5. A hydronic system repeatedly develops air in the radiators after
startup. Which condition is most likely to contribute to this
problem?
A. Excessive pipe insulation
B. Insufficient system pressure or improper air elimination
C. An oversized electrical disconnect
D. Excessive boiler insulation
Low pressure can allow dissolved gases to come out of solution,
particularly at high points and near pump suction conditions. Proper fill
pressure and air elimination help prevent recurring air problems.
6. What is the primary purpose of a hydronic system's pressure-
reducing fill valve?
A. To reduce boiler water temperature
B. To increase pump speed
C. To automatically maintain the system at an appropriate minimum fill
, pressure when connected to the potable water supply
D. To discharge boiler water during overheating
A pressure-reducing fill valve maintains system fill pressure within the
intended range. It is not a substitute for the pressure-relief valve, which
performs a separate safety function.
7. Why is a backflow-prevention device important where potable
water is used to fill a hydronic heating system?
A. It prevents the boiler from firing
B. It increases the circulating-water temperature
C. It helps prevent potentially contaminated heating-system water from
flowing back into the potable water supply
D. It increases domestic water pressure
Hydronic water can contain corrosion inhibitors, treatment chemicals,
metals, and other contaminants. Backflow protection prevents reverse
flow from compromising the potable water system.
8. What is the purpose of a boiler pressure-relief valve?
A. To control room temperature
B. To regulate circulator speed
C. To maintain constant water flow
D. To protect the boiler and system from dangerous overpressure
A pressure-relief valve is a critical safety device designed to open when
system pressure reaches its setpoint, preventing potentially hazardous
pressure buildup.
