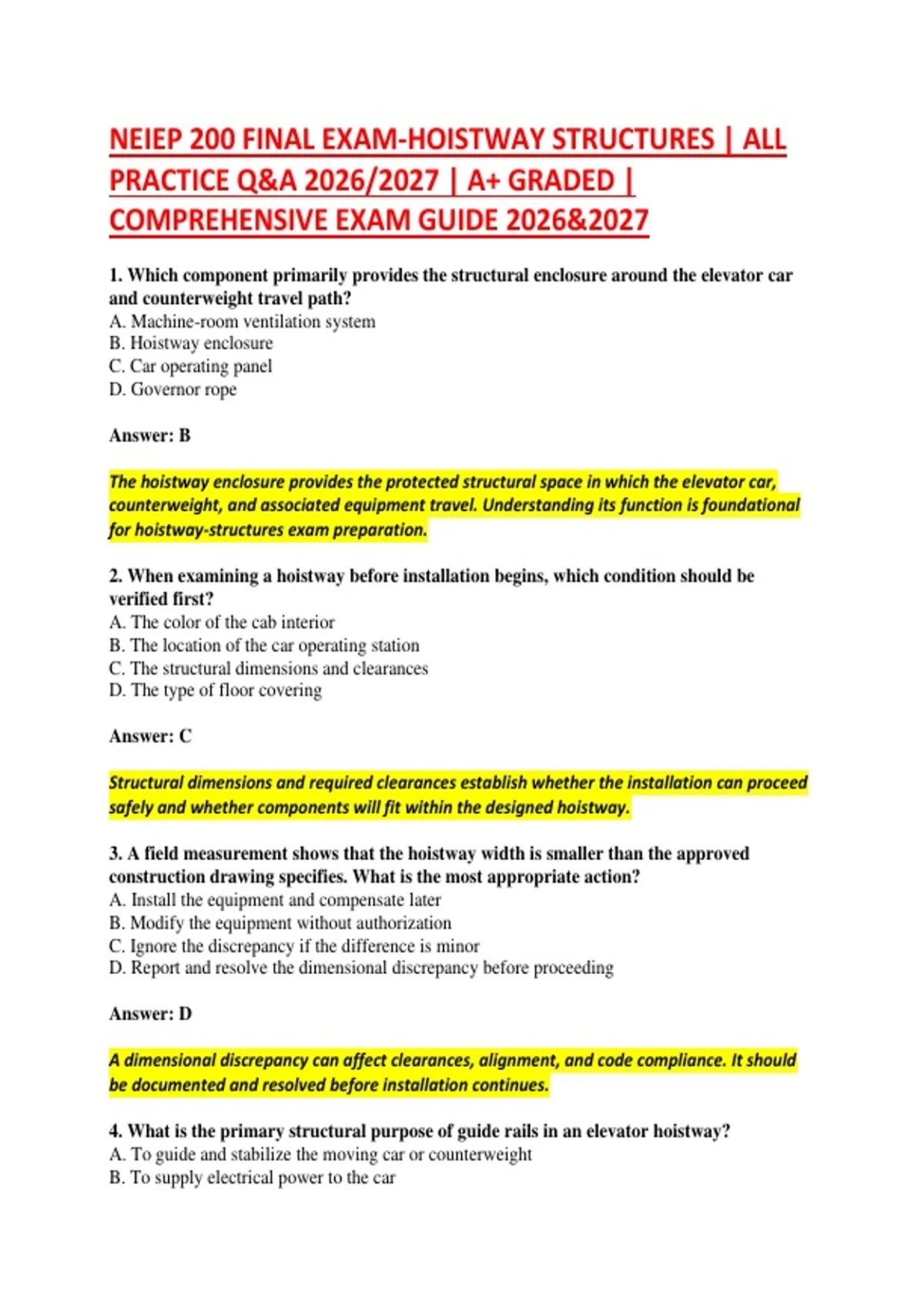

NEIEP 200 FINAL EXAM-HOISTWAY STRUCTURES | ALL
PRACTICE Q&A 2026/2027 | A+ GRADED |
COMPREHENSIVE EXAM GUIDE 2026&2027
1. Which component primarily provides the structural enclosure around the elevator car
and counterweight travel path?
A. Machine-room ventilation system
B. Hoistway enclosure
C. Car operating panel
D. Governor rope
Answer: B
The hoistway enclosure provides the protected structural space in which the elevator car,
counterweight, and associated equipment travel. Understanding its function is foundational
for hoistway-structures exam preparation.
2. When examining a hoistway before installation begins, which condition should be
verified first?
A. The color of the cab interior
B. The location of the car operating station
C. The structural dimensions and clearances
D. The type of floor covering
Answer: C
Structural dimensions and required clearances establish whether the installation can proceed
safely and whether components will fit within the designed hoistway.
3. A field measurement shows that the hoistway width is smaller than the approved
construction drawing specifies. What is the most appropriate action?
A. Install the equipment and compensate later
B. Modify the equipment without authorization
C. Ignore the discrepancy if the difference is minor
D. Report and resolve the dimensional discrepancy before proceeding
Answer: D
A dimensional discrepancy can affect clearances, alignment, and code compliance. It should
be documented and resolved before installation continues.
4. What is the primary structural purpose of guide rails in an elevator hoistway?
A. To guide and stabilize the moving car or counterweight
B. To supply electrical power to the car
,C. To ventilate the hoistway
D. To support the building roof
Answer: A
Guide rails provide the controlled vertical path for the car and counterweight and help resist
lateral movement during operation.
5. Which condition would most directly interfere with accurate guide-rail installation?
A. A clean machine room
B. An improperly located bracket support
C. A newly painted landing door
D. A properly labeled disconnect
Answer: B
Guide-rail brackets must be correctly positioned and securely supported. Incorrect bracket
placement can produce alignment problems throughout the hoistway.
6. During a structural inspection, a technician discovers cracking in a concrete wall where
a major bracket is scheduled to be anchored. What should the technician do?
A. Anchor directly through the crack
B. Fill the crack with ordinary paint
C. Stop and have the structural condition evaluated
D. Reduce the number of anchors without approval
Answer: C
A structural crack at an anchorage location may compromise the support capacity. The
condition should be evaluated before the bracket is installed.
7. Why are hoistway dimensions normally checked at multiple elevations?
A. To determine paint coverage
B. To verify that dimensions remain consistent throughout the travel path
C. To calculate passenger capacity
D. To select the car operating buttons
Answer: B
A hoistway can vary in width, depth, plumbness, or alignment at different elevations.
Multiple measurements identify conditions that a single measurement could miss.
8. Which tool is especially useful for checking whether a vertical reference line remains
aligned through a hoistway?
A. Torque wrench
B. Pipe cutter
,C. Plumb line or suitable laser alignment instrument
D. Cable stripper
Answer: C
Vertical alignment is critical to guide-rail and equipment installation, and plumb or laser-
based instruments provide appropriate reference information.
9. A hoistway wall is found to be significantly out of plumb. What is the principal concern?
A. It may reduce required clearances or interfere with equipment alignment
B. It will automatically increase elevator speed
C. It will improve ventilation
D. It will eliminate the need for guide rails
Answer: A
An out-of-plumb structure can reduce clearances and complicate the accurate installation of
brackets, rails, doors, and other hoistway equipment.
10. Which practice best supports accurate hoistway layout?
A. Measuring only after equipment arrives
B. Relying entirely on visual estimates
C. Establishing controlled reference lines and verifying dimensions
D. Using the nearest wall as the only reference
Answer: C
Controlled reference lines provide consistent points from which dimensions and equipment
locations can be established and checked.
11. What is the primary function of a guide-rail bracket?
A. To support and secure the guide rail to the building structure
B. To operate the landing door
C. To control car lighting
D. To measure elevator speed
Answer: A
Guide-rail brackets transfer rail-support loads into the building structure and maintain the
intended rail position.
12. A bracket is installed on a surface that was not designed to carry the specified load.
What is the primary risk?
A. Increased cab lighting
B. Structural failure or inadequate support
, C. Reduced door chime volume
D. Increased ventilation
Answer: B
The support surface must have adequate capacity for the loads imposed by the elevator
system. An unsuitable anchorage can compromise the installation.
13. When installing structural anchors, why is the manufacturer's specified installation
procedure important?
A. It determines the color of the anchor
B. It ensures the anchor can develop its intended capacity
C. It eliminates the need for inspection
D. It changes the elevator's rated speed
Answer: B
Anchor performance depends on factors such as hole preparation, embedment, installation
method, and substrate condition.
14. What should be done if an installed anchor does not meet the specified embedment
depth?
A. Assume it is acceptable because it is tight
B. Paint over the anchor
C. Follow the approved corrective procedure before relying on it
D. Add unrelated hardware nearby
Answer: C
Insufficient embedment may reduce load capacity. The anchor should be corrected or
otherwise addressed according to approved engineering and installation requirements.
15. Which condition is most important when selecting an anchorage location for a guide-
rail bracket?
A. Proximity to decorative trim
B. Adequate structural capacity and required geometry
C. Matching wall color
D. Distance from the elevator lobby
Answer: B
The anchorage must be capable of resisting the applicable loads while allowing the bracket
and rail to be installed in the required position.
16. What is the purpose of maintaining proper guide-rail alignment?
A. To minimize uncontrolled lateral movement and maintain smooth travel
