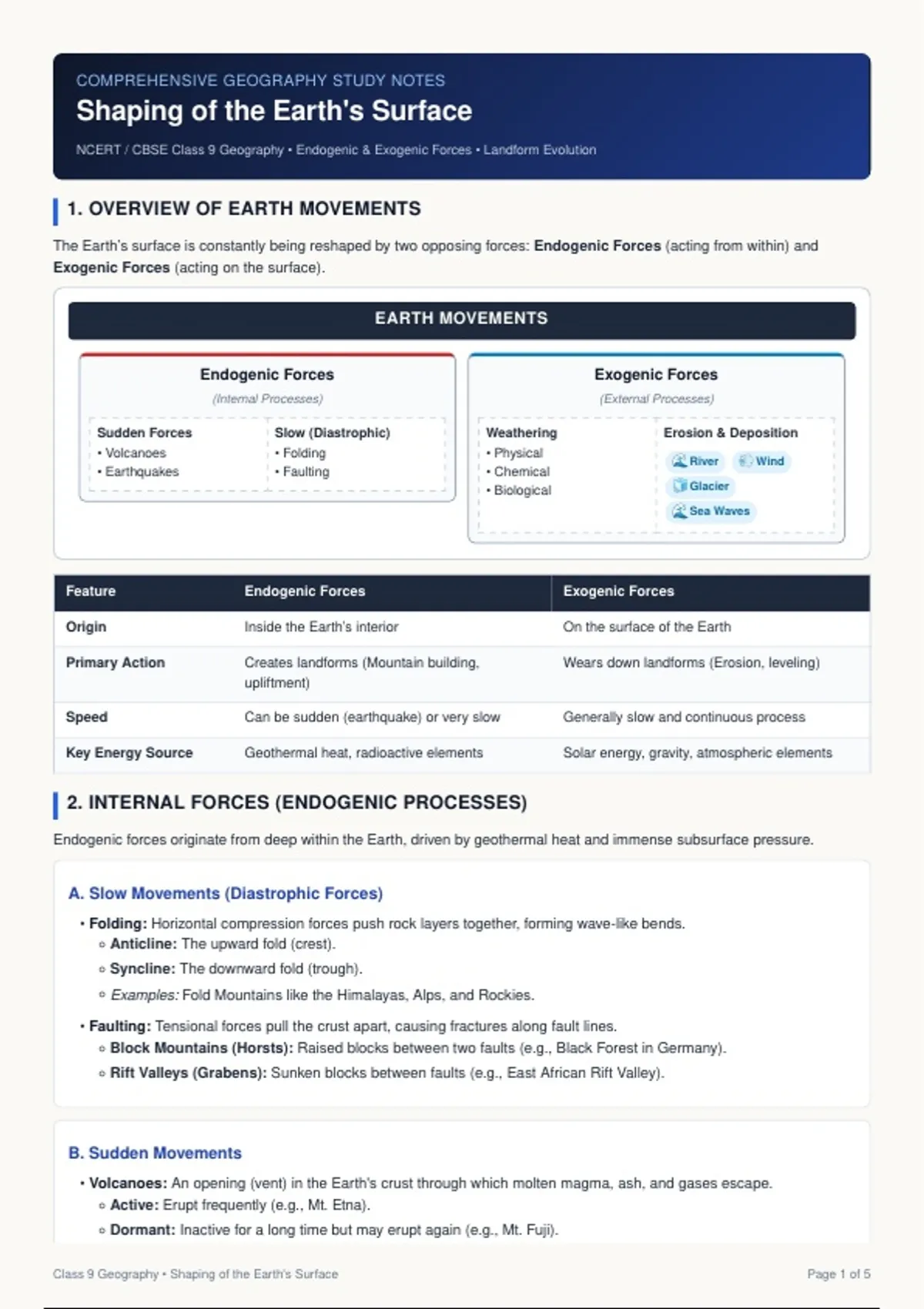

COMPREHENSIVE GEOGRAPHY STUDY NOTES
Shaping of the Earth's Surface
NCERT / CBSE Class 9 Geography • Endogenic & Exogenic Forces • Landform Evolution
1. OVERVIEW OF EARTH MOVEMENTS
The Earth’s surface is constantly being reshaped by two opposing forces: Endogenic Forces (acting from within) and
Exogenic Forces (acting on the surface).
EARTH MOVEMENTS
Endogenic Forces Exogenic Forces
(Internal Processes) (External Processes)
Sudden Forces Slow (Diastrophic) Weathering Erosion & Deposition
• Volcanoes • Folding • Physical
🌊 River 💨 Wind
• Earthquakes • Faulting • Chemical
• Biological 🧊 Glacier
🌊 Sea Waves
Feature Endogenic Forces Exogenic Forces
Origin Inside the Earth’s interior On the surface of the Earth
Primary Action Creates landforms (Mountain building, Wears down landforms (Erosion, leveling)
upliftment)
Speed Can be sudden (earthquake) or very slow Generally slow and continuous process
Key Energy Source Geothermal heat, radioactive elements Solar energy, gravity, atmospheric elements
2. INTERNAL FORCES (ENDOGENIC PROCESSES)
Endogenic forces originate from deep within the Earth, driven by geothermal heat and immense subsurface pressure.
A. Slow Movements (Diastrophic Forces)
• Folding: Horizontal compression forces push rock layers together, forming wave-like bends.
◦ Anticline: The upward fold (crest).
◦ Syncline: The downward fold (trough).
◦ Examples: Fold Mountains like the Himalayas, Alps, and Rockies.
• Faulting: Tensional forces pull the crust apart, causing fractures along fault lines.
◦ Block Mountains (Horsts): Raised blocks between two faults (e.g., Black Forest in Germany).
◦ Rift Valleys (Grabens): Sunken blocks between faults (e.g., East African Rift Valley).
B. Sudden Movements
• Volcanoes: An opening (vent) in the Earth's crust through which molten magma, ash, and gases escape.
◦ Active: Erupt frequently (e.g., Mt. Etna).
◦ Dormant: Inactive for a long time but may erupt again (e.g., Mt. Fuji).
Class 9 Geography • Shaping of the Earth's Surface Page 1 of 5
, ◦ Extinct: Unlikely to erupt again (e.g., Mt. Kilimanjaro).
• Earthquakes: Sudden shaking of the Earth's crust caused by tectonic plate movement/friction.
◦ Focus: The exact point inside the crust where the seismic energy releases.
◦ Epicenter: The point on the Earth's surface directly above the Focus.
3. EXTERNAL FORCES (EXOGENIC PROCESSES)
Exogenic processes work through two main phases: Weathering (decay and breakdown in place) and Denudation (wearing
away via mobile agents).
Weathering (Disintegration of Rocks)
• Physical Weathering: Temperature fluctuations cause rocks to expand during day and contract at night until they
crack and shatter.
• Chemical Weathering: Minerals in rocks react chemically with water, oxygen, or acids (e.g., rust formation on iron
minerals, limestone dissolving).
• Biological Weathering: Plants, animals, and human activities break rocks apart (e.g., tree roots expanding inside
rock cracks).
4. KEY AGENTS OF LANDFORM FORMATION
🌊 1. Running Water (Rivers)
Rivers carve landscapes from mountains to oceans across three distinct stages:
• Upper Course (Erosional):
◦ V-Shaped Valleys & Gorges: Vertical erosion cuts deep into steep bedrock.
◦ Waterfalls: Formed when river water flows over hard rock onto soft rock layer beneath, rapidly eroding the soft layer.
• Middle Course (Transportation):
◦ Meanders: S-shaped curves formed by lateral erosion on outer bends and deposition on inner bends.
• Lower Course (Depositional):
◦ Oxbow Lakes: Formed when a meander neck gets cut off during floods, leaving an isolated crescent lake.
◦ Deltas: Triangular landforms created at river mouths where silt deposits accumulate before entering sea.
💨 2. Wind (Aeolian Landforms)
Prominent in arid and desert regions where vegetation cover is scarce:
• Mushroom Rocks: Narrow base with a wide top, formed because wind erosion is strongest near ground level (1–2 meters
high).
• Sand Dunes: Mounds of sand deposited by wind when it encounters an obstacle.
• Loess: Fine, yellow silt carried over long distances and deposited over large regions (e.g., Loess Plateau in China).
🧊 3. Glaciers (Moving Bodies of Ice)
• U-Shaped Valleys: Steep-sided, flat-bottomed valleys carved out by glacial erosion and plucking action.
• Cirques: Deep, bowl-shaped depressions on mountain sides carved by glacial ice.
• Moraines: Accumulations of dirt, rocks, and glacial debris left behind by melting glaciers.
🌊 4. Sea Waves
Coastal landforms created by constant hydraulic action and wave abrasion:
• Sea Cave: Hollowed-out caves formed on coastal cliffs by continuous wave action.
Class 9 Geography • Shaping of the Earth's Surface Page 2 of 5
Shaping of the Earth's Surface
NCERT / CBSE Class 9 Geography • Endogenic & Exogenic Forces • Landform Evolution
1. OVERVIEW OF EARTH MOVEMENTS
The Earth’s surface is constantly being reshaped by two opposing forces: Endogenic Forces (acting from within) and
Exogenic Forces (acting on the surface).
EARTH MOVEMENTS
Endogenic Forces Exogenic Forces
(Internal Processes) (External Processes)
Sudden Forces Slow (Diastrophic) Weathering Erosion & Deposition
• Volcanoes • Folding • Physical
🌊 River 💨 Wind
• Earthquakes • Faulting • Chemical
• Biological 🧊 Glacier
🌊 Sea Waves
Feature Endogenic Forces Exogenic Forces
Origin Inside the Earth’s interior On the surface of the Earth
Primary Action Creates landforms (Mountain building, Wears down landforms (Erosion, leveling)
upliftment)
Speed Can be sudden (earthquake) or very slow Generally slow and continuous process
Key Energy Source Geothermal heat, radioactive elements Solar energy, gravity, atmospheric elements
2. INTERNAL FORCES (ENDOGENIC PROCESSES)
Endogenic forces originate from deep within the Earth, driven by geothermal heat and immense subsurface pressure.
A. Slow Movements (Diastrophic Forces)
• Folding: Horizontal compression forces push rock layers together, forming wave-like bends.
◦ Anticline: The upward fold (crest).
◦ Syncline: The downward fold (trough).
◦ Examples: Fold Mountains like the Himalayas, Alps, and Rockies.
• Faulting: Tensional forces pull the crust apart, causing fractures along fault lines.
◦ Block Mountains (Horsts): Raised blocks between two faults (e.g., Black Forest in Germany).
◦ Rift Valleys (Grabens): Sunken blocks between faults (e.g., East African Rift Valley).
B. Sudden Movements
• Volcanoes: An opening (vent) in the Earth's crust through which molten magma, ash, and gases escape.
◦ Active: Erupt frequently (e.g., Mt. Etna).
◦ Dormant: Inactive for a long time but may erupt again (e.g., Mt. Fuji).
Class 9 Geography • Shaping of the Earth's Surface Page 1 of 5
, ◦ Extinct: Unlikely to erupt again (e.g., Mt. Kilimanjaro).
• Earthquakes: Sudden shaking of the Earth's crust caused by tectonic plate movement/friction.
◦ Focus: The exact point inside the crust where the seismic energy releases.
◦ Epicenter: The point on the Earth's surface directly above the Focus.
3. EXTERNAL FORCES (EXOGENIC PROCESSES)
Exogenic processes work through two main phases: Weathering (decay and breakdown in place) and Denudation (wearing
away via mobile agents).
Weathering (Disintegration of Rocks)
• Physical Weathering: Temperature fluctuations cause rocks to expand during day and contract at night until they
crack and shatter.
• Chemical Weathering: Minerals in rocks react chemically with water, oxygen, or acids (e.g., rust formation on iron
minerals, limestone dissolving).
• Biological Weathering: Plants, animals, and human activities break rocks apart (e.g., tree roots expanding inside
rock cracks).
4. KEY AGENTS OF LANDFORM FORMATION
🌊 1. Running Water (Rivers)
Rivers carve landscapes from mountains to oceans across three distinct stages:
• Upper Course (Erosional):
◦ V-Shaped Valleys & Gorges: Vertical erosion cuts deep into steep bedrock.
◦ Waterfalls: Formed when river water flows over hard rock onto soft rock layer beneath, rapidly eroding the soft layer.
• Middle Course (Transportation):
◦ Meanders: S-shaped curves formed by lateral erosion on outer bends and deposition on inner bends.
• Lower Course (Depositional):
◦ Oxbow Lakes: Formed when a meander neck gets cut off during floods, leaving an isolated crescent lake.
◦ Deltas: Triangular landforms created at river mouths where silt deposits accumulate before entering sea.
💨 2. Wind (Aeolian Landforms)
Prominent in arid and desert regions where vegetation cover is scarce:
• Mushroom Rocks: Narrow base with a wide top, formed because wind erosion is strongest near ground level (1–2 meters
high).
• Sand Dunes: Mounds of sand deposited by wind when it encounters an obstacle.
• Loess: Fine, yellow silt carried over long distances and deposited over large regions (e.g., Loess Plateau in China).
🧊 3. Glaciers (Moving Bodies of Ice)
• U-Shaped Valleys: Steep-sided, flat-bottomed valleys carved out by glacial erosion and plucking action.
• Cirques: Deep, bowl-shaped depressions on mountain sides carved by glacial ice.
• Moraines: Accumulations of dirt, rocks, and glacial debris left behind by melting glaciers.
🌊 4. Sea Waves
Coastal landforms created by constant hydraulic action and wave abrasion:
• Sea Cave: Hollowed-out caves formed on coastal cliffs by continuous wave action.
Class 9 Geography • Shaping of the Earth's Surface Page 2 of 5
