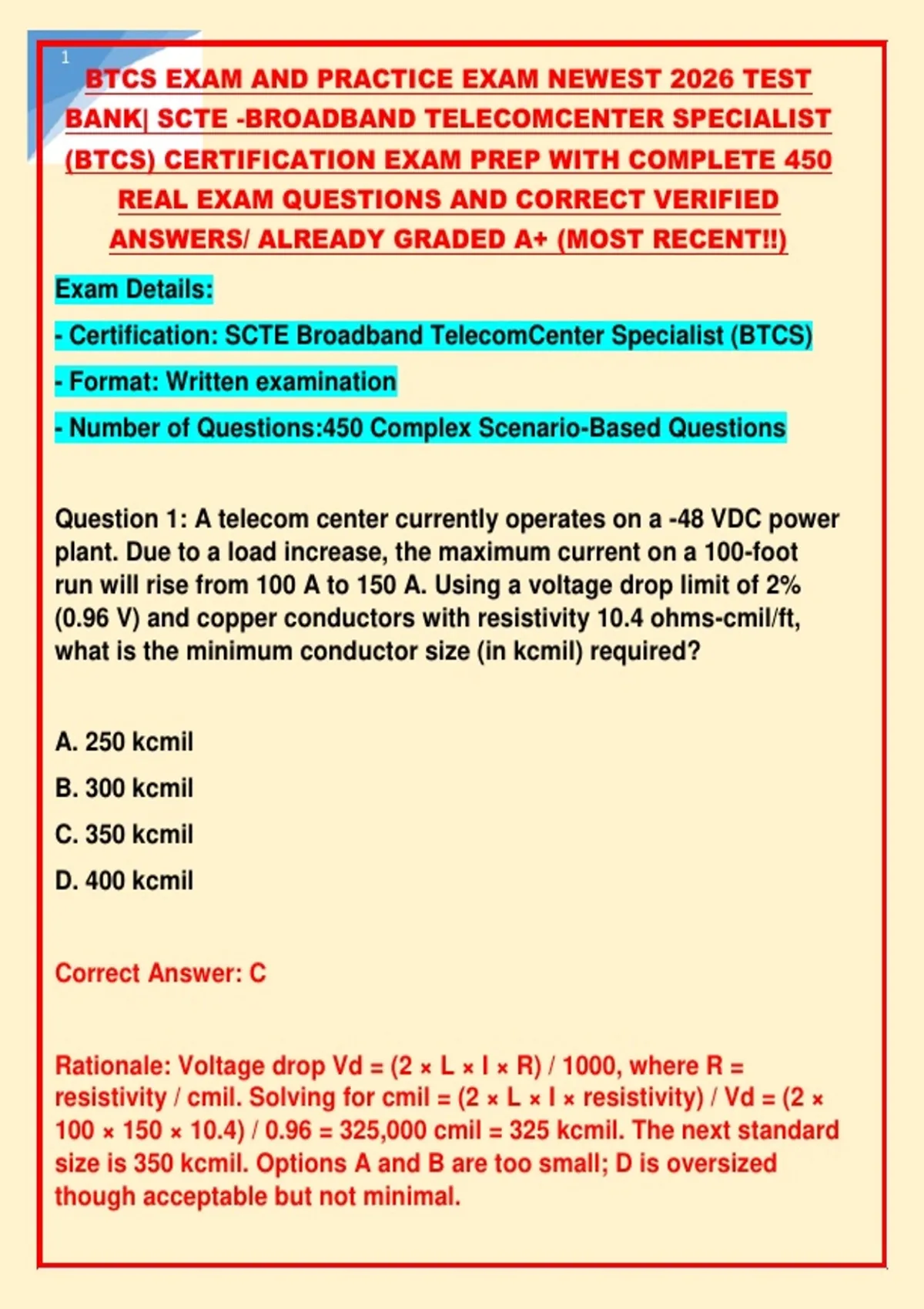

1
BTCS EXAM AND PRACTICE EXAM NEWEST 2026 TEST
BANK| SCTE -BROADBAND TELECOMCENTER SPECIALIST
(BTCS) CERTIFICATION EXAM PREP WITH COMPLETE 450
REAL EXAM QUESTIONS AND CORRECT VERIFIED
ANSWERS/ ALREADY GRADED A+ (MOST RECENT!!)
Exam Details:
- Certification: SCTE Broadband TelecomCenter Specialist (BTCS)
- Format: Written examination
- Number of Questions:450 Complex Scenario-Based Questions
Question 1: A telecom center currently operates on a -48 VDC power
plant. Due to a load increase, the maximum current on a 100-foot
run will rise from 100 A to 150 A. Using a voltage drop limit of 2%
(0.96 V) and copper conductors with resistivity 10.4 ohms-cmil/ft,
what is the minimum conductor size (in kcmil) required?
A. 250 kcmil
B. 300 kcmil
C. 350 kcmil
D. 400 kcmil
Correct Answer: C
Rationale: Voltage drop Vd = (2 × L × I × R) / 1000, where R =
resistivity / cmil. Solving for cmil = (2 × L × I × resistivity) / Vd = (2 ×
100 × 150 × 10.4) / 0.96 = 325,000 cmil = 325 kcmil. The next standard
size is 350 kcmil. Options A and B are too small; D is oversized
though acceptable but not minimal.
,2
Question 2:** According to TIA-607-B, what is the minimum cross-
sectional area of the bonding conductor between two equipment
racks if the total circuit length is 75 feet and the available fault
current is 10 kA?
A. 6 AWG (13.3 mm²)
B. 4 AWG (21.2 mm²)
C. 2 AWG (33.6 mm²)
D. 1/0 AWG (53.5 mm²)
Correct Answer: B
Rationale: TIA-607-B Table 4 requires a minimum bonding
conductor size based on the longest run between racks. For a run of
75 ft and fault current up to 10 kA, the table specifies 4 AWG (21.2
mm²). Option A is undersized; options C and D exceed the minimum
requirement but are not necessary.
Question 3: You are evaluating fire suppression options for a data
center containing sensitive electronics. For each agent below,
determine if it is recommended (Anticipated), not recommended
(Contraindicated), or requires special conditions (Conditional).
A. Correct as shown
B. Incorrect
C. Need re-evaluation
D. Not applicable
,3
Correct Answer: A
Rationale: FM-200 and Novec 1230 are clean agents suitable for
electronics. CO₂ is safe for electronics but poses an asphyxiation
risk, requiring pre-discharge alarms and delays (Conditional). Water
mist is generally safe for live electronics if deionized, but may cause
shorting (Contraindicated due to risk). Dry chemical leaves
corrosive residue, damaging electronics (Contraindicated).
Question 4: A data center implements hot aisle containment. During
commissioning, sensors show that temperatures in the cold aisle
exceed the ASHRAE recommended maximum of 27°C. What is the
most probable cause?
A. Insufficient perforated tile open area
B. Recirculation of hot aisle air through gaps in containment
C. CRAH unit setpoint too high
D. Humidistat setpoint too low
Correct Answer: B
Rationale: Hot aisle containment recirculation occurs when gaps
allow hot air to bypass the return path and mix with cold air, raising
cold aisle temperatures. Option A reduces airflow but does not
directly cause mixing. Option C would raise supply temperature, not
cold aisle specifically. Option D affects humidity, not temperature.
, 4
Question 5: When installing single-mode fiber optic cable (OS2) and
RG-6 coaxial cable in the same overhead cable tray, what is the
primary concern regarding minimum bend radius?
A. Fiber has a stricter bend radius (10 mm) than coaxial cable
B. Coaxial cable has a stricter bend radius than fiber
C. Both cables have identical bend radius requirements
D. Bend radius is not a concern for either cable type
Correct Answer: A
Rationale: Single-mode fiber optic cable typically requires a
minimum bend radius of 10 mm (or 20× the cable outer diameter),
which is stricter than the bend radius requirements for RG-6 coaxial
cable. Exceeding the minimum bend radius for fiber can cause
macrobending losses and signal attenuation.
Question 6: A field technician measures excessive ingress affecting
multiple upstream channels in a residential node. Which action
should be performed first?
A. Increase amplifier output levels throughout the cascade
B. Segment the node immediately without additional testing
C. Isolate the ingress source using sectional testing from the node
toward customer drops
D. Replace all active amplifiers
