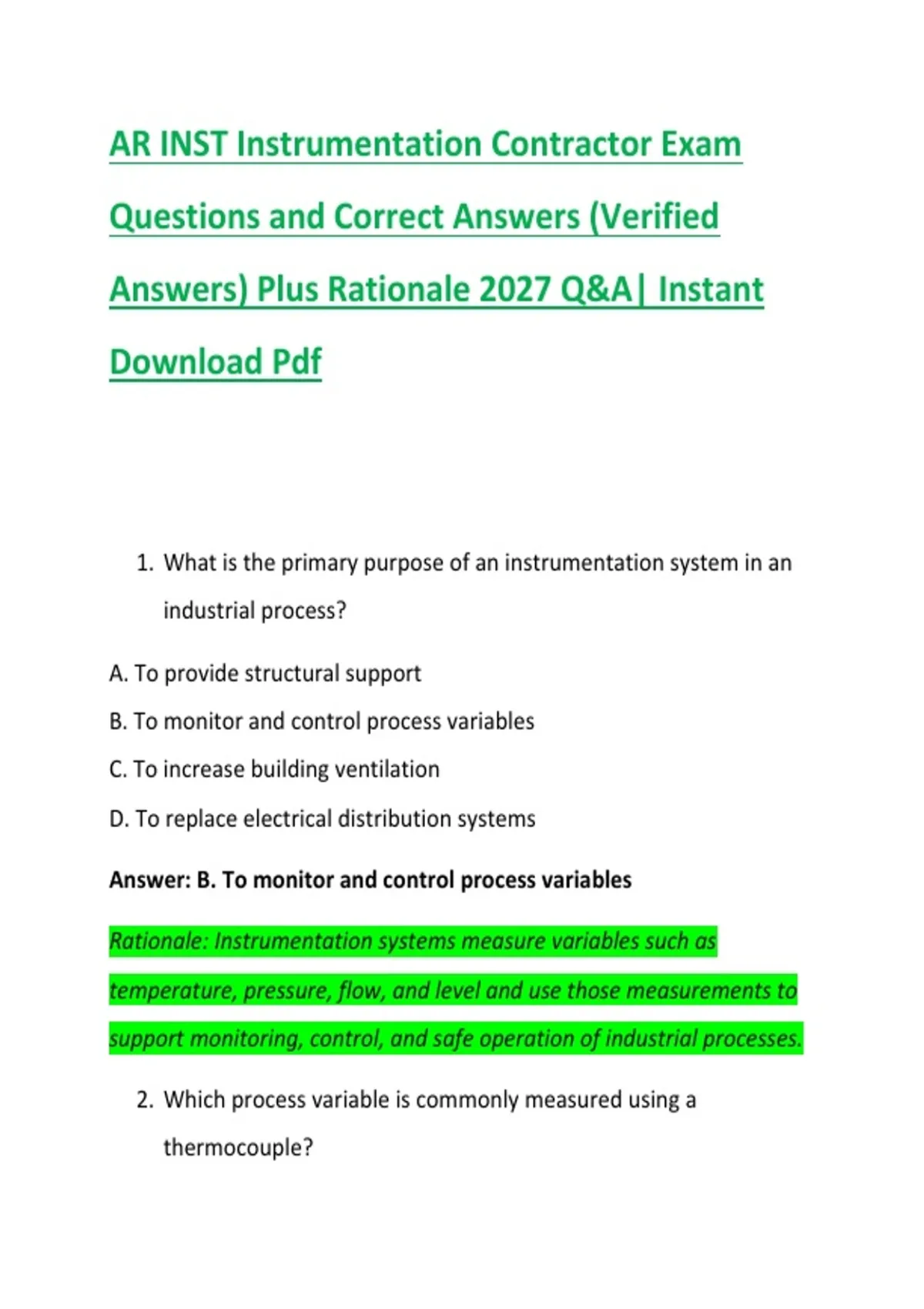

AR INST Instrumentation Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
1. What is the primary purpose of an instrumentation system in an
industrial process?
A. To provide structural support
B. To monitor and control process variables
C. To increase building ventilation
D. To replace electrical distribution systems
Answer: B. To monitor and control process variables
Rationale: Instrumentation systems measure variables such as
temperature, pressure, flow, and level and use those measurements to
support monitoring, control, and safe operation of industrial processes.
2. Which process variable is commonly measured using a
thermocouple?
,A. Pressure
B. Flow
C. Temperature
D. Liquid level
Answer: C. Temperature
Rationale: A thermocouple produces a small voltage related to the
temperature difference between its measuring junction and reference
junction. It is widely used for industrial temperature measurement.
3. What is the most common standard current signal used in
industrial analog instrumentation?
A. 0–1 mA
B. 1–5 mA
C. 4–20 mA
D. 20–40 mA
Answer: C. 4–20 mA
Rationale: The 4–20 mA signal is a widely used industrial standard. The
live zero of 4 mA allows a control system to distinguish a valid zero
measurement from an open circuit or loss of signal.
4. In a 4–20 mA system, what current normally represents 0% of the
measured range?
,A. 0 mA
B. 2 mA
C. 4 mA
D. 10 mA
Answer: C. 4 mA
Rationale: A properly configured 4–20 mA transmitter uses 4 mA as the
lower range value and 20 mA as the upper range value.
5. A pressure transmitter is ranged from 0 to 200 psi. Approximately
what pressure does a 12 mA output represent?
A. 50 psi
B. 75 psi
C. 100 psi
D. 150 psi
Answer: C. 100 psi
Rationale: The 12 mA signal is halfway between 4 and 20 mA. Half of
the 0–200 psi range is 100 psi, so 12 mA represents approximately 100
psi.
6. Which instrument is designed to measure differential pressure?
A. Differential-pressure transmitter
B. RTD
, C. Thermocouple
D. Tachometer
Answer: A. Differential-pressure transmitter
Rationale: A differential-pressure transmitter measures the difference
between pressure at two sensing points. It is commonly used for flow,
level, and filter-monitoring applications.
7. What does an RTD primarily measure?
A. Temperature
B. Flow velocity
C. Pressure
D. Electrical power
Answer: A. Temperature
Rationale: A resistance temperature detector (RTD) determines
temperature by measuring the predictable change in electrical
resistance of its sensing element.
8. Which RTD sensing element is commonly used in industrial
temperature measurement?
A. Platinum
B. Copper sulfate
