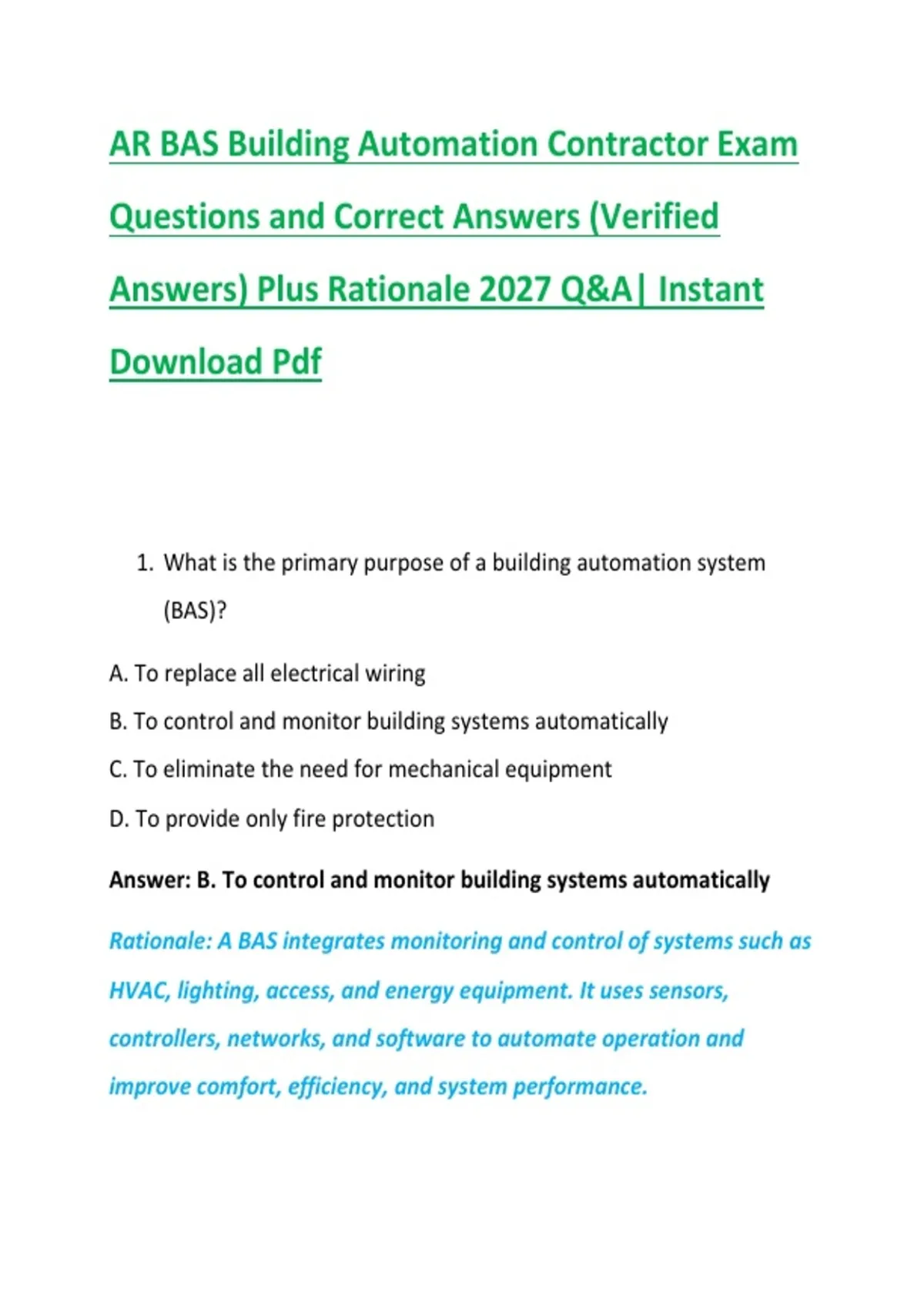

AR BAS Building Automation Contractor Exam
Questions and Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A| Instant
Download Pdf
1. What is the primary purpose of a building automation system
(BAS)?
A. To replace all electrical wiring
B. To control and monitor building systems automatically
C. To eliminate the need for mechanical equipment
D. To provide only fire protection
Answer: B. To control and monitor building systems automatically
Rationale: A BAS integrates monitoring and control of systems such as
HVAC, lighting, access, and energy equipment. It uses sensors,
controllers, networks, and software to automate operation and
improve comfort, efficiency, and system performance.
, 2. Which component typically measures the temperature of a
conditioned space?
A. Actuator
B. Relay
C. Temperature sensor
D. Transformer
Answer: C. Temperature sensor
Rationale: A temperature sensor detects the actual temperature of an
area and sends a signal to a controller. The controller can compare the
measured value with the programmed setpoint and initiate
appropriate equipment operation.
3. In a typical BAS, what is a setpoint?
A. The maximum voltage supplied to a controller
B. A desired operating value for a controlled variable
C. The physical location of a sensor
D. A network communication cable
Answer: B. A desired operating value for a controlled variable
Rationale: A setpoint is the target value that the control system
attempts to maintain. For example, a zone temperature setpoint
,might be 72°F, with the BAS adjusting heating or cooling equipment to
maintain that condition.
4. Which device converts a controller's electrical control signal into
mechanical movement?
A. Sensor
B. Actuator
C. Thermistor
D. Transmitter
Answer: B. Actuator
Rationale: An actuator receives a control signal and physically moves
a damper, valve, or other mechanical component. Electric, pneumatic,
and electrohydraulic actuators are commonly used in building control
applications.
5. What is the function of a damper actuator in an air-handling
system?
A. To measure airflow temperature
B. To open or close an air damper
C. To increase electrical voltage
D. To filter supply air
Answer: B. To open or close an air damper
, Rationale: A damper actuator positions an air damper according to
the controller's command. Modulating actuators can position
dampers at intermediate percentages to regulate airflow, while two-
position actuators generally provide open or closed operation.
6. Which control signal is commonly used for proportional analog
control?
A. 120 VAC
B. 24 VAC power only
C. 0–10 VDC
D. 480 VAC
Answer: C. 0–10 VDC
Rationale: A 0–10 VDC signal is widely used for analog modulation in
BAS applications. Depending on the device, 0 V may represent
minimum output and 10 V maximum output, although the exact
scaling must be verified from the manufacturer's documentation.
7. What is the purpose of a BAS controller?
A. To physically circulate chilled water
B. To process inputs and execute programmed control logic
C. To provide building structural support
D. To replace all field wiring
