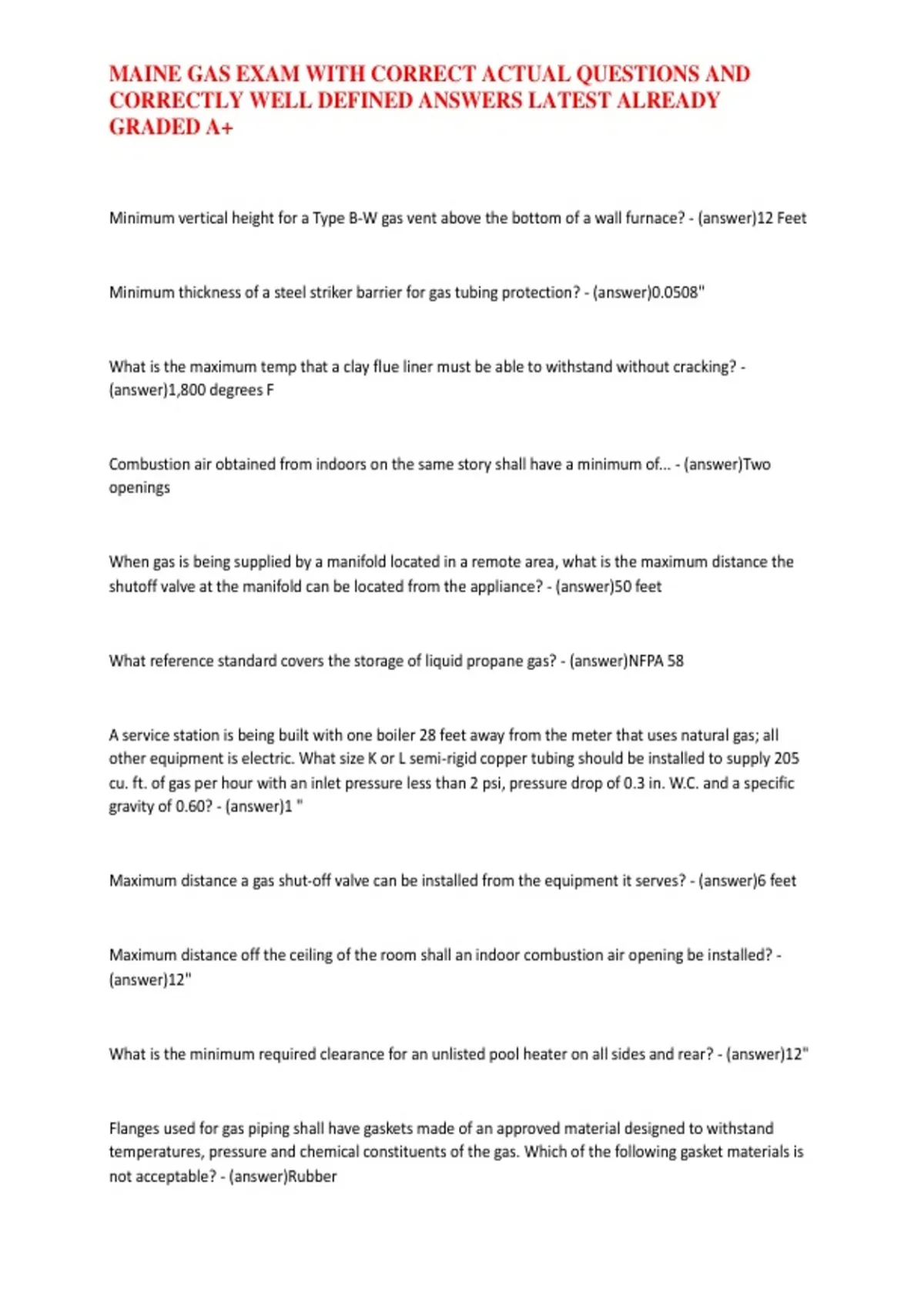

MAINE GAS EXAM WITH CORRECT ACTUAL QUESTIONS AND
CORRECTLY WELL DEFINED ANSWERS LATEST ALREADY
GRADED A+
Minimum vertical height for a Type B-W gas vent above the bottom of a wall furnace? - (answer)12 Feet
Minimum thickness of a steel striker barrier for gas tubing protection? - (answer)0.0508"
What is the maximum temp that a clay flue liner must be able to withstand without cracking? -
(answer)1,800 degrees F
Combustion air obtained from indoors on the same story shall have a minimum of... - (answer)Two
openings
When gas is being supplied by a manifold located in a remote area, what is the maximum distance the
shutoff valve at the manifold can be located from the appliance? - (answer)50 feet
What reference standard covers the storage of liquid propane gas? - (answer)NFPA 58
A service station is being built with one boiler 28 feet away from the meter that uses natural gas; all
other equipment is electric. What size K or L semi-rigid copper tubing should be installed to supply 205
cu. ft. of gas per hour with an inlet pressure less than 2 psi, pressure drop of 0.3 in. W.C. and a specific
gravity of 0.60? - (answer)1 "
Maximum distance a gas shut-off valve can be installed from the equipment it serves? - (answer)6 feet
Maximum distance off the ceiling of the room shall an indoor combustion air opening be installed? -
(answer)12"
What is the minimum required clearance for an unlisted pool heater on all sides and rear? - (answer)12"
Flanges used for gas piping shall have gaskets made of an approved material designed to withstand
temperatures, pressure and chemical constituents of the gas. Which of the following gasket materials is
not acceptable? - (answer)Rubber
, MAINE GAS EXAM WITH CORRECT ACTUAL QUESTIONS AND
CORRECTLY WELL DEFINED ANSWERS LATEST ALREADY
GRADED A+
When corrosive or flammable fumes or gases are present near appliances, a safe disposal method shall
be provided. All of the following are considered flammable or corrosive EXCEPT?! - (answer)Anhydrous
Citric Acid
When a mechanical appliance is installed in an excavation deeper than 12", what shall the excavation be
lined with? - (answer)Copper pan
Which type of regulator is used in series with an another pressure regulator for the purpose of
automatically taking over in an emergency the control of the pressure down stream in case the pressure
tends to exceed a set maximum? - (answer)Monitoring
When more than 2 90° elbow's are required in a vent connector, the maximum capacity of the connector
shall be reduced for each additional 90° elbow by? - (answer)10%
What is the minimum test pressure that can be used for testing newly installed gas piping? - (answer)3
psig
What is the minimum vertical distance to the bottom of a combustion air intake located on the exterior
of a building above adjacent finish ground level? - (answer)12"
A residential boiler or furnace with a listed gas conversion burner and draft hood with a type B gas vent
shall have a minimum clearance from combustible materials of? - (answer)6"
What is the maximum btu/hr input for an unlisted decorative appliance installed in a vented fireplace
with an 18 foot tall chimney and permanent free opening area of 29 in.²? - (answer)50,400 BTU
All of the following piping materials are approved to be used for gas piping except... - (answer)Cast Iron
What is the minimum size dimension of outdoor combustion air openings? - (answer)3"
