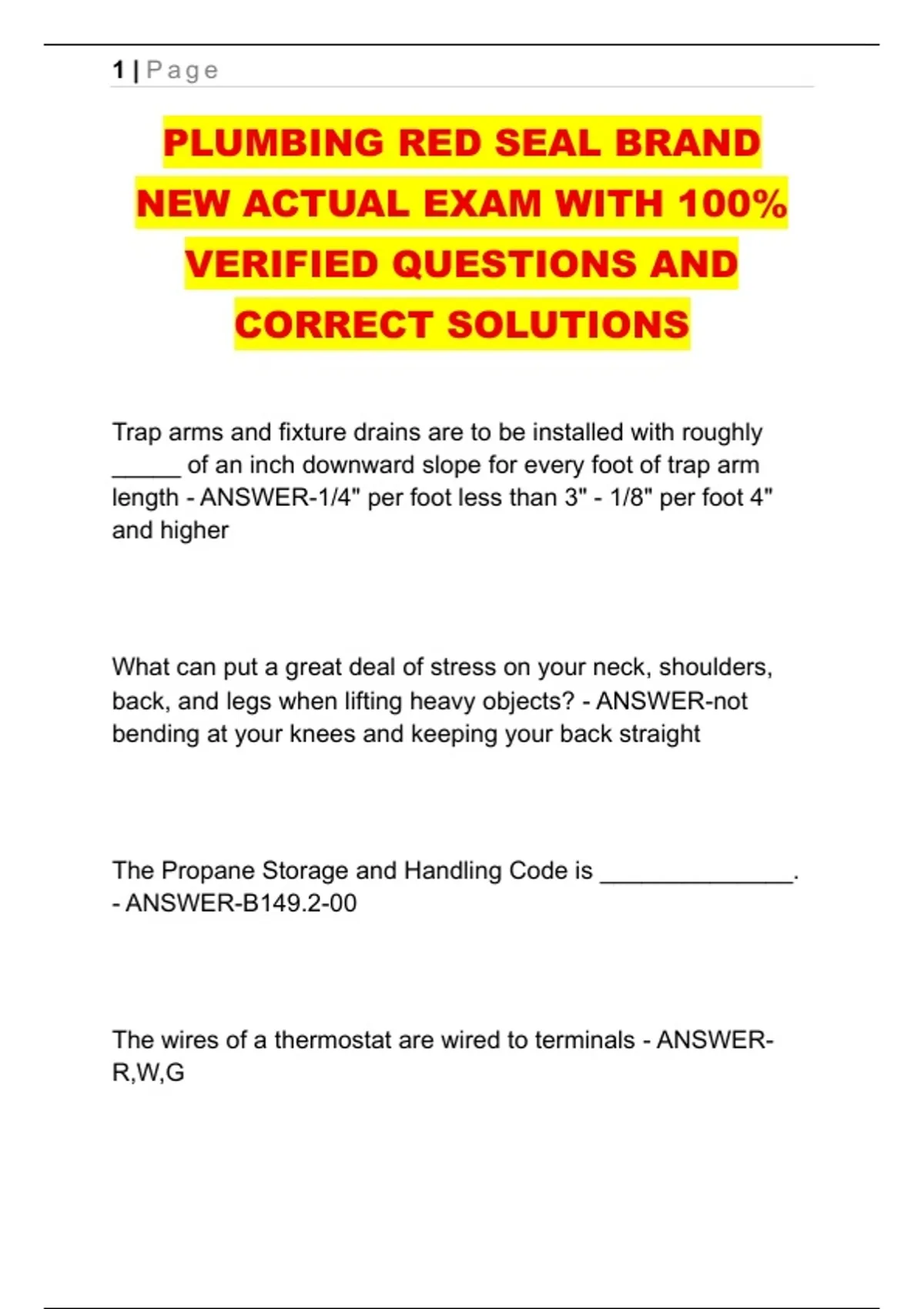

1 | Page
PLUMBING RED SEAL BRAND
NEW ACTUAL EXAM WITH 100%
VERIFIED QUESTIONS AND
CORRECT SOLUTIONS
Trap arms and fixture drains are to be installed with roughly
_____ of an inch downward slope for every foot of trap arm
length - ANSWER-1/4" per foot less than 3" - 1/8" per foot 4"
and higher
What can put a great deal of stress on your neck, shoulders,
back, and legs when lifting heavy objects? - ANSWER-not
bending at your knees and keeping your back straight
The Propane Storage and Handling Code is ______________.
- ANSWER-B149.2-00
The wires of a thermostat are wired to terminals - ANSWER-
R,W,G
,2 | Page
The ideal location for a circulator pump installed in a hot water
heating system is - ANSWER-on the supply after the expansion
tank
A toilet seat used in a public washroom must be - ANSWER-
elongated open front type
The most common physical characteristics used to measure
the quality of water are: temperature, taste, colour, _________
and odour - ANSWER-turbidity
When using grooved pipe from one manufacturer, the fittings
from another manufacturer may be used. - ANSWER-False
A settlement loop is installed in water distribution lines that are
______ inches or less - ANSWER-2
Which of the following must the base of every soil or waste
stack contain - ANSWER-cleanout and expansion joint
,3 | Page
An oil interceptor would most likely be found in a/an: -
ANSWER-dry cleaning plant.
A water purveyor has the primary responsibility of: - ANSWER-
providing the public with a safe and potable water supply.
A one inch water service to a building may have a _____ valve
as the shut-off valve for the building. - ANSWER-stop-and-drain
An air conditioner that discharges 0.05 L/s of condensate into a
floor drain, would equate to how many fixture units? -
ANSWER-2
After the inspection of a hot water heating system shows that
the system pressure is in excess of the designed operating
pressure. Which device will cause this problem? - ANSWER-
Water-feed valve.
The state in which matter exists can be influence by these two
factors: - ANSWER-temperature and pressure
, 4 | Page
If the zone valve drive motor fails to operate the plumber must:
- ANSWER-replace the defective motor.
A 120 Volt hot surface igniter can reach temperatures up to
____F - ANSWER-2600
Which of the following best describes an electric water heater?
- ANSWER-one with an immersion type element
A trap arm that does not use siphonic action may change
direction in a horizontal plane by up to ____ degrees between
the fixture and the vent fitting - ANSWER-135
The suction pipe from the well to the house should be installed
at a/an _______ slope - ANSWER-upward
The maximum filling density of any propane container must
never exceed ____% of the water capacity stamped on the
container - ANSWER-42
PLUMBING RED SEAL BRAND
NEW ACTUAL EXAM WITH 100%
VERIFIED QUESTIONS AND
CORRECT SOLUTIONS
Trap arms and fixture drains are to be installed with roughly
_____ of an inch downward slope for every foot of trap arm
length - ANSWER-1/4" per foot less than 3" - 1/8" per foot 4"
and higher
What can put a great deal of stress on your neck, shoulders,
back, and legs when lifting heavy objects? - ANSWER-not
bending at your knees and keeping your back straight
The Propane Storage and Handling Code is ______________.
- ANSWER-B149.2-00
The wires of a thermostat are wired to terminals - ANSWER-
R,W,G
,2 | Page
The ideal location for a circulator pump installed in a hot water
heating system is - ANSWER-on the supply after the expansion
tank
A toilet seat used in a public washroom must be - ANSWER-
elongated open front type
The most common physical characteristics used to measure
the quality of water are: temperature, taste, colour, _________
and odour - ANSWER-turbidity
When using grooved pipe from one manufacturer, the fittings
from another manufacturer may be used. - ANSWER-False
A settlement loop is installed in water distribution lines that are
______ inches or less - ANSWER-2
Which of the following must the base of every soil or waste
stack contain - ANSWER-cleanout and expansion joint
,3 | Page
An oil interceptor would most likely be found in a/an: -
ANSWER-dry cleaning plant.
A water purveyor has the primary responsibility of: - ANSWER-
providing the public with a safe and potable water supply.
A one inch water service to a building may have a _____ valve
as the shut-off valve for the building. - ANSWER-stop-and-drain
An air conditioner that discharges 0.05 L/s of condensate into a
floor drain, would equate to how many fixture units? -
ANSWER-2
After the inspection of a hot water heating system shows that
the system pressure is in excess of the designed operating
pressure. Which device will cause this problem? - ANSWER-
Water-feed valve.
The state in which matter exists can be influence by these two
factors: - ANSWER-temperature and pressure
, 4 | Page
If the zone valve drive motor fails to operate the plumber must:
- ANSWER-replace the defective motor.
A 120 Volt hot surface igniter can reach temperatures up to
____F - ANSWER-2600
Which of the following best describes an electric water heater?
- ANSWER-one with an immersion type element
A trap arm that does not use siphonic action may change
direction in a horizontal plane by up to ____ degrees between
the fixture and the vent fitting - ANSWER-135
The suction pipe from the well to the house should be installed
at a/an _______ slope - ANSWER-upward
The maximum filling density of any propane container must
never exceed ____% of the water capacity stamped on the
container - ANSWER-42
