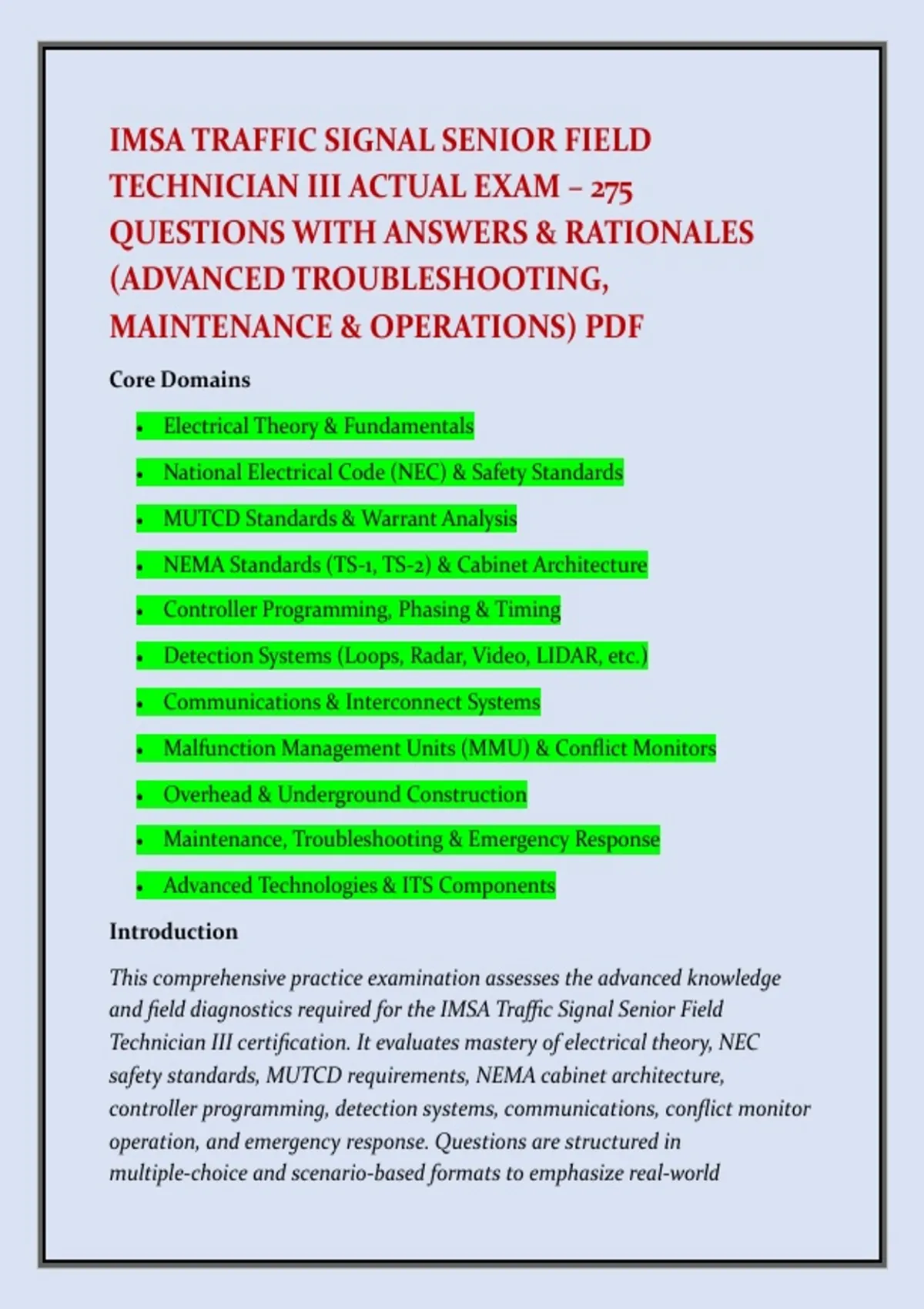

IMSA TRAFFIC SIGNAL SENIOR FIELD
TECHNICIAN III ACTUAL EXAM – 275
QUESTIONS WITH ANSWERS & RATIONALES
(ADVANCED TROUBLESHOOTING,
MAINTENANCE & OPERATIONS) PDF
Core Domains
• Electrical Theory & Fundamentals
• National Electrical Code (NEC) & Safety Standards
• MUTCD Standards & Warrant Analysis
• NEMA Standards (TS-1, TS-2) & Cabinet Architecture
• Controller Programming, Phasing & Timing
• Detection Systems (Loops, Radar, Video, LIDAR, etc.)
• Communications & Interconnect Systems
• Malfunction Management Units (MMU) & Conflict Monitors
• Overhead & Underground Construction
• Maintenance, Troubleshooting & Emergency Response
• Advanced Technologies & ITS Components
Introduction
This comprehensive practice examination assesses the advanced knowledge
and field diagnostics required for the IMSA Traffic Signal Senior Field
Technician III certification. It evaluates mastery of electrical theory, NEC
safety standards, MUTCD requirements, NEMA cabinet architecture,
controller programming, detection systems, communications, conflict monitor
operation, and emergency response. Questions are structured in
multiple-choice and scenario-based formats to emphasize real-world
,troubleshooting, maintenance, and operations. A strong emphasis is placed on
safety, regulatory compliance, and the ability to independently diagnose and
resolve complex traffic signal system faults. Candidates must demonstrate the
ability to apply advanced technical principles to practical field situations.
SECTION 1: ELECTRICAL THEORY & FUNDAMENTALS (Questions 1–30)
1. A traffic signal technician is measuring the voltage at a signal head
and reads 108 VAC. The nominal supply voltage is 120 VAC. What is the
percentage voltage drop?
A. 8.0%
B. 10.0%
C. 12.0%
D. 15.0%
B
RATIONALE: Voltage drop is calculated as (Nominal Voltage − Measured
Voltage) ÷ Nominal Voltage × 100 = (120 − 108) ÷ 120 × 100 = 10.0%. The
National Electrical Code recommends keeping voltage drop below 5% for
branch circuits and 3% for feeders. A 10% drop exceeds acceptable limits and
may cause signal heads to operate improperly or fail prematurely.
2. Using Ohm's Law, calculate the current flowing through a traffic
signal load that has a resistance of 48 ohms and operates at 120 VAC.
A. 1.5 A
B. 2.0 A
C. 2.5 A
D. 3.0 A
C
RATIONALE: Ohm's Law states I = V ÷ R. I = 120 ÷ 48 = 2.5 amperes.
Understanding Ohm's Law is fundamental for traffic signal technicians to
,calculate circuit loads, select appropriate wire sizes, and troubleshoot
electrical problems.
3. A traffic signal controller cabinet draws 15 amperes at 120 VAC. What
is the total power consumption in watts?
A. 1,200 W
B. 1,500 W
C. 1,800 W
D. 2,000 W
C
RATIONALE: Power is calculated as P = V × I. P = 120 × 15 = 1,800 watts.
Knowing the total power consumption is essential for sizing circuit breakers,
conductors, and ensuring the cabinet operates within its electrical capacity.
4. Which of the following best describes a series circuit?
A. A circuit with multiple paths for current flow
B. A circuit where components are connected end-to-end, providing only one
path for current
C. A circuit that contains only resistors
D. A circuit that operates only on DC voltage
B
RATIONALE: In a series circuit, components are connected end-to-end
so that the same current flows through each component. The total resistance
is the sum of individual resistances, and the voltage is divided among the
components.
5. What is the primary purpose of a service disconnect in a traffic signal
cabinet?
A. Increase voltage
B. Provide a means to disconnect electrical power
, C. Detect vehicles
D. Control pedestrian timing
B
RATIONALE: The service disconnect provides a controlled means of
removing power before servicing equipment, ensuring technician safety
during maintenance and troubleshooting.
6. Before working inside an energized signal cabinet, the technician
should first:
A. Change the controller program
B. Establish appropriate electrical-safety procedures
C. Remove the conflict monitor
D. Disconnect detector loops
B
RATIONALE: Electrical hazards must be identified and controlled before
maintenance begins. Following lockout/tagout and verifying de-energization
are mandatory safety steps.
7. What instrument is commonly used to measure voltage?
A. Ammeter
B. Voltmeter
C. Megger only
D. Frequency counter
B
RATIONALE: A voltmeter measures potential difference between two
points. An ammeter measures current, a megger measures insulation
resistance, and a frequency counter measures frequency.
8. What happens to current in a series circuit when resistance increases
while voltage remains constant?
