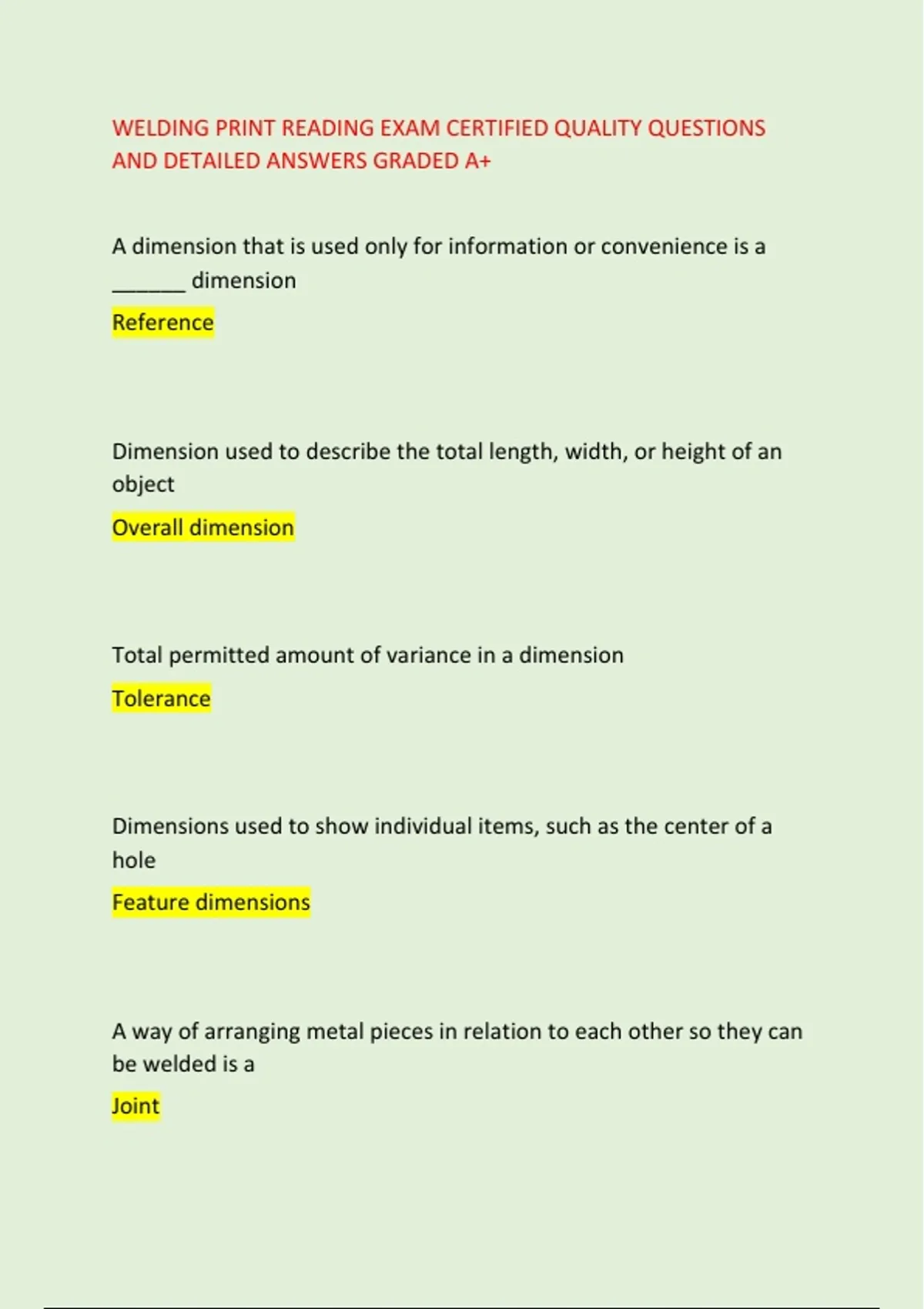

WELDING PRINT READING EXAM CERTIFIED QUALITY QUESTIONS
AND DETAILED ANSWERS GRADED A+
A dimension that is used only for information or convenience is a
______ dimension
Reference
Dimension used to describe the total length, width, or height of an
object
Overall dimension
Total permitted amount of variance in a dimension
Tolerance
Dimensions used to show individual items, such as the center of a
hole
Feature dimensions
A way of arranging metal pieces in relation to each other so they can
be welded is a
Joint
, Which weld is roughly triangular in shape?
Fillet weld
Which of the following welds is made through a hole in one piece of
metal to attach it to another piece of metal?
Slot weld
The opening between two metal pieces being joined by a groove
weld is the
Groove
Another term for the base material, or material being welded, is
Parent metal
The exposed surface of a weld is its weld
Face
The horizontal or vertical distance from the base material to the toe
of a weld is the
Weld leg
