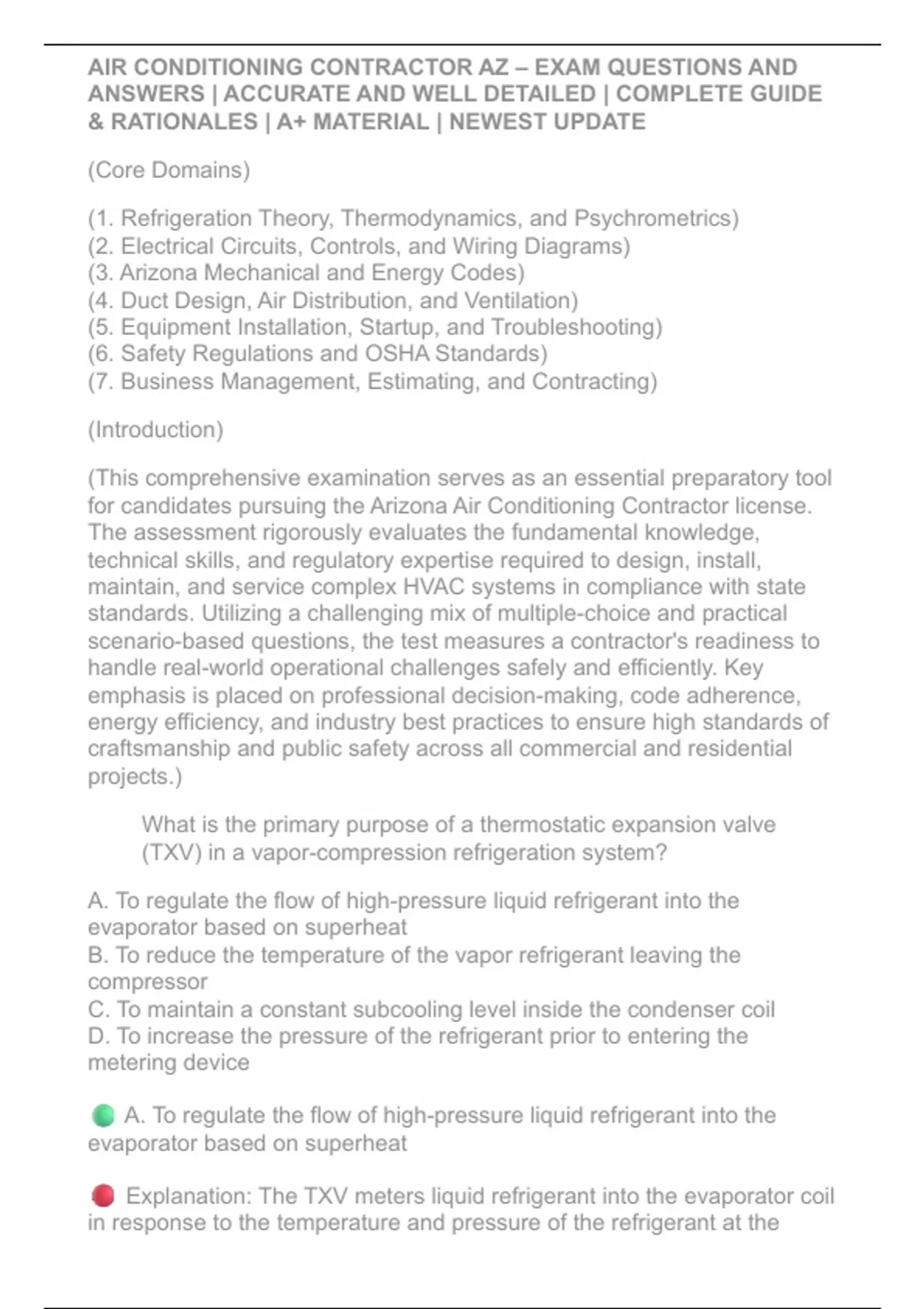

AIR CONDITIONING CONTRACTOR AZ – EXAM QUESTIONS AND
ANSWERS | ACCURATE AND WELL DETAILED | COMPLETE GUIDE
& RATIONALES | A+ MATERIAL | NEWEST UPDATE
(Core Domains)
(1. Refrigeration Theory, Thermodynamics, and Psychrometrics)
(2. Electrical Circuits, Controls, and Wiring Diagrams)
(3. Arizona Mechanical and Energy Codes)
(4. Duct Design, Air Distribution, and Ventilation)
(5. Equipment Installation, Startup, and Troubleshooting)
(6. Safety Regulations and OSHA Standards)
(7. Business Management, Estimating, and Contracting)
(Introduction)
(This comprehensive examination serves as an essential preparatory tool
for candidates pursuing the Arizona Air Conditioning Contractor license.
The assessment rigorously evaluates the fundamental knowledge,
technical skills, and regulatory expertise required to design, install,
maintain, and service complex HVAC systems in compliance with state
standards. Utilizing a challenging mix of multiple-choice and practical
scenario-based questions, the test measures a contractor's readiness to
handle real-world operational challenges safely and efficiently. Key
emphasis is placed on professional decision-making, code adherence,
energy efficiency, and industry best practices to ensure high standards of
craftsmanship and public safety across all commercial and residential
projects.)
What is the primary purpose of a thermostatic expansion valve
(TXV) in a vapor-compression refrigeration system?
A. To regulate the flow of high-pressure liquid refrigerant into the
evaporator based on superheat
B. To reduce the temperature of the vapor refrigerant leaving the
compressor
C. To maintain a constant subcooling level inside the condenser coil
D. To increase the pressure of the refrigerant prior to entering the
metering device
🟢 A. To regulate the flow of high-pressure liquid refrigerant into the
evaporator based on superheat
🔴 Explanation: The TXV meters liquid refrigerant into the evaporator coil
in response to the temperature and pressure of the refrigerant at the
,evaporator outlet, maintaining a constant superheat to ensure complete
vaporization before the compressor.
According to standard psychrometric principles, what happens to the
wet-bulb temperature of air during an ideal sensible heating
process?
A. It decreases because absolute moisture is removed
B. It remains constant as sensible heat is added
C. It increases due to the rise in dry-bulb temperature
D. It equals the dew point temperature throughout the process
C. It increases due to the rise in dry-bulb temperature
🔴 Explanation: During an ideal sensible heating process, moisture
content (humidity ratio) remains constant, but both the dry-bulb
temperature and the wet-bulb temperature increase as heat is added to
the air stream.
When sizing a residential duct system using Manual D guidelines,
what is the recommended maximum design friction rate for a
standard residential trunk and branch system?
A. 0.05 inches of water column per 100 feet
B. 0.08 inches of water column per 100 feet
C. 0.10 inches of water column per 100 feet
D. 0.15 inches of water column per 100 feet
B. To regulate the flow of high-pressure liquid refrigerant into the
evaporator based on superheat
🔴 Explanation: Industry standard design practices established by ACCA
Manual D typically recommend a maximum friction rate of 0.08 inches
W.C. per 100 feet of equivalent length to balance air velocity, static
pressure, and blower performance.
Which of the following electrical components is utilized in a single-
phase compressor circuit to provide high starting torque by
remaining energized temporarily via a potential relay?
A. Run capacitor
B. Potential start relay and start capacitor
C. Contactor coil
D. Thermal overload protector
B. Potential start relay and start capacitor
,🔴 Explanation: A potential start relay works in conjunction with a start
capacitor to give single-phase motors a high starting torque. The relay
senses back-EMF generated by the start winding and opens its contacts
to disconnect the start capacitor once the motor reaches about 75-80% of
operating speed.
Under Arizona contractor licensing laws, what is the maximum civil
penalty or disciplinary action a contractor may face for contracting
outside the scope of their specific classification?
A. A verbal warning for the first offense
B. Suspension or revocation of the license along with civil penalties
determined by the Registrar of Contractors
C. A mandatory community service requirement
D. Automatic reclassification of the license after 30 days
B. Suspension or revocation of the license along with civil penalties
determined by the Registrar of Contractors
🔴 Explanation: The Arizona Registrar of Contractors (ROC) strictly
enforces classification boundaries. Performing work outside an authorized
license classification can result in severe disciplinary actions, including
license suspension, revocation, and financial civil penalties.
What is the minimum required working clearance in front of electrical
equipment rated 600 volts or less, as specified by the National
Electrical Code (NEC)?
A. 24 inches
B. 30 inches
C. 36 inches
D. 48 inches
C. 36 inches
🔴 Explanation: The NEC requires a minimum depth of 36 inches of clear
working space in front of electrical service equipment operating at 600
volts or less to ensure safe operation and maintenance access.
Which psychrometric property represents the total heat content of
air, including both sensible and latent heat?
A. Relative humidity
B. Specific volume
C. Enthalpy
D. Dew point temperature
, C. Enthalpy
🔴 Explanation: Enthalpy, measured in British thermal units per pound of
dry air (Btu/lb), accounts for the total heat energy contained within the air-
vapor mixture, combining both sensible heat (dry-bulb temperature) and
latent heat (moisture content).
When performing a system evacuation prior to charging a
refrigeration system, what is the target vacuum level recommended
by industry standards to ensure the complete removal of moisture
and non-condensables?
A. 100 microns
B. 500 microns or below
C. 1,000 microns
D. 2,500 microns
B. 500 microns or below
🔴 Explanation: Evacuating a refrigeration system to 500 microns or
lower ensures that the boiling point of water is suppressed enough to
vaporize any residual moisture, which is then removed by the vacuum
pump along with non-condensable gases.
An HVAC technician measures a voltage drop of 6 volts across a
closed 24-volt control relay contact while the circuit is energized
under a full load. What does this condition indicate?
A. Normal operation for a low-voltage circuit
B. High resistance across the contacts due to pitting or corrosion
C. An open circuit in the transformer secondary winding
D. Low line voltage supplied to the primary transformer
B. High resistance across the contacts due to pitting or corrosion
🔴 Explanation: A voltage drop across a closed switch or contact
indicates resistance at the contact point. Healthy closed contacts should
exhibit near-zero voltage drop; a significant voltage drop indicates pitting,
burning, or high resistance.
According to Arizona energy efficiency standards, what is the
minimum required SEER2 rating for standard split-system central air
conditioners installed in residential applications within the Southwest
region?
