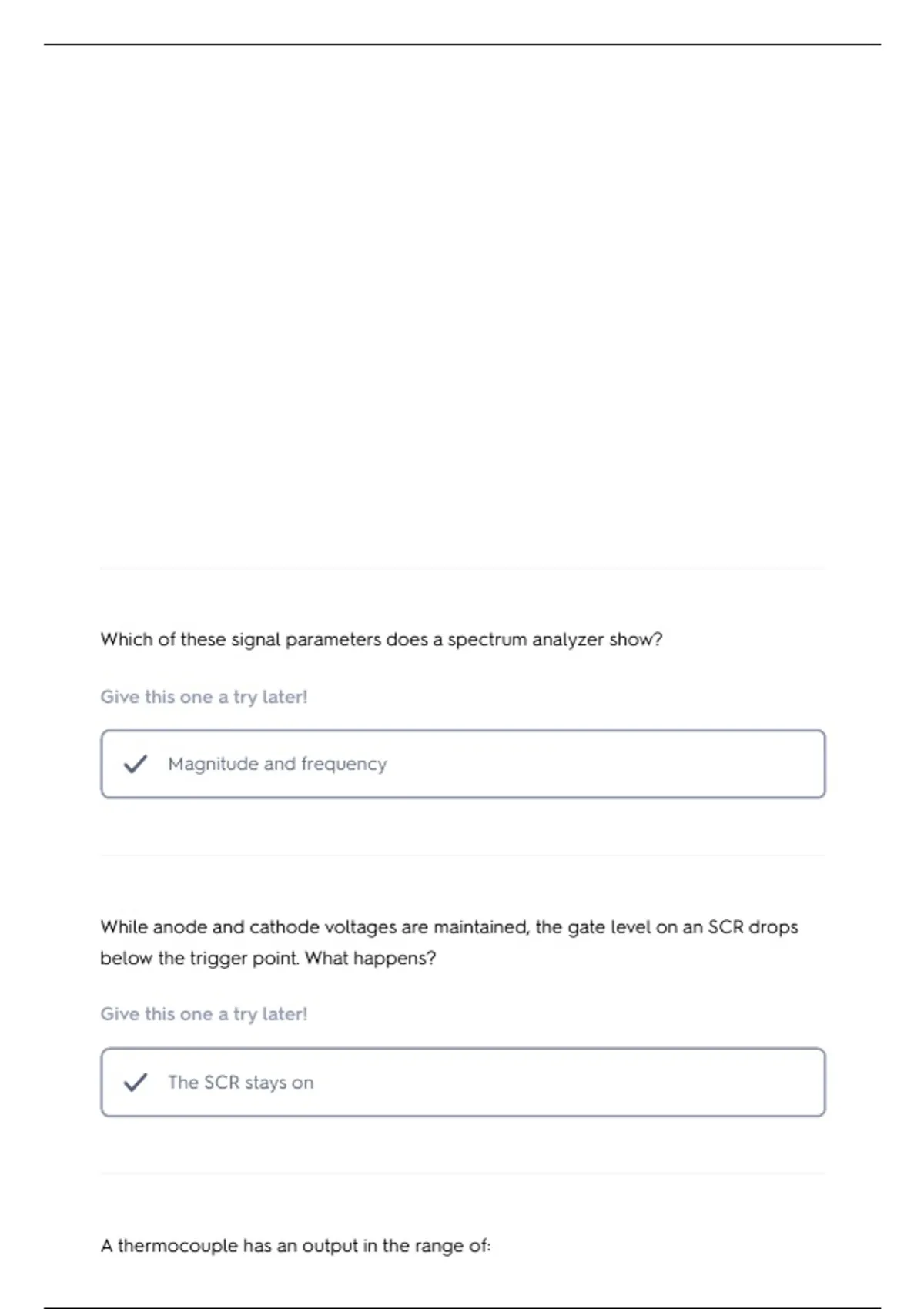

Which of these signal parameters does a spectrum analyzer show?
Give this one a try later!
Magnitude and frequency
While anode and cathode voltages are maintained, the gate level on an SCR drops
below the trigger point. What happens?
Give this one a try later!
The SCR stays on
A thermocouple has an output in the range of:
,Give this one a try later!
Millivolts
It is desired to raise the power to a speaker from 15 W to 30 W. This is a:
Give this one a try later!
3 dB increase
Diodes are marked with a band at the _____ end
Give this one a try later!
Cathode
An 8-bit binary code allows _____ logical combinations
Give this one a try later!
256
A negative temperature coefficient thermistor will:
Give this one a try later!
, Decrease in resistance with temperature
When measuring power to a speaker, a doubling of the power represents a 6 dB
increase
Give this one a try later!
False
Which one of the following IC or semiconductor devices normally requires the most
careful handling to avoid damage by static electricity?
Give this one a try later!
MOS
Doubling the power in a transmitter output signal is a _____ dB gain.
Give this one a try later!
3
What specification should NOT be of concern regarding wire conductors?
Give this one a try later!
