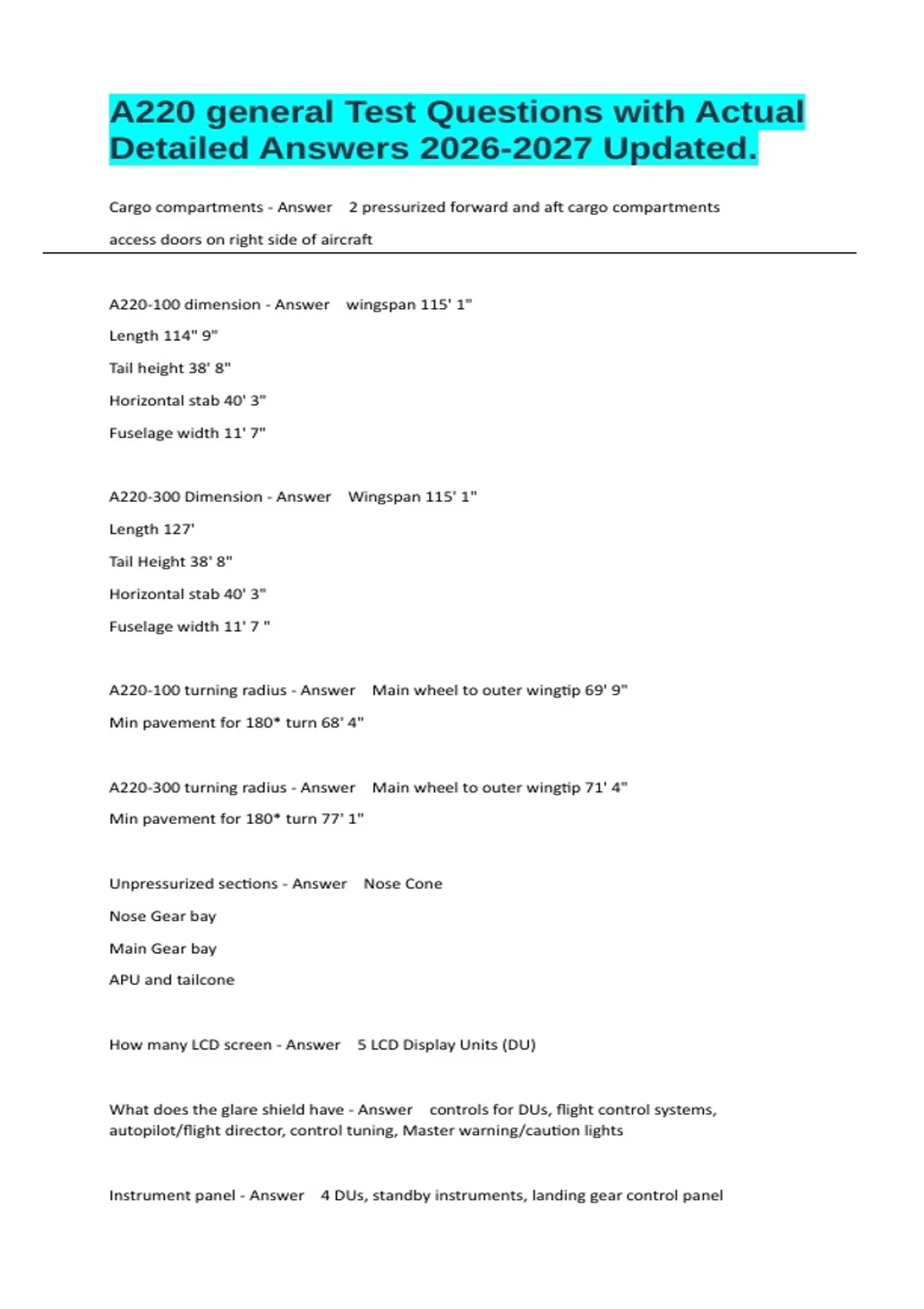

A220 general Test Questions with Actual
Detailed Answers 2026-2027 Updated.
Cargo compartments - Answer 2 pressurized forward and aft cargo compartments
access doors on right side of aircraft
A220-100 dimension - Answer wingspan 115' 1"
Length 114" 9"
Tail height 38' 8"
Horizontal stab 40' 3"
Fuselage width 11' 7"
A220-300 Dimension - Answer Wingspan 115' 1"
Length 127'
Tail Height 38' 8"
Horizontal stab 40' 3"
Fuselage width 11' 7 "
A220-100 turning radius - Answer Main wheel to outer wingtip 69' 9"
Min pavement for 180* turn 68' 4"
A220-300 turning radius - Answer Main wheel to outer wingtip 71' 4"
Min pavement for 180* turn 77' 1"
Unpressurized sections - Answer Nose Cone
Nose Gear bay
Main Gear bay
APU and tailcone
How many LCD screen - Answer 5 LCD Display Units (DU)
What does the glare shield have - Answer controls for DUs, flight control systems,
autopilot/flight director, control tuning, Master warning/caution lights
Instrument panel - Answer 4 DUs, standby instruments, landing gear control panel
, Center pedestal - Answer 1 DU
multifunction keyboards/cursors
Thrust, flaps, & spoiler levers
audio panels
Controls for Trim, engine, & cockpit access
A220 doors - Answer Frwd & aft pax doors (L)
left & right overwing emergency exits
Frwd & aft service doors (R)
frwd & aft cargo doors
emergency hatch
Frwd, mid, & aft equip bay doors
What door doesn't display on DOOR synoptic page or EICAS? - Answer Crew emergency hatch
What doors are type C? - Answer Passenger and service doors
What does the vent flap on the doors do? - Answer It is on the outside of door and releases
residual cabin pressure when the handle is moved to open position
When will the escape slide deploy? - Answer When the slide mode select handle is in the
armed position and the door is opened from the inside.
It will not deploy is armed and opened from the outside.
EICAS door indication Engines running - Answer At least one eng. running and door open or
fail you'll see an amber symbol and caution message on EICAS
CMS - Answer Cabin Management System
Located above forward FA jumpseat.
Overwing emergency exit doors - Answer type 3, can open from inside or outside.
Slides are always armed and deploy when exit is opened.
Prevention mechanism from opening in flight
