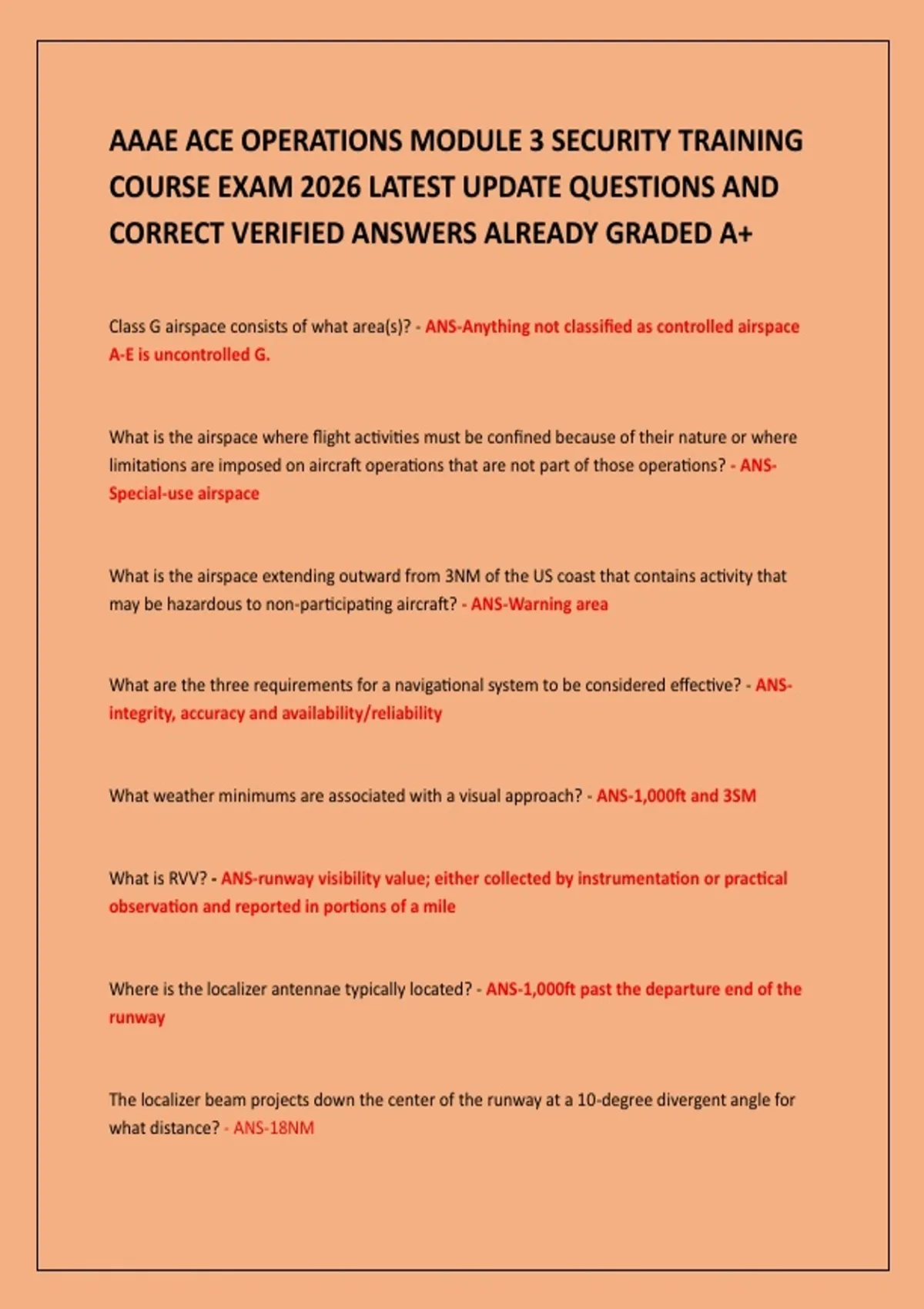

AAAE ACE OPERATIONS MODULE 3 SECURITY TRAINING
COURSE EXAM 2026 LATEST UPDATE QUESTIONS AND
CORRECT VERIFIED ANSWERS ALREADY GRADED A+
Class G airspace consists of what area(s)? - ANS-Anything not classified as controlled airspace
A-E is uncontrolled G.
What is the airspace where flight activities must be confined because of their nature or where
limitations are imposed on aircraft operations that are not part of those operations? - ANS-
Special-use airspace
What is the airspace extending outward from 3NM of the US coast that contains activity that
may be hazardous to non-participating aircraft? - ANS-Warning area
What are the three requirements for a navigational system to be considered effective? - ANS-
integrity, accuracy and availability/reliability
What weather minimums are associated with a visual approach? - ANS-1,000ft and 3SM
What is RVV? - ANS-runway visibility value; either collected by instrumentation or practical
observation and reported in portions of a mile
Where is the localizer antennae typically located? - ANS-1,000ft past the departure end of the
runway
The localizer beam projects down the center of the runway at a 10-degree divergent angle for
what distance? - ANS-18NM
, What are the dimensions of the localizer critical area? - ANS-250ft radius around the antennae
connecting to a 400ft wide rectangle centered on the runway centerline extending 2,000ft
down the runway
A 3 degree glideslope produces what slope ratio? - ANS-30:1
Where is the glideslope antennae typically located? - ANS-at about 1,000ft down the runway
alongside the aiming point and at least 250ft on either side of the runway
What are the dimensions of the glideslope critical area? - ANS-500ft wide by 1,200ft long in
front of the antennae
Where is the inner marker for an ILS located? - ANS-1,000ft short of the threshold
Where is the decision height for an ILS typically located? - ANS-At the middle marker, which is
2,000-6,000ft short of the threshold; this places an aircraft on the glidepath at 200ft
What effective range is associated a terminal VOR? Low altitude VOR? - ANS-25 NM; 40NM
What are the dimensions of the VOR protection zone? - ANS-a radius of 750 to 1,000ft around
the VOR
What equipment uses a signal transmitted from the aircraft to a ground station to determine
distance from the station? - ANS-distance measuring equipment (DME)
What ground-based system augments satellite coverage to allow category I GPS instrument
approaches? - ANS-Wide Area Augmentation System (WAAS)
COURSE EXAM 2026 LATEST UPDATE QUESTIONS AND
CORRECT VERIFIED ANSWERS ALREADY GRADED A+
Class G airspace consists of what area(s)? - ANS-Anything not classified as controlled airspace
A-E is uncontrolled G.
What is the airspace where flight activities must be confined because of their nature or where
limitations are imposed on aircraft operations that are not part of those operations? - ANS-
Special-use airspace
What is the airspace extending outward from 3NM of the US coast that contains activity that
may be hazardous to non-participating aircraft? - ANS-Warning area
What are the three requirements for a navigational system to be considered effective? - ANS-
integrity, accuracy and availability/reliability
What weather minimums are associated with a visual approach? - ANS-1,000ft and 3SM
What is RVV? - ANS-runway visibility value; either collected by instrumentation or practical
observation and reported in portions of a mile
Where is the localizer antennae typically located? - ANS-1,000ft past the departure end of the
runway
The localizer beam projects down the center of the runway at a 10-degree divergent angle for
what distance? - ANS-18NM
, What are the dimensions of the localizer critical area? - ANS-250ft radius around the antennae
connecting to a 400ft wide rectangle centered on the runway centerline extending 2,000ft
down the runway
A 3 degree glideslope produces what slope ratio? - ANS-30:1
Where is the glideslope antennae typically located? - ANS-at about 1,000ft down the runway
alongside the aiming point and at least 250ft on either side of the runway
What are the dimensions of the glideslope critical area? - ANS-500ft wide by 1,200ft long in
front of the antennae
Where is the inner marker for an ILS located? - ANS-1,000ft short of the threshold
Where is the decision height for an ILS typically located? - ANS-At the middle marker, which is
2,000-6,000ft short of the threshold; this places an aircraft on the glidepath at 200ft
What effective range is associated a terminal VOR? Low altitude VOR? - ANS-25 NM; 40NM
What are the dimensions of the VOR protection zone? - ANS-a radius of 750 to 1,000ft around
the VOR
What equipment uses a signal transmitted from the aircraft to a ground station to determine
distance from the station? - ANS-distance measuring equipment (DME)
What ground-based system augments satellite coverage to allow category I GPS instrument
approaches? - ANS-Wide Area Augmentation System (WAAS)
