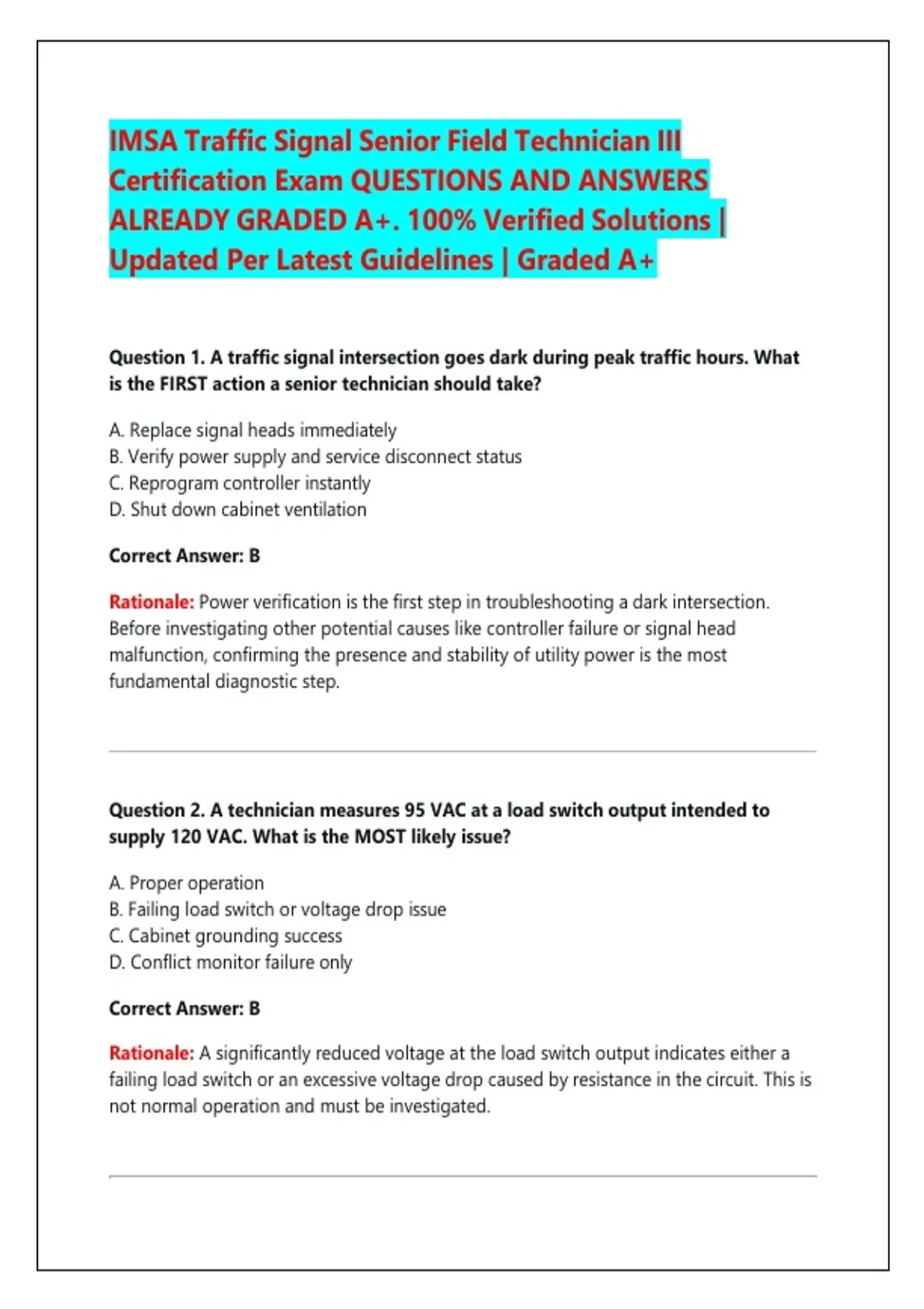

IMSA Traffic Signal Senior Field Technician III
Certification Exam QUESTIONS AND ANSWERS
ALREADY GRADED A+. 100% Verified Solutions |
Updated Per Latest Guidelines | Graded A+
Question 1. A traffic signal intersection goes dark during peak traffic hours. What
is the FIRST action a senior technician should take?
A. Replace signal heads immediately
B. Verify power supply and service disconnect status
C. Reprogram controller instantly
D. Shut down cabinet ventilation
Correct Answer: B
Rationale: Power verification is the first step in troubleshooting a dark intersection.
Before investigating other potential causes like controller failure or signal head
malfunction, confirming the presence and stability of utility power is the most
fundamental diagnostic step.
Question 2. A technician measures 95 VAC at a load switch output intended to
supply 120 VAC. What is the MOST likely issue?
A. Proper operation
B. Failing load switch or voltage drop issue
C. Cabinet grounding success
D. Conflict monitor failure only
Correct Answer: B
Rationale: A significantly reduced voltage at the load switch output indicates either a
failing load switch or an excessive voltage drop caused by resistance in the circuit. This is
not normal operation and must be investigated.
,Question 3. During maintenance, a technician bypasses lockout/tagout
procedures. What is the PRIMARY risk?
A. Timing drift
B. Electrical shock or accidental energization
C. Cabinet condensation
D. Detector sensitivity loss
Correct Answer: B
Rationale: Lockout/tagout (LOTO) procedures are critical safety protocols designed to
protect workers from hazardous energy. Bypassing them creates a severe risk of
electrical shock or accidental equipment energization.
Question 4. A conflict monitor enters flash mode repeatedly after rainstorms.
What is the MOST likely cause?
A. Timing optimization
B. Moisture intrusion causing short circuits
C. Excessive cabinet cooling
D. Proper detector operation
Correct Answer: B
Rationale: Moisture intrusion from rainstorms commonly causes intermittent electrical
faults, such as short circuits, which can trigger a conflict monitor to place the
intersection into flash mode as a safety precaution.
Question 5. A signal phase remains green continuously despite controller
commands. What should be checked FIRST?
A. Street signs
B. Load switch stuck in energized state
C. Pavement markings
D. Cabinet paint condition
,Correct Answer: B
Rationale: A continuous green indication despite controller commands strongly
suggests a load switch has failed in the "stuck on" state. This prevents the controller
from terminating the phase.
Question 6. A technician detects fluctuating cabinet voltage. What is the BEST first
diagnostic step?
A. Replace controller immediately
B. Verify incoming utility power stability
C. Remove detector cards
D. Disable flash mode
Correct Answer: B
Rationale: Fluctuating cabinet voltage can originate from unstable utility power.
Verifying the stability of the incoming utility supply is the correct first step before
investigating internal cabinet components.
Question 7. A vehicle detector fails to register cars in one lane. What is the most
likely cause?
A. Conflict monitor calibration
B. Open loop detector circuit
C. Signal head alignment
D. Battery backup activation
Correct Answer: B
Rationale: An open circuit in the inductive loop detector prevents the amplifier from
detecting vehicles. This is a common failure mode for in-ground loops.
, Question 8. A technician notices burn marks near cabinet terminals. What should
be done FIRST?
A. Ignore if system operates
B. De-energize cabinet and inspect for overheating damage
C. Replace signal lenses only
D. Increase detector sensitivity
Correct Answer: B
Rationale: Burn marks near terminals indicate a potential fire or electrical hazard. The
cabinet must be immediately de-energized and the source of overheating investigated
to prevent a fire.
Question 9. During nighttime operation, one signal face appears dimmer than
others. What is the most likely cause?
A. Cabinet cooling issue
B. Failing LED module or voltage issue
C. Detector timing problem
D. Conflict monitor normal operation
Correct Answer: B
Rationale: Diminished brightness in a signal face is often caused by a failing LED
module, degraded LED elements, or a low voltage supply to that specific signal head.
Question 10. A technician opens a cabinet and smells insulation burning. What is
the FIRST action?
A. Continue diagnostics
B. Disconnect power safely and investigate source
C. Reset controller
D. Increase cabinet ventilation only
Correct Answer: B
