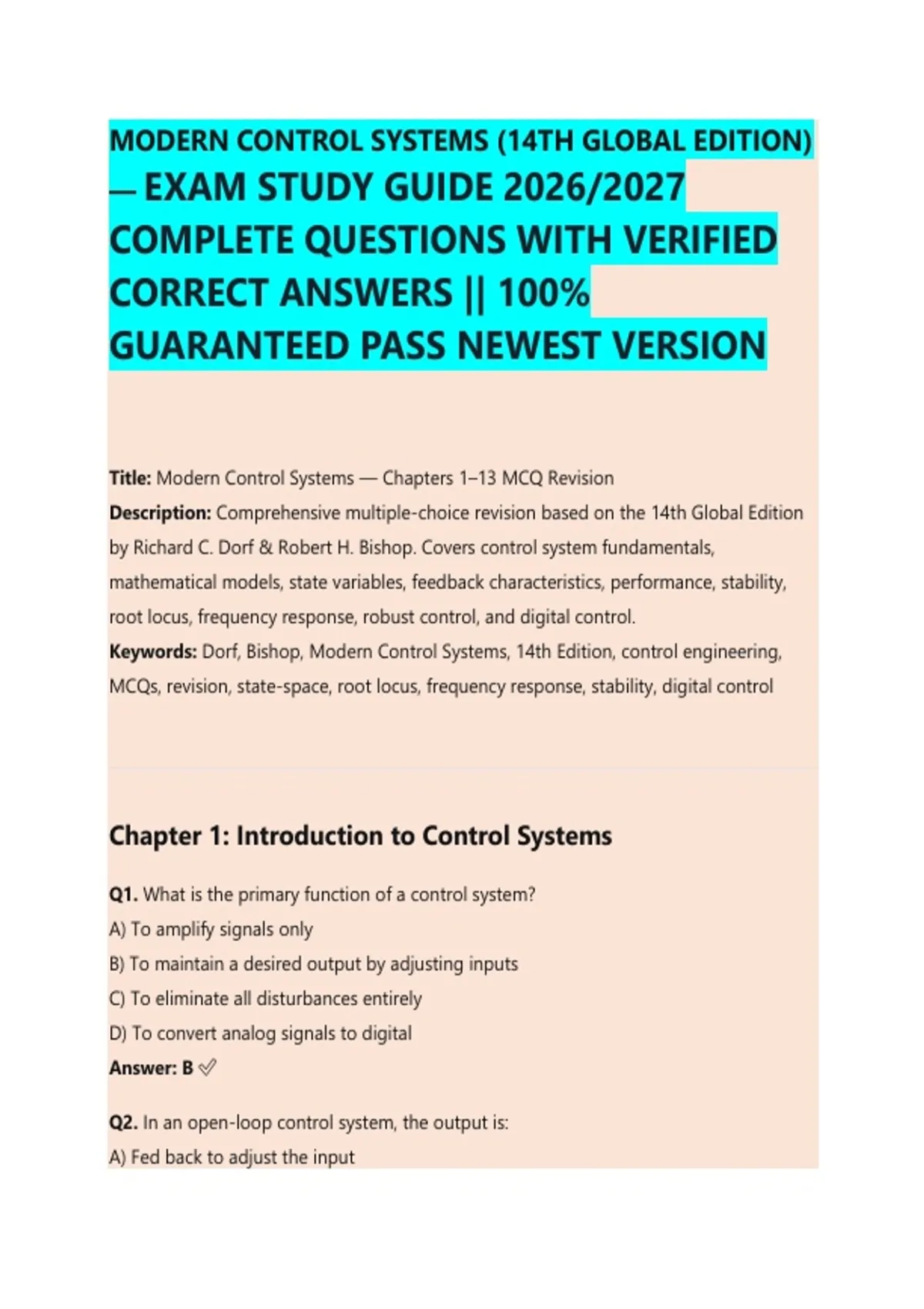

MODERN CONTROL SYSTEMS (14TH GLOBAL EDITION)
— EXAMSTUDY GUIDE 2026/2027
COMPLETE QUESTIONS WITH VERIFIED
CORRECT ANSWERS || 100%
GUARANTEED PASS NEWEST VERSION
Title: Modern Control Systems — Chapters 1–13 MCQ Revision
Description: Comprehensive multiple-choice revision based on the 14th Global Edition
by Richard C. Dorf & Robert H. Bishop. Covers control system fundamentals,
mathematical models, state variables, feedback characteristics, performance, stability,
root locus, frequency response, robust control, and digital control.
Keywords: Dorf, Bishop, Modern Control Systems, 14th Edition, control engineering,
MCQs, revision, state-space, root locus, frequency response, stability, digital control
Chapter 1: Introduction to Control Systems
Q1. What is the primary function of a control system?
A) To amplify signals only
B) To maintain a desired output by adjusting inputs
C) To eliminate all disturbances entirely
D) To convert analog signals to digital
Answer: B ✅
Q2. In an open-loop control system, the output is:
A) Fed back to adjust the input
,B) Independent of the input
C) Not used to modify the control action
D) Always equal to the reference
Answer: C ✅
Q3. Which of the following is an example of a feedback control system?
A) A toaster with a timer
B) A washing machine with a fixed cycle
C) A thermostat-controlled heating system
D) A manually operated light switch
Answer: C ✅
Q4. The block diagram of a control system typically includes all EXCEPT:
A) Reference input
B) Controller
C) Plant
D) Power supply only
Answer: D ✅
Q5. What is the role of a sensor in a feedback control system?
A) To amplify the error signal
B) To measure the output variable
C) To generate the reference input
D) To act as the actuator
Answer: B ✅
Q6. Mechatronic systems integrate:
A) Only mechanical components
B) Mechanical, electrical, and computer systems
C) Hydraulic and pneumatic systems only
D) Thermal and nuclear systems
Answer: B ✅
,Q7. In a disk drive read system, the control objective is to:
A) Maximize disk rotation speed only
B) Position the read head accurately
C) Reduce power consumption to zero
D) Eliminate all vibrations
Answer: B ✅
Q8. A disturbance in a control system is:
A) The desired output
B) An unwanted signal affecting the output
C) The controller gain
D) The feedback path
Answer: B ✅
Chapter 2: Mathematical Models of Systems
Q9. The Laplace transform converts a differential equation into:
A) Another differential equation
B) An algebraic equation in s
C) A time-domain solution directly
D) A frequency response plot
Answer: B ✅
Q10. The transfer function of a linear system is defined with:
A) Nonzero initial conditions
B) Zero initial conditions
C) Arbitrary initial conditions
D) Only sinusoidal inputs
Answer: B ✅
, Q11. Poles of a transfer function are:
A) Roots of the numerator polynomial
B) Roots of the denominator polynomial
C) Always real and negative
D) Independent of system dynamics
Answer: B ✅
Q12. Zeros of a transfer function are:
A) Roots of the denominator polynomial
B) Roots of the numerator polynomial
C) Always at the origin
D) Unrelated to frequency response
Answer: B ✅
Q13. The characteristic equation determines:
A) The input magnitude
B) The nature of the time response
C) The sensor type
D) The actuator gain only
Answer: B ✅
Q14. For an inverting operational amplifier, the transfer function is:
A) VoVin=+R2R1VinVo=+R1R2
B) VoVin=−R2R1VinVo=−R1R2
C) VoVin=R1R2VinVo=R1R2
D) VoVin=1R1R2VinVo=R1R21
Answer: B ✅
Q15. The final value theorem is valid only if:
A) All poles are in the right half-plane
B) All poles have negative real parts (except possibly one at origin)
C) The system is unstable
