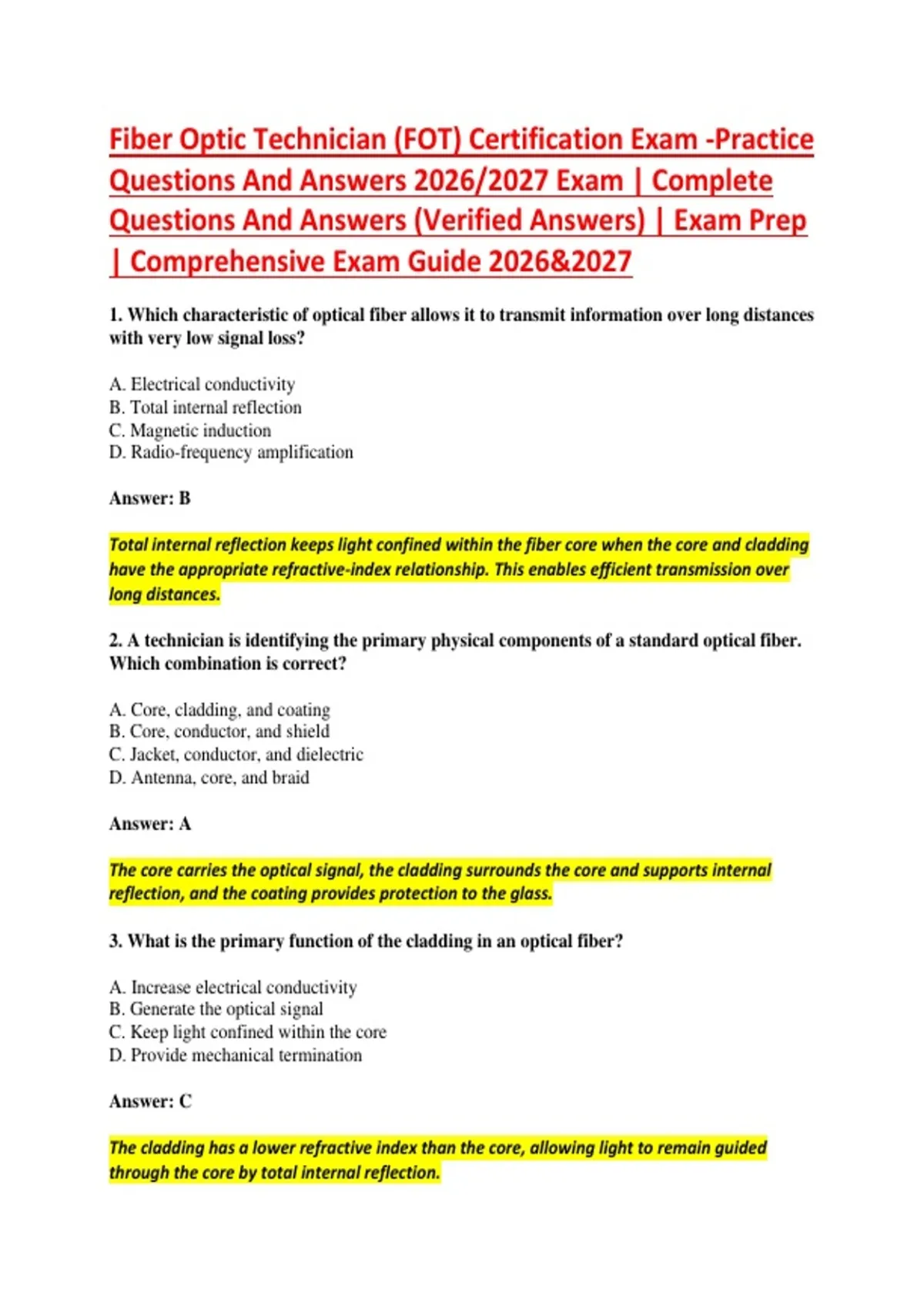

Fiber Optic Technician (FOT) Certification Exam -Practice
Questions And Answers 2026/2027 Exam | Complete
Questions And Answers (Verified Answers) | Exam Prep
| Comprehensive Exam Guide 2026&2027
1. Which characteristic of optical fiber allows it to transmit information over long distances
with very low signal loss?
A. Electrical conductivity
B. Total internal reflection
C. Magnetic induction
D. Radio-frequency amplification
Answer: B
Total internal reflection keeps light confined within the fiber core when the core and cladding
have the appropriate refractive-index relationship. This enables efficient transmission over
long distances.
2. A technician is identifying the primary physical components of a standard optical fiber.
Which combination is correct?
A. Core, cladding, and coating
B. Core, conductor, and shield
C. Jacket, conductor, and dielectric
D. Antenna, core, and braid
Answer: A
The core carries the optical signal, the cladding surrounds the core and supports internal
reflection, and the coating provides protection to the glass.
3. What is the primary function of the cladding in an optical fiber?
A. Increase electrical conductivity
B. Generate the optical signal
C. Keep light confined within the core
D. Provide mechanical termination
Answer: C
The cladding has a lower refractive index than the core, allowing light to remain guided
through the core by total internal reflection.
,4. A technician is selecting fiber for a high-bandwidth backbone where long transmission
distances are expected. Which fiber type is generally most appropriate?
A. Plastic optical fiber
B. Multimode step-index fiber
C. Multimode graded-index fiber
D. Single-mode fiber
Answer: D
Single-mode fiber has a very small core and supports essentially one propagation mode,
making it suitable for high-bandwidth, long-distance communication.
5. Which fiber type commonly has a core diameter around 50 or 62.5 micrometers?
A. Single-mode fiber
B. Multimode fiber
C. Plastic optical fiber only
D. Hollow-core fiber only
Answer: B
Traditional multimode fibers commonly use 50 µm or 62.5 µm cores, while standard single-
mode fiber has a much smaller core of approximately 8–10 µm.
6. What does attenuation represent in a fiber-optic system?
A. The amount of optical power lost as the signal travels
B. The maximum connector insertion angle
C. The number of wavelengths transmitted
D. The mechanical strength of the cable
Answer: A
Attenuation is the reduction of optical power along a fiber link. It is commonly expressed in
decibels per kilometer or as total link loss in decibels.
7. A fiber link has excessive attenuation despite apparently correct equipment
configuration. Which physical condition should the technician investigate first?
A. Network naming convention
B. Fiber color sequence only
C. Bends, contamination, and damaged connectors
D. Ethernet frame size
Answer: C
,Excessive bending, dirty end faces, damaged connectors, and poor splices are common causes
of unexpected optical loss.
8. What is chromatic dispersion?
A. Physical separation of cable strands
B. Loss caused by connector contamination
C. Reflection from the fiber jacket
D. Pulse spreading caused by different wavelengths traveling at different velocities
Answer: D
Chromatic dispersion causes different spectral components of a transmitted signal to arrive at
different times, producing pulse broadening and potentially limiting bandwidth.
9. A multimode link is experiencing significant pulse spreading at a higher data rate.
Which phenomenon is particularly relevant?
A. Mode coupling
B. Modal dispersion
C. Electrical crosstalk
D. Jacket compression
Answer: B
Modal dispersion occurs because different propagation modes in multimode fiber can travel
different effective path lengths, causing signal pulses to spread.
10. Which measurement unit is commonly used to express optical power?
A. dBm
B. dB/km only
C. Ohms
D. Hertz
Answer: A
dBm expresses absolute optical power relative to 1 milliwatt. It is commonly used when
measuring transmitter output and receiver input power.
11. A technician measures −3 dBm at the transmitter and −8 dBm at the receiver. Ignoring
other considerations, what is the measured link loss?
A. 11 dB
B. 8 dB
, C. 5 dB
D. 3 dB
Answer: C
The difference between −3 dBm and −8 dBm is 5 dB, representing the measured optical power
loss across the link.
12. Which device is specifically designed to measure optical power at a fiber-optic receiver
or test point?
A. OTDR
B. Optical power meter
C. Fusion splicer
D. VFL
Answer: B
An optical power meter measures the optical power arriving at the measurement point and is
commonly used with a calibrated light source for insertion-loss testing.
13. What is the primary purpose of an optical light source during insertion-loss testing?
A. Clean the connector
B. Locate underground ducts
C. Measure cable tensile strength
D. Provide a known optical signal for measurement
Answer: D
A stable calibrated light source transmits a known optical signal through the link so the
technician can determine insertion loss using an optical power meter.
14. A technician needs to identify whether a fiber is continuous over a short indoor run.
Which tool is most appropriate for a simple visual continuity check?
A. Visual fault locator
B. Fusion splicer
C. OTDR only
D. Optical spectrum analyzer
Answer: A
A visual fault locator injects visible red light into the fiber, allowing a technician to identify
continuity and obvious breaks or severe bends over suitable distances.
