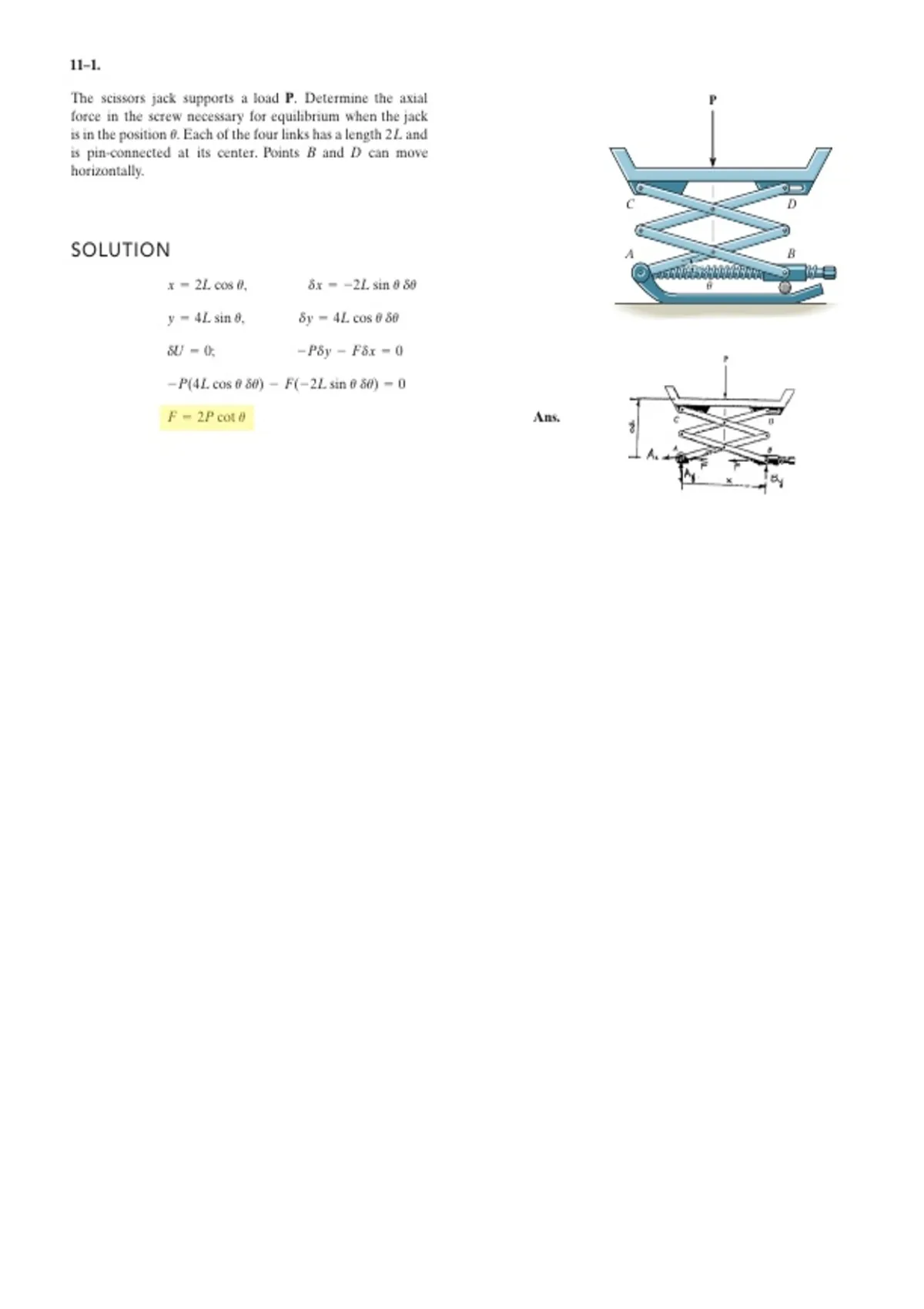

11–1.
The scissors jack supports a load P. Determine the axial P
force in the screw necessary for equilibrium when the jack
is in the position u. Each of the four links has a length 2 L and
is pin-connected at its center. Points B and D can move
horizontally.
C D
SOLUTION A B
x = 2L cos u, dx = - 2L sin u du u
y = 4L sin u, dy = 4L cos u du
dU = 0; - Pdy - Fdx = 0
-P(4L cos u du) - F(- 2L sin u du) = 0
F = 2P cot u Ans.
