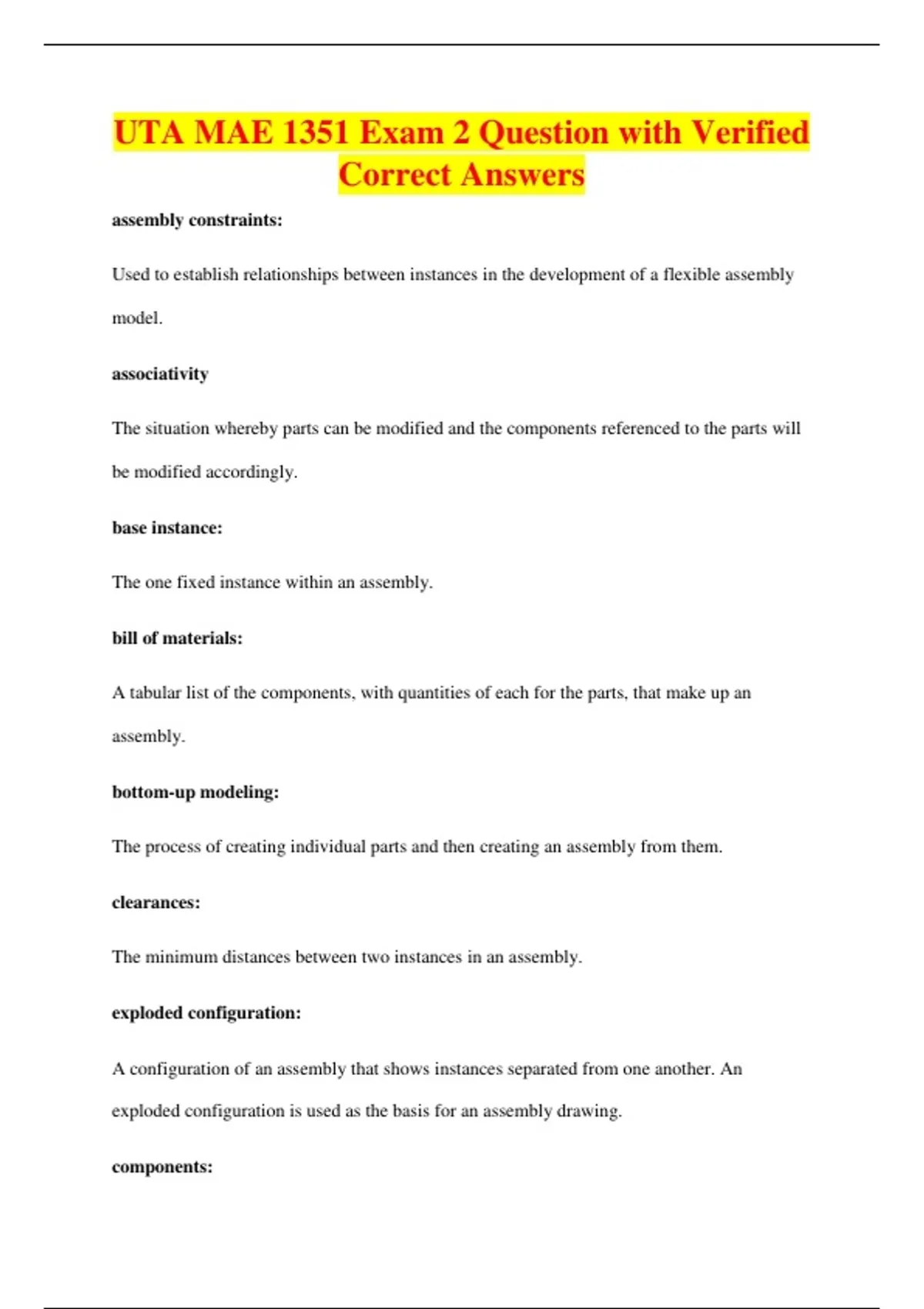

UTA MAE 1351 Exam 2 Question with Verified
Correct Answers
assembly constraints:
Used to establish relationships between instances in the development of a flexible assembly
model.
associativity
The situation whereby parts can be modified and the components referenced to the parts will
be modified accordingly.
base instance:
The one fixed instance within an assembly.
bill of materials:
A tabular list of the components, with quantities of each for the parts, that make up an
assembly.
bottom-up modeling:
The process of creating individual parts and then creating an assembly from them.
clearances:
The minimum distances between two instances in an assembly.
exploded configuration:
A configuration of an assembly that shows instances separated from one another. An
exploded configuration is used as the basis for an assembly drawing.
components:
, References of object geometry used in assembly models.
hierarchy:
The parent-child relationships between instances in an assembly.
instances:
Copies of components that are included within an assembly model. interference: The amount
of overlap between two instances in an assembly.
subassembly:
A logical grouping of assembly instances that is treated as a single entity within the overall
assembly model.
top-down modeling:
The process of establishing the assembly and hierarchy before individual components are
created.
fishbone diagram:
A diagram that shows the various subsystems in a device and the parts that make up each
subsystem
analysis:
The study of the behavior of a physical system under certain imposed conditions
laser scanning
(three-dimensional): A process where cameras and lasers are used to digitize an object based
on the principle of triangulation.
black box diagram:
Correct Answers
assembly constraints:
Used to establish relationships between instances in the development of a flexible assembly
model.
associativity
The situation whereby parts can be modified and the components referenced to the parts will
be modified accordingly.
base instance:
The one fixed instance within an assembly.
bill of materials:
A tabular list of the components, with quantities of each for the parts, that make up an
assembly.
bottom-up modeling:
The process of creating individual parts and then creating an assembly from them.
clearances:
The minimum distances between two instances in an assembly.
exploded configuration:
A configuration of an assembly that shows instances separated from one another. An
exploded configuration is used as the basis for an assembly drawing.
components:
, References of object geometry used in assembly models.
hierarchy:
The parent-child relationships between instances in an assembly.
instances:
Copies of components that are included within an assembly model. interference: The amount
of overlap between two instances in an assembly.
subassembly:
A logical grouping of assembly instances that is treated as a single entity within the overall
assembly model.
top-down modeling:
The process of establishing the assembly and hierarchy before individual components are
created.
fishbone diagram:
A diagram that shows the various subsystems in a device and the parts that make up each
subsystem
analysis:
The study of the behavior of a physical system under certain imposed conditions
laser scanning
(three-dimensional): A process where cameras and lasers are used to digitize an object based
on the principle of triangulation.
black box diagram:
