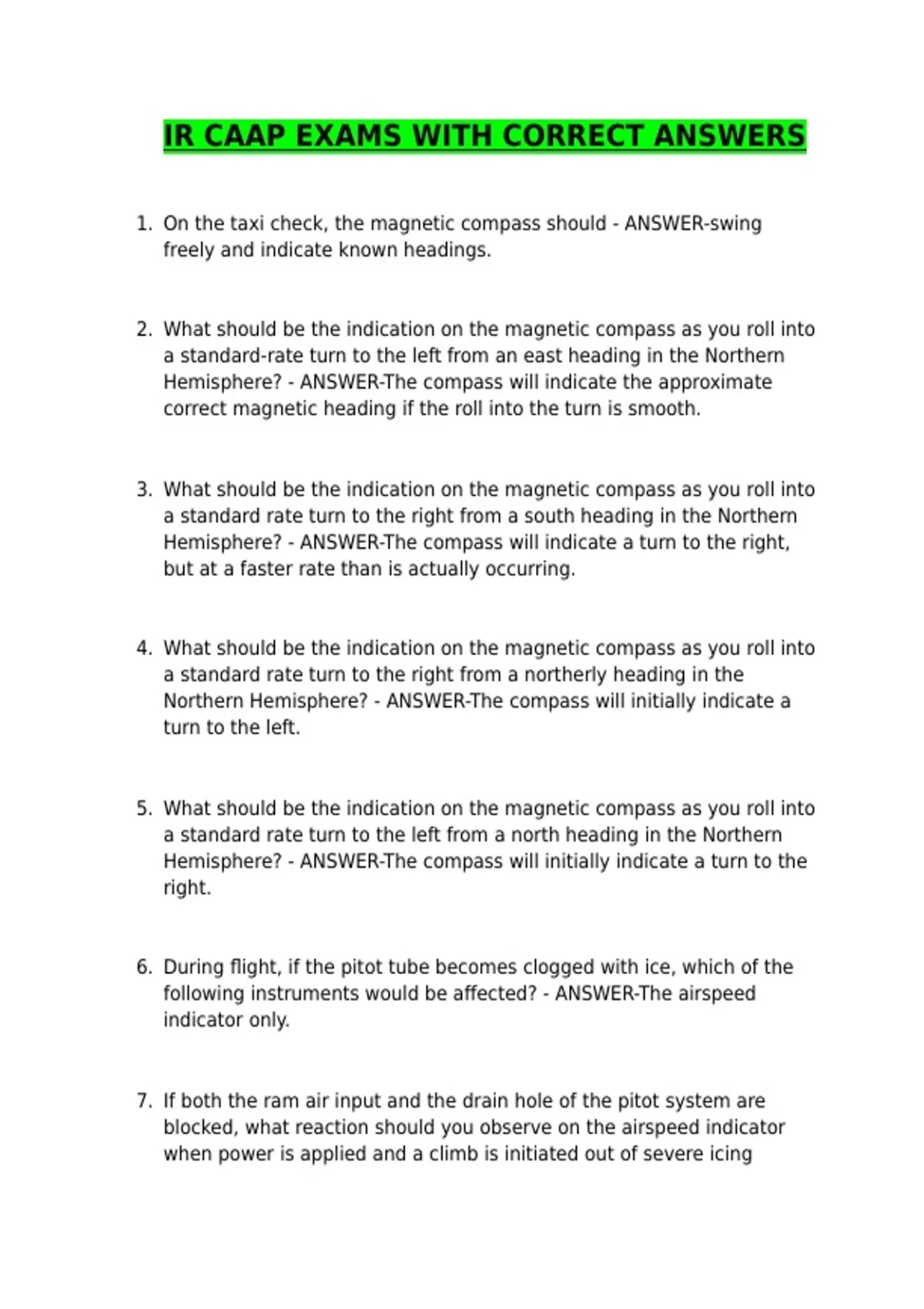

IR CAAP EXAMS WITH CORRECT ANSWERS
1. On the taxi check, the magnetic compass should - ANSWER-swing
freely and indicate known headings.
2. What should be the indication on the magnetic compass as you roll into
a standard-rate turn to the left from an east heading in the Northern
Hemisphere? - ANSWER-The compass will indicate the approximate
correct magnetic heading if the roll into the turn is smooth.
3. What should be the indication on the magnetic compass as you roll into
a standard rate turn to the right from a south heading in the Northern
Hemisphere? - ANSWER-The compass will indicate a turn to the right,
but at a faster rate than is actually occurring.
4. What should be the indication on the magnetic compass as you roll into
a standard rate turn to the right from a northerly heading in the
Northern Hemisphere? - ANSWER-The compass will initially indicate a
turn to the left.
5. What should be the indication on the magnetic compass as you roll into
a standard rate turn to the left from a north heading in the Northern
Hemisphere? - ANSWER-The compass will initially indicate a turn to the
right.
6. During flight, if the pitot tube becomes clogged with ice, which of the
following instruments would be affected? - ANSWER-The airspeed
indicator only.
7. If both the ram air input and the drain hole of the pitot system are
blocked, what reaction should you observe on the airspeed indicator
when power is applied and a climb is initiated out of severe icing
, conditions? - ANSWER-No change until an actual climb rate is
established, then indicated airspeed will increase.
8. What indication should a pilot observe if an airspeed indicator ram air
input and drain hole are blocked? - ANSWER-The airspeed indicator will
react as an altimeter.
9. If the outside air temperature increases during a flight at constant
power and at a constant indicated altitude, the true airspeed will -
ANSWER-increase and true altitude will increase.
10. What would be the indication on the VSI during entry into a 500
FPM actual descent from level flight if the static ports were iced over? -
ANSWER-The VSI pointer would remain at zero regardless of the actual
rate of descent.
11. What information does a Mach meter present? - ANSWER-The
ratio of aircraft true airspeed to the speed of sound.
12. How should you preflight check the altimeter prior to an IFR
flight? - ANSWER-Set the altimeter to the current altimeter setting. The
indication should be within 75 feet of the actual elevation for
acceptable accuracy.
13. Pressure altitude is the altitude read on your altimeter when the
instrument is adjusted to indicate height above - ANSWER-the standard
datum plane.
14. If you are departing from an airport where you cannot obtain an
altimeter setting, you should set your altimeter - ANSWER-to the
airport elevation.
,15. Which altitude is indicated when the altimeter is set to 29.92"
Hg? - ANSWER-Pressure.
16. The pressure altitude at a given location is indicated on the
altimeter after the altimeter is set to - ANSWER-29.92" Hg.
17. How can you determine the pressure altitude on an airport
without a tower or FSS? - ANSWER-Set the altimeter to 29.92" Hg and
read the altitude indicated.
18. How can you obtain the pressure altitude on flights below 18,000
feet? - ANSWER-Set your altimeter to 29.92" Hg.
19. At an altitude of 6,500 feet MSL, the current altimeter setting is
30.42" Hg. The pressure altitude would be approximately - ANSWER-
6,000 feet.
20. How does a pilot normally obtain the current altimeter setting
during an IFR flight in Class E airspace below 18,000 feet? - ANSWER-
ATC periodically advises the pilot of the proper altimeter setting.
21. Which of the following defines the type of altitude used when
maintaining FL 210? - ANSWER-Pressure.
22. What is the procedure for setting the altimeter when assigned an
IFR altitude of 18,000 feet or higher on a direct flight off airways? -
ANSWER-Set the altimeter to the current reported setting for climb-out
and 29.92" Hg upon reaching 18,000 feet.
23. While you are flying at FL 250, you hear ATC give an altimeter
setting of 28.92" Hg in your area. At what pressure altitude are you
flying? - ANSWER-25,000 feet.
, 24. En route at FL 290, the altimeter is set correctly, but not reset to
the local altimeter setting of 30.57" Hg during descent. If the field
elevation is 650 feet and the altimeter is functioning properly, whatis
the approximate indication upon landing? - ANSWER-Sea level.
25. En route at FL 290, your altimeter is set correctly, but you fail to
reset it to the local altimeter setting of 30.26 in. Hg during descent. If
the field elevation is 134 feet and your altimeter is functioning
properly, what will it indicate after landing? - ANSWER-206 feet below
MSL.
26. Under what condition will true altitude be lower than indicated
altitude with an altimeter setting of 29.92" Hg? - ANSWER-In colder
than standard air temperature.
27. When an altimeter is changed from 30.11" Hg to 29.96" Hg, in
which direction will the indicated altitude change and by what value? -
ANSWER-Altimeter will indicate 150 feet lower.
28. Which condition would cause the altimeter to indicate a lower
altitude than actually flown (true altitude)? - ANSWER-Air temperature
warmer than standard.
29. Which practical test should be made on the electric gyro
instruments prior to starting an engine? - ANSWER-Turn on the
electrical power and listen for any unusual or irregular mechanical
noise.
30. One characteristic that a properly functioning gyro depends upon
for operation is the - ANSWER-Resistance to deflection of the spinning
wheel or disc.
