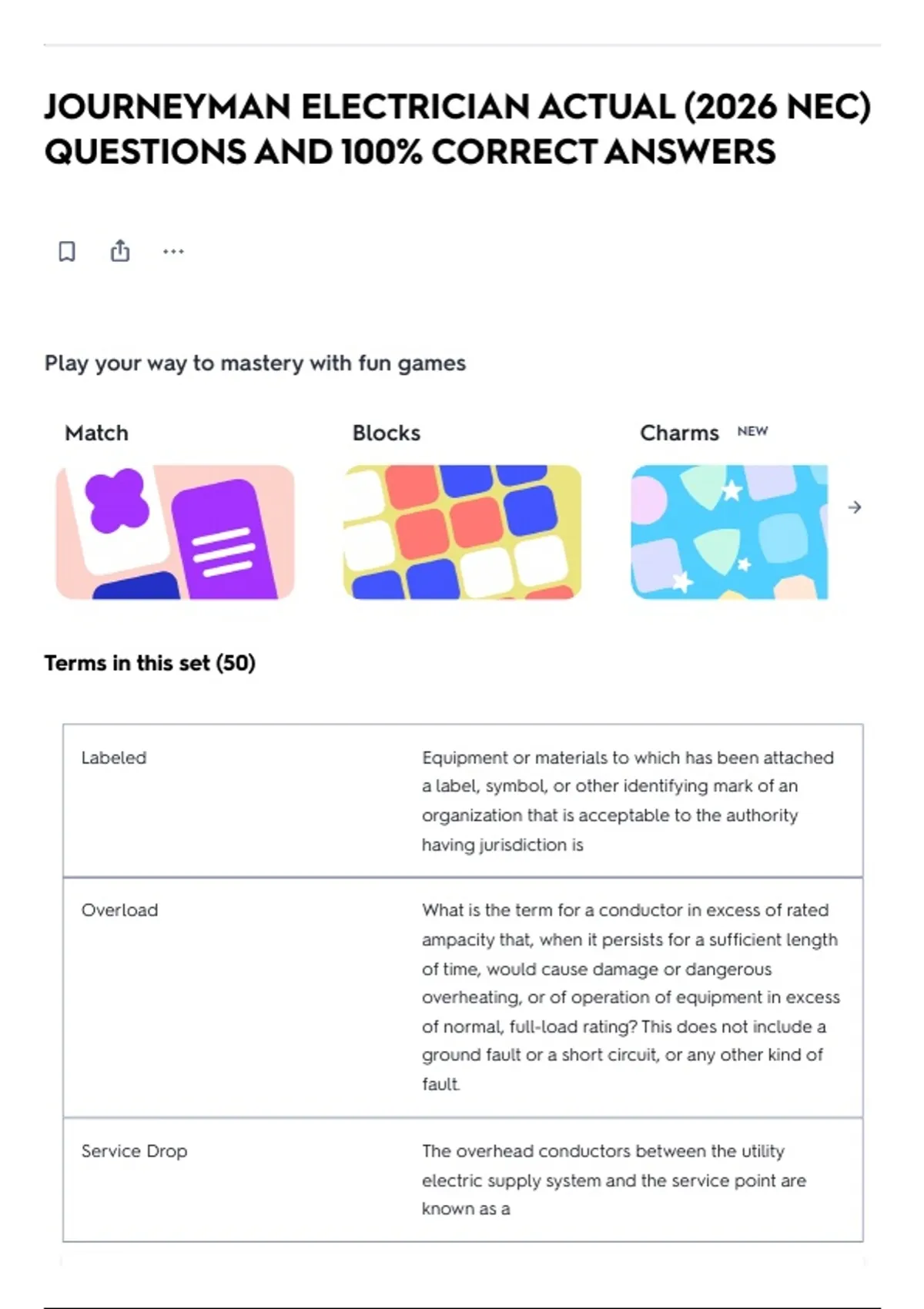

JOURNEYMAN ELECTRICIAN ACTUAL (2026 NEC)
QUESTIONS AND 100% CORRECT ANSWERS
Play your way to mastery with fun games
Match Blocks Charms NEW
Terms in this set (50)
Labeled Equipment or materials to which has been attached
a label, symbol, or other identifying mark of an
organization that is acceptable to the authority
having jurisdiction is
Overload What is the term for a conductor in excess of rated
ampacity that, when it persists for a sufficient length
of time, would cause damage or dangerous
overheating, or of operation of equipment in excess
of normal, full-load rating? This does not include a
ground fault or a short circuit, or any other kind of
fault.
Service Drop The overhead conductors between the utility
electric supply system and the service point are
known as a
, American Wire Gauge (AWG) Conductor sizes are expressed in ______ or in circular
mils
Voltage When equipment is intended to interrupt power at
fault levels, it must have an interrupt rating at least
the normal ______ of the circuit, and the current
available at the line terminals of the equipment.
Lowest The temperature rating associated with the ampacity
of a conductor shall be selected and coordinated
so as not to exceed the ______ temperature rating of
any connected termination, conductor, or device.
65 amperes For a size 6 AWG THHW copper conductor
connected to a fusible disconnect switch with
terminals rated for 75 degrees Celsius, what is the
maximum current load, in amperes?
Orange The conductor on a 4-wire, delta-connected
system, since it has the higher voltage to ground, if
the grounded conductor is also present to supply
lighting or similar loads, shall be identified by which
color?
Locked Disconnecting means shall be capable of being ______
in the open position.
30 inches In front of electric equipment, the working space
width must be at least ______, or the width of the
equipment, whichever is greater.
