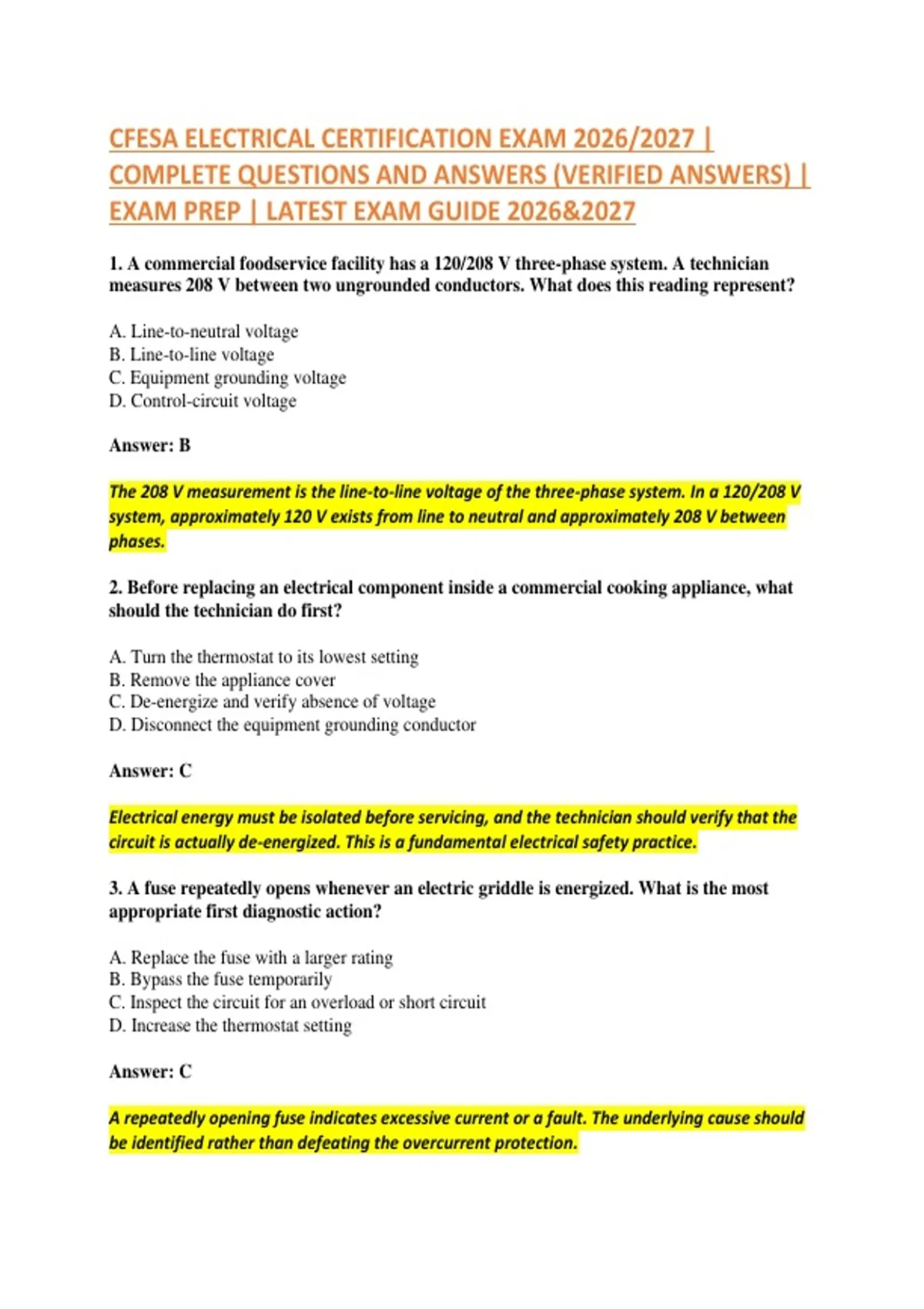

CFESA ELECTRICAL CERTIFICATION EXAM 2026/2027 |
COMPLETE QUESTIONS AND ANSWERS (VERIFIED ANSWERS) |
EXAM PREP | LATEST EXAM GUIDE 2026&2027
1. A commercial foodservice facility has a 120/208 V three-phase system. A technician
measures 208 V between two ungrounded conductors. What does this reading represent?
A. Line-to-neutral voltage
B. Line-to-line voltage
C. Equipment grounding voltage
D. Control-circuit voltage
Answer: B
The 208 V measurement is the line-to-line voltage of the three-phase system. In a 120/208 V
system, approximately 120 V exists from line to neutral and approximately 208 V between
phases.
2. Before replacing an electrical component inside a commercial cooking appliance, what
should the technician do first?
A. Turn the thermostat to its lowest setting
B. Remove the appliance cover
C. De-energize and verify absence of voltage
D. Disconnect the equipment grounding conductor
Answer: C
Electrical energy must be isolated before servicing, and the technician should verify that the
circuit is actually de-energized. This is a fundamental electrical safety practice.
3. A fuse repeatedly opens whenever an electric griddle is energized. What is the most
appropriate first diagnostic action?
A. Replace the fuse with a larger rating
B. Bypass the fuse temporarily
C. Inspect the circuit for an overload or short circuit
D. Increase the thermostat setting
Answer: C
A repeatedly opening fuse indicates excessive current or a fault. The underlying cause should
be identified rather than defeating the overcurrent protection.
,4. Which device is primarily intended to protect conductors from excessive current?
A. Circuit breaker
B. Thermostat
C. Contactor coil
D. Transformer
Answer: A
Circuit breakers provide overcurrent protection by interrupting current when a circuit exceeds
its permitted rating.
5. A technician encounters a conductor with damaged insulation inside a heated appliance.
What is the best action?
A. Wrap it with ordinary tape and continue operation
B. Replace or properly repair the damaged conductor using approved materials
C. Increase the breaker size
D. Disconnect the equipment grounding conductor
Answer: B
Damaged insulation can create shock, short-circuit, and fire hazards. The conductor should be
repaired or replaced using materials appropriate for the operating environment.
6. What is the primary purpose of an equipment grounding conductor?
A. To provide a normal return path for load current
B. To increase appliance voltage
C. To provide a low-impedance fault-current path
D. To regulate thermostat temperature
Answer: C
The equipment grounding conductor provides a low-impedance path for fault current so
protective devices can operate promptly and disconnect the faulty circuit.
7. A heating element is rated at 4,800 W on a 240 V single-phase circuit. Approximately
how much current does it draw when operating at full rated output?
A. 10 A
B. 15 A
C. 20 A
D. 30 A
Answer: C
,Using I = P ÷ V, the current is 4,800 W ÷ 240 V = 20 A.
8. A technician measures continuity through a heating element that is disconnected from
the circuit. What does the continuity indicate?
A. The element necessarily has a proper resistance
B. The element is completely shorted
C. The element has an open circuit
D. The element has some continuous conductive path
Answer: D
Continuity indicates that current can pass through the element. A separate resistance
measurement is needed to determine whether its resistance is within specification.
9. Why should a technician use the manufacturer's wiring diagram when troubleshooting a
complex appliance?
A. It eliminates the need for voltage measurements
B. It identifies intended circuit relationships and component connections
C. It permits bypassing protective devices
D. It determines the building's electrical service size
Answer: B
A wiring diagram shows how components are electrically interconnected and provides a
reliable reference for systematic troubleshooting.
10. A 120 V control circuit suddenly reads 0 V across a relay coil while the appliance is
calling for heat. What should the technician investigate first?
A. Whether the heating element is properly grounded
B. Whether the control circuit is supplying voltage to the coil
C. Whether the enclosure is painted
D. Whether the appliance is level
Answer: B
If the relay coil has no voltage when it should be energized, the technician should trace the
control circuit to identify the missing supply or control signal.
11. Which instrument is most appropriate for measuring AC voltage on an energized
circuit?
A. Clamp meter only
B. Megohmmeter
, C. Multimeter rated for the circuit category
D. Continuity tester with no voltage rating
Answer: C
A properly rated multimeter is designed to measure voltage safely when used according to its
category and operating limits.
12. A technician needs to measure current flowing through a conductor without
disconnecting the conductor. Which instrument is most suitable?
A. Clamp meter
B. Megohmmeter
C. Thermocouple
D. Phase-sequence indicator
Answer: A
A clamp meter measures current by sensing the magnetic field around a conductor and
generally allows measurement without opening the circuit.
13. What does a resistance measurement of OL on a disconnected heating element
generally indicate?
A. Excessive current
B. An open circuit
C. A grounded circuit
D. Normal low resistance
Answer: B
OL, or overload/open-loop depending on the meter, commonly indicates that the measured
circuit has no continuous conductive path.
14. A three-phase motor rotates opposite the required direction after installation. What is a
common corrective procedure?
A. Increase the fuse rating
B. Reverse any two phase conductors
C. Disconnect the ground
D. Replace the overload relay
Answer: B
Interchanging any two phase conductors reverses the phase sequence and therefore reverses
the rotation of a typical three-phase motor.
COMPLETE QUESTIONS AND ANSWERS (VERIFIED ANSWERS) |
EXAM PREP | LATEST EXAM GUIDE 2026&2027
1. A commercial foodservice facility has a 120/208 V three-phase system. A technician
measures 208 V between two ungrounded conductors. What does this reading represent?
A. Line-to-neutral voltage
B. Line-to-line voltage
C. Equipment grounding voltage
D. Control-circuit voltage
Answer: B
The 208 V measurement is the line-to-line voltage of the three-phase system. In a 120/208 V
system, approximately 120 V exists from line to neutral and approximately 208 V between
phases.
2. Before replacing an electrical component inside a commercial cooking appliance, what
should the technician do first?
A. Turn the thermostat to its lowest setting
B. Remove the appliance cover
C. De-energize and verify absence of voltage
D. Disconnect the equipment grounding conductor
Answer: C
Electrical energy must be isolated before servicing, and the technician should verify that the
circuit is actually de-energized. This is a fundamental electrical safety practice.
3. A fuse repeatedly opens whenever an electric griddle is energized. What is the most
appropriate first diagnostic action?
A. Replace the fuse with a larger rating
B. Bypass the fuse temporarily
C. Inspect the circuit for an overload or short circuit
D. Increase the thermostat setting
Answer: C
A repeatedly opening fuse indicates excessive current or a fault. The underlying cause should
be identified rather than defeating the overcurrent protection.
,4. Which device is primarily intended to protect conductors from excessive current?
A. Circuit breaker
B. Thermostat
C. Contactor coil
D. Transformer
Answer: A
Circuit breakers provide overcurrent protection by interrupting current when a circuit exceeds
its permitted rating.
5. A technician encounters a conductor with damaged insulation inside a heated appliance.
What is the best action?
A. Wrap it with ordinary tape and continue operation
B. Replace or properly repair the damaged conductor using approved materials
C. Increase the breaker size
D. Disconnect the equipment grounding conductor
Answer: B
Damaged insulation can create shock, short-circuit, and fire hazards. The conductor should be
repaired or replaced using materials appropriate for the operating environment.
6. What is the primary purpose of an equipment grounding conductor?
A. To provide a normal return path for load current
B. To increase appliance voltage
C. To provide a low-impedance fault-current path
D. To regulate thermostat temperature
Answer: C
The equipment grounding conductor provides a low-impedance path for fault current so
protective devices can operate promptly and disconnect the faulty circuit.
7. A heating element is rated at 4,800 W on a 240 V single-phase circuit. Approximately
how much current does it draw when operating at full rated output?
A. 10 A
B. 15 A
C. 20 A
D. 30 A
Answer: C
,Using I = P ÷ V, the current is 4,800 W ÷ 240 V = 20 A.
8. A technician measures continuity through a heating element that is disconnected from
the circuit. What does the continuity indicate?
A. The element necessarily has a proper resistance
B. The element is completely shorted
C. The element has an open circuit
D. The element has some continuous conductive path
Answer: D
Continuity indicates that current can pass through the element. A separate resistance
measurement is needed to determine whether its resistance is within specification.
9. Why should a technician use the manufacturer's wiring diagram when troubleshooting a
complex appliance?
A. It eliminates the need for voltage measurements
B. It identifies intended circuit relationships and component connections
C. It permits bypassing protective devices
D. It determines the building's electrical service size
Answer: B
A wiring diagram shows how components are electrically interconnected and provides a
reliable reference for systematic troubleshooting.
10. A 120 V control circuit suddenly reads 0 V across a relay coil while the appliance is
calling for heat. What should the technician investigate first?
A. Whether the heating element is properly grounded
B. Whether the control circuit is supplying voltage to the coil
C. Whether the enclosure is painted
D. Whether the appliance is level
Answer: B
If the relay coil has no voltage when it should be energized, the technician should trace the
control circuit to identify the missing supply or control signal.
11. Which instrument is most appropriate for measuring AC voltage on an energized
circuit?
A. Clamp meter only
B. Megohmmeter
, C. Multimeter rated for the circuit category
D. Continuity tester with no voltage rating
Answer: C
A properly rated multimeter is designed to measure voltage safely when used according to its
category and operating limits.
12. A technician needs to measure current flowing through a conductor without
disconnecting the conductor. Which instrument is most suitable?
A. Clamp meter
B. Megohmmeter
C. Thermocouple
D. Phase-sequence indicator
Answer: A
A clamp meter measures current by sensing the magnetic field around a conductor and
generally allows measurement without opening the circuit.
13. What does a resistance measurement of OL on a disconnected heating element
generally indicate?
A. Excessive current
B. An open circuit
C. A grounded circuit
D. Normal low resistance
Answer: B
OL, or overload/open-loop depending on the meter, commonly indicates that the measured
circuit has no continuous conductive path.
14. A three-phase motor rotates opposite the required direction after installation. What is a
common corrective procedure?
A. Increase the fuse rating
B. Reverse any two phase conductors
C. Disconnect the ground
D. Replace the overload relay
Answer: B
Interchanging any two phase conductors reverses the phase sequence and therefore reverses
the rotation of a typical three-phase motor.
