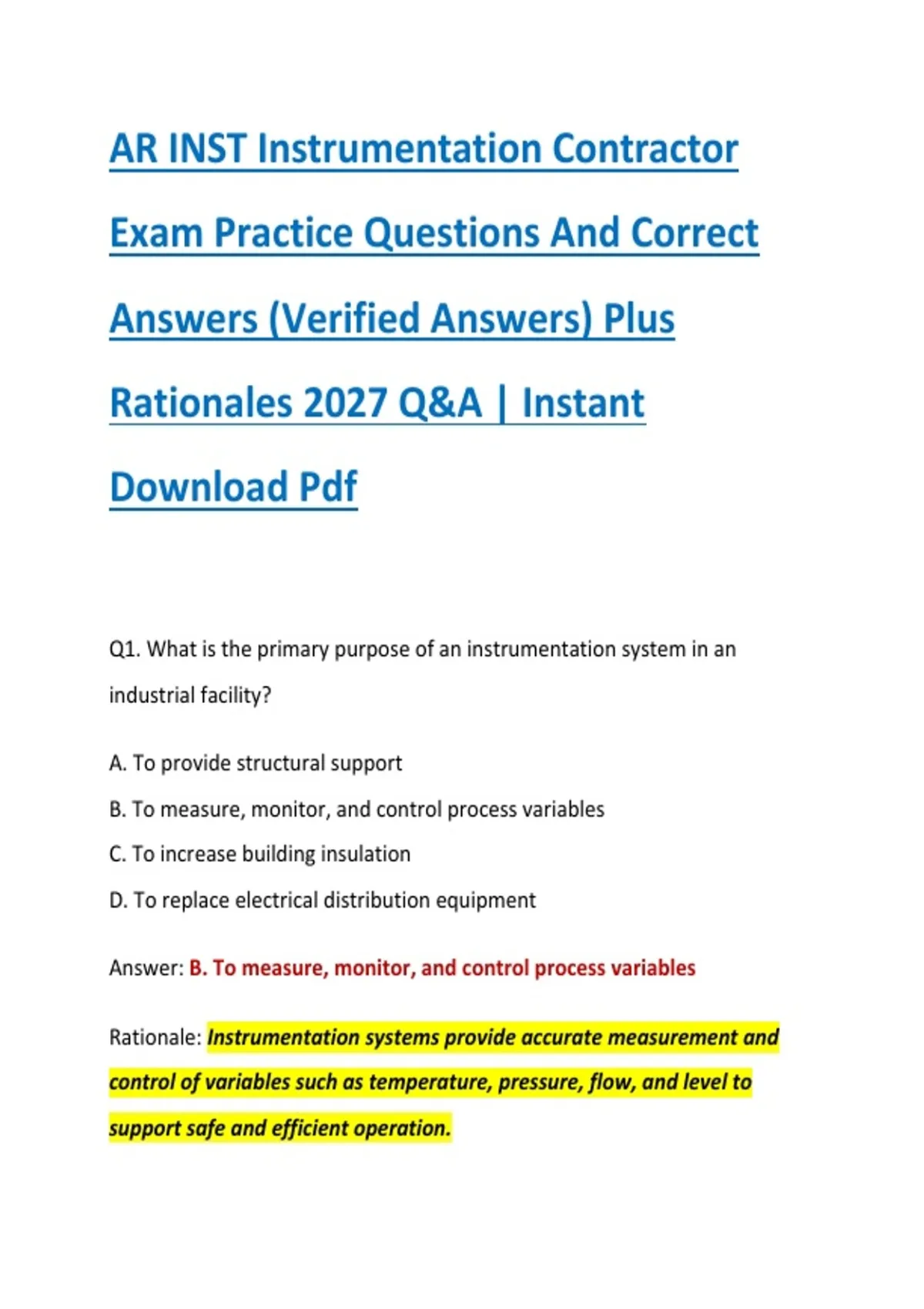

AR INST Instrumentation Contractor
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationales 2027 Q&A | Instant
Download Pdf
Q1. What is the primary purpose of an instrumentation system in an
industrial facility?
A. To provide structural support
B. To measure, monitor, and control process variables
C. To increase building insulation
D. To replace electrical distribution equipment
Answer: B. To measure, monitor, and control process variables
Rationale: Instrumentation systems provide accurate measurement and
control of variables such as temperature, pressure, flow, and level to
support safe and efficient operation.
,Q2. Which process variable is commonly measured using a thermocouple?
A. Pressure
B. Flow
C. Temperature
D. Liquid level
Answer: C. Temperature
Rationale: A thermocouple generates a voltage related to the temperature
difference between its measuring junction and reference junction, making
it a common temperature sensor.
Q3. What does a 4–20 mA signal typically represent in an instrumentation
system?
A. Digital communication only
B. An analog process measurement
C. AC power distribution
D. Pneumatic pressure
Answer: B. An analog process measurement
,Rationale: The 4–20 mA standard is widely used to transmit analog
measurements, with 4 mA normally representing the lower range and 20
mA the upper range.
Q4. Why is 4 mA commonly used as the low end of an analog signal instead
of 0 mA?
A. It eliminates the need for calibration
B. It allows detection of certain open-circuit or fault conditions
C. It increases supply voltage
D. It prevents grounding
Answer: B. It allows detection of certain open-circuit or fault conditions
Rationale: A live zero provides a distinguishable signal above zero, allowing
a control system to distinguish a valid low reading from some wiring or
transmitter failures.
Q5. Which instrument is used to measure fluid pressure?
A. Thermocouple
B. Pressure transmitter
, C. Rotameter
D. Tachometer
Answer: B. Pressure transmitter
Rationale: A pressure transmitter senses process pressure and converts it
into a standardized output, commonly 4–20 mA, for monitoring or control.
Q6. What is the purpose of an instrument calibration?
A. To increase pipe diameter
B. To compare and adjust an instrument against a known standard
C. To eliminate all process noise
D. To change the process fluid
Answer: B. To compare and adjust an instrument against a known standard
Rationale: Calibration establishes the relationship between an instrument's
indication or output and a known reference standard and allows
adjustment when necessary.
Q7. Which device is commonly used to measure liquid level by detecting
hydrostatic pressure?
