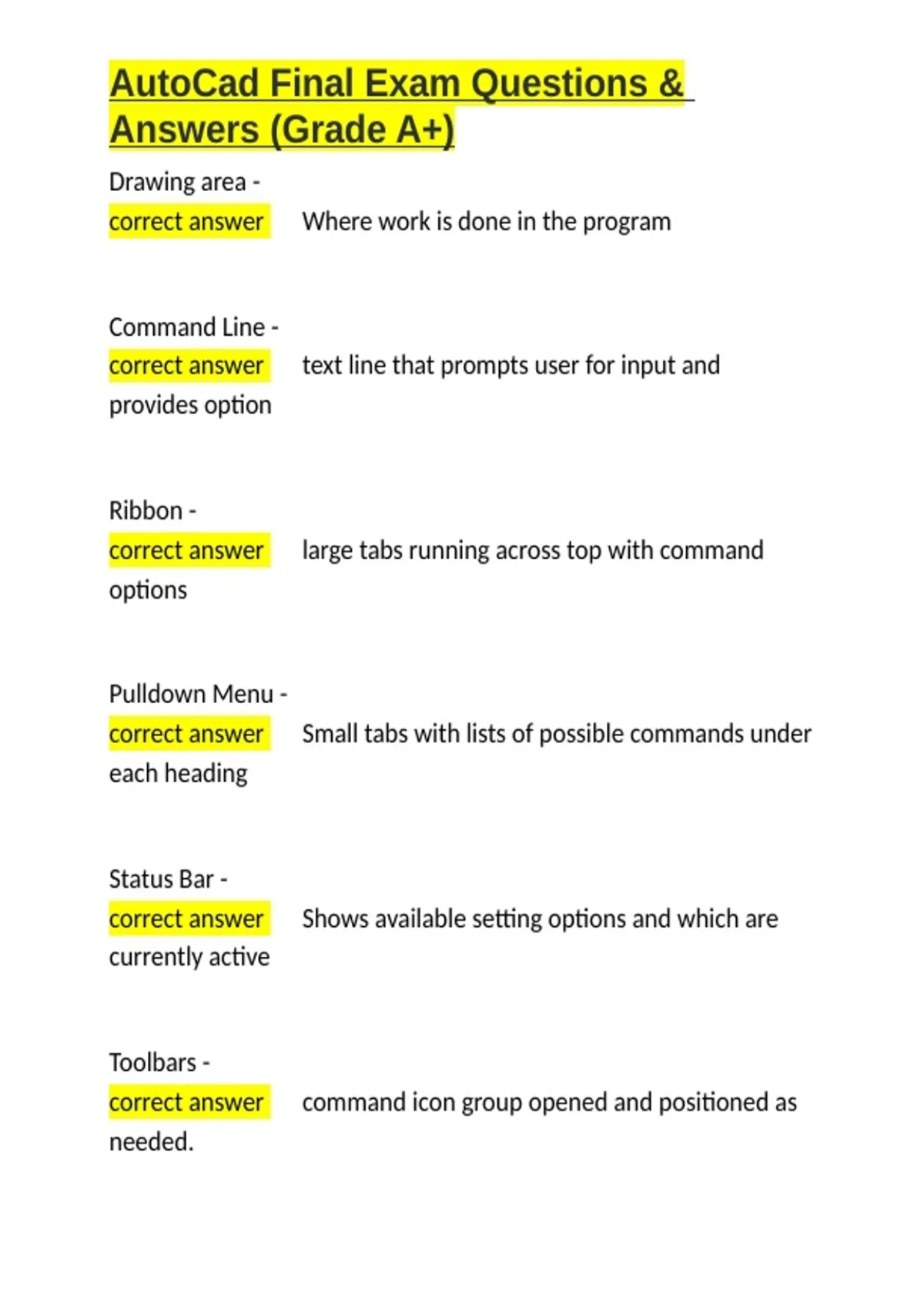

AutoCad Final Exam Questions &
Answers (Grade A+)
Drawing area -
correct answer ✅Where work is done in the program
Command Line -
correct answer ✅text line that prompts user for input and
provides option
Ribbon -
correct answer ✅large tabs running across top with command
options
Pulldown Menu -
correct answer ✅Small tabs with lists of possible commands under
each heading
Status Bar -
correct answer ✅Shows available setting options and which are
currently active
Toolbars -
correct answer ✅command icon group opened and positioned as
needed.
,AutoCad Final Exam Questions &
Answers (Grade A+)
Command Alias -
correct answer ✅a keyboard shortcut directly to certain
commands
line (l) -
correct answer ✅Specify 1st and 2nd points
circle (c) -
correct answer ✅several options depending on situation
rectangle (rec) -
correct answer ✅draws rectangle based off opposing corners
polygon -
correct answer ✅connected sequence of lines with several editing
characteristics
polyline (pl) -
correct answer ✅connected sequence of lines with several editing
characteristics
, AutoCad Final Exam Questions &
Answers (Grade A+)
hatch -
correct answer ✅puts selected pattern in enclosed area
pedit (pe) -
correct answer ✅edits polylines
text -
correct answer ✅single or multiline text options
coordinates -
correct answer ✅x &y from starting point (0,0) origin
units (un) -
correct answer ✅decimal, architectural
limits -
correct answer ✅sets up amount of space to work with
absolute coordinates -
correct answer ✅x & y points based from the origin
