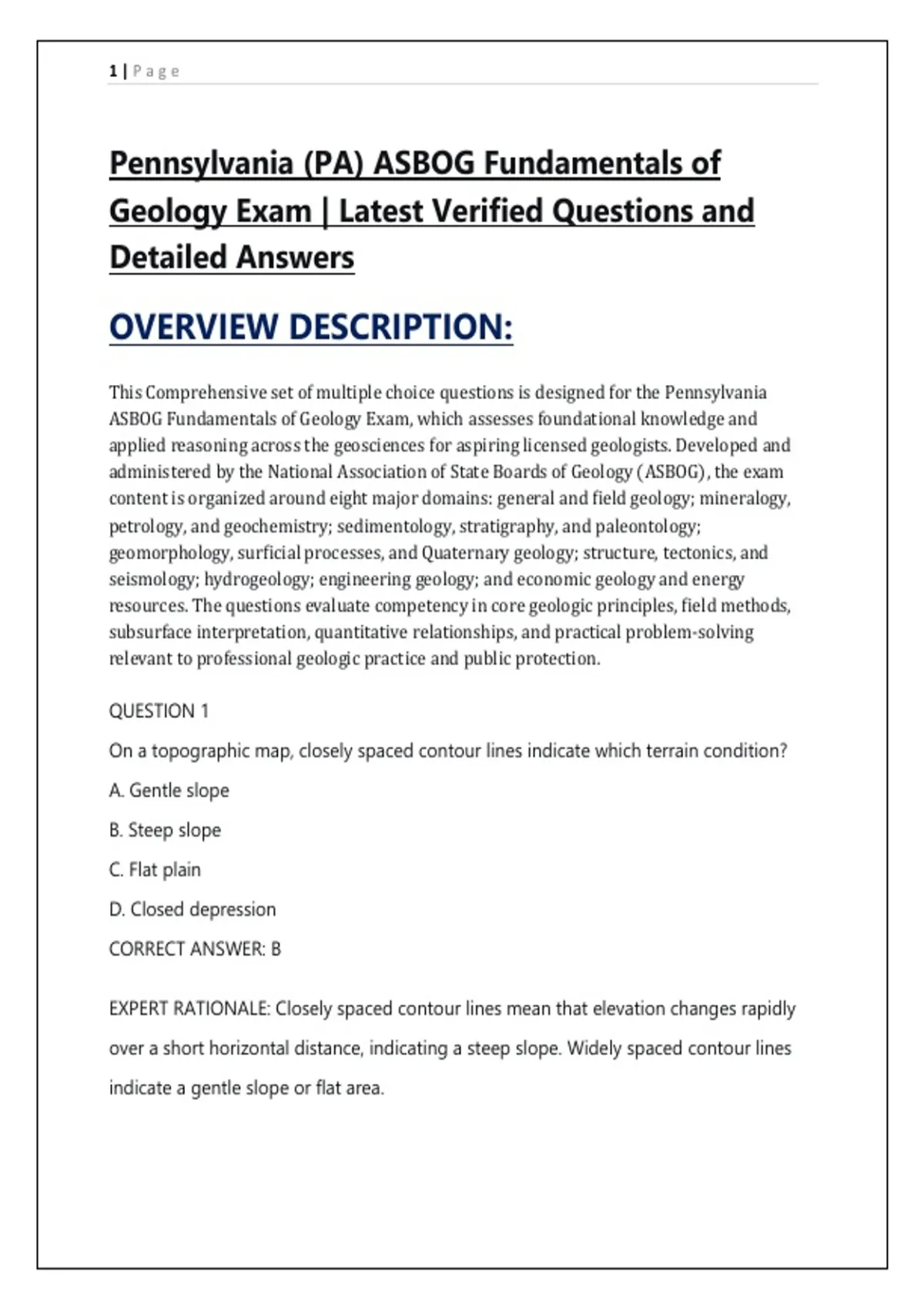

1|Page
Pennsylvania (PA) ASBOG Fundamentals of
Geology Exam | Latest Verified Questions and
Detailed Answers
OVERVIEW DESCRIPTION:
This Comprehensive set of multiple choice questions is designed for the Pennsylvania
ASBOG Fundamentals of Geology Exam, which assesses foundational knowledge and
applied reasoning across the geosciences for aspiring licensed geologists. Developed and
administered by the National Association of State Boards of Geology (ASBOG), the exam
content is organized around eight major domains: general and field geology; mineralogy,
petrology, and geochemistry; sedimentology, stratigraphy, and paleontology;
geomorphology, surficial processes, and Quaternary geology; structure, tectonics, and
seismology; hydrogeology; engineering geology; and economic geology and energy
resources. The questions evaluate competency in core geologic principles, field methods,
subsurface interpretation, quantitative relationships, and practical problem-solving
relevant to professional geologic practice and public protection.
QUESTION 1
On a topographic map, closely spaced contour lines indicate which terrain condition?
A. Gentle slope
B. Steep slope
C. Flat plain
D. Closed depression
CORRECT ANSWER: B
EXPERT RATIONALE: Closely spaced contour lines mean that elevation changes rapidly
over a short horizontal distance, indicating a steep slope. Widely spaced contour lines
indicate a gentle slope or flat area.
,2|Page
QUESTION 2
The strike of a planar geologic structure is best defined as:
A. The direction of maximum slope
B. The compass direction of a horizontal line on the plane
C. The angle between the plane and horizontal
D. The direction of plunge
CORRECT ANSWER: B
EXPERT RATIONALE: Strike is the orientation of the line formed by the intersection of a
planar feature with a horizontal plane. It is measured as a compass direction.
QUESTION 3
Which measurement must be made perpendicular to strike to determine true dip?
A. Apparent dip in any vertical plane
B. Dip in a vertical plane perpendicular to strike
C. Plunge of a fold hinge
D. Rake of a lineation
CORRECT ANSWER: B
EXPERT RATIONALE: True dip is the maximum angle of inclination of a plane, measured
in a vertical plane perpendicular to strike. Apparent dip is measured in any other vertical
plane and is always less than true dip.
QUESTION 4
On a 1:24,000 scale topographic map, one inch equals how many feet on the ground?
A. 1,000 ft
B. 2,000 ft
C. 2,400 ft
,3|Page
D. 24,000 ft
CORRECT ANSWER: B
EXPERT RATIONALE: A scale of 1:24,000 means one inch on the map represents 24,000
inches on the ground. Dividing 24,000 inches by 12 inches per foot gives 2,000 feet.
QUESTION 5
If the magnetic declination is 10° east, what is the true bearing of a line with a magnetic
bearing of N40°E?
A. N30°E
B. N40°E
C. N50°E
D. N50°W
CORRECT ANSWER: C
EXPERT RATIONALE: With east magnetic declination, magnetic north lies east of true
north, so true bearing equals magnetic bearing plus the east declination. N40°E plus 10°
gives N50°E.
QUESTION 6
A three-point problem using elevations of a formation top can directly determine:
A. Formation thickness
B. Strike and dip of the contact
C. Porosity
D. Fault slip rate
CORRECT ANSWER: B
, 4|Page
EXPERT RATIONALE: Three elevation points on the same planar contact define the
orientation of that plane. The strike and dip can be determined geometrically from the
three points.
QUESTION 7
Apparent dip is always:
A. Greater than true dip
B. Equal to true dip
C. Less than true dip unless measured perpendicular to strike
D. Zero
CORRECT ANSWER: C
EXPERT RATIONALE: Apparent dip is the inclination of a plane measured in a direction
not perpendicular to strike. It is always less than true dip except when measured exactly
perpendicular to strike, where it equals true dip.
QUESTION 8
A vertical cross-section with vertical exaggeration equal to 2 has:
A. Vertical scale twice horizontal scale
B. Horizontal scale twice vertical scale
C. Equal vertical and horizontal scales
D. No vertical scale
CORRECT ANSWER: A
EXPERT RATIONALE: Vertical exaggeration is the ratio of vertical scale to horizontal
scale. A value of 2 means vertical distances are plotted at twice the scale of horizontal
distances.
