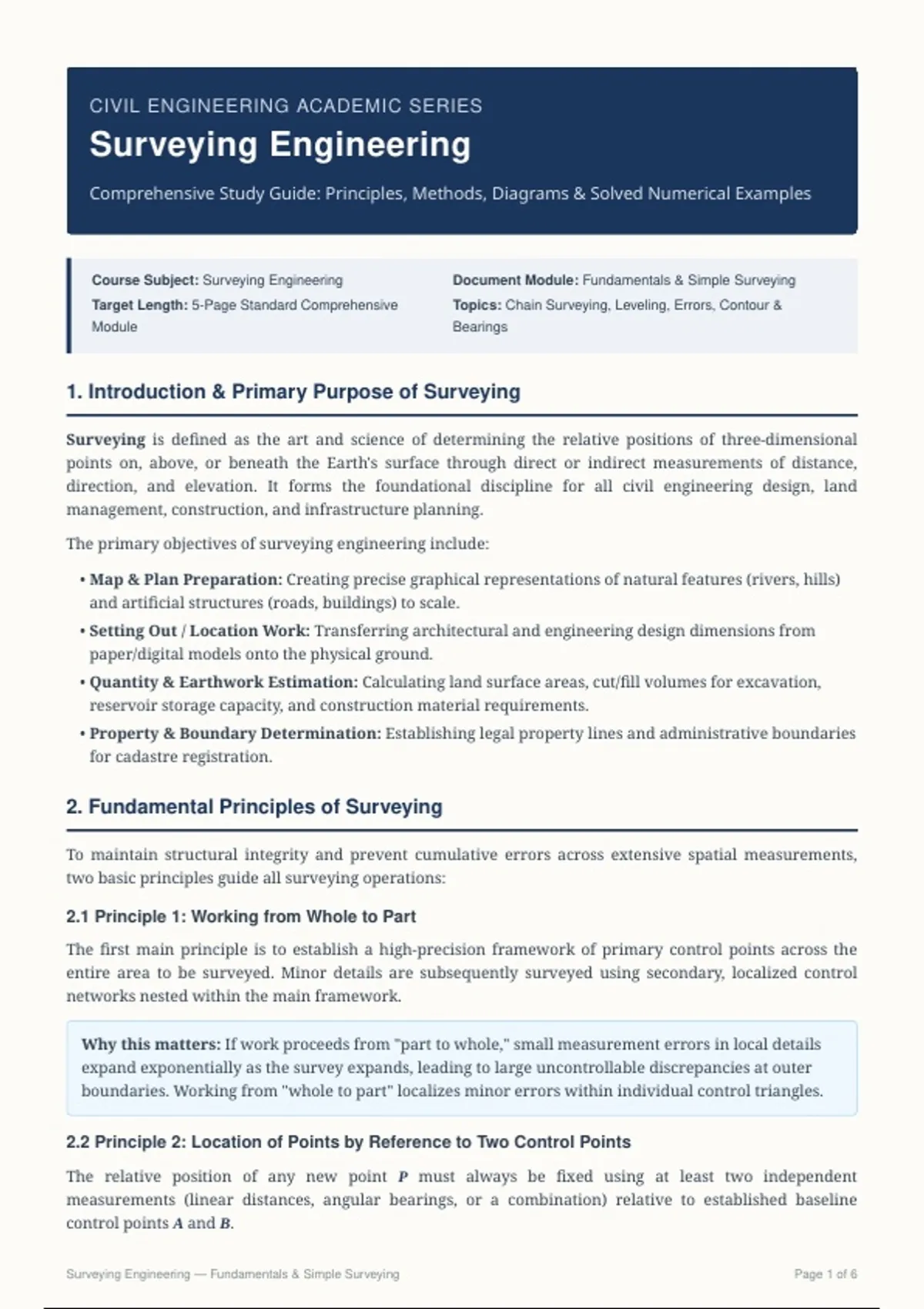

CIVIL ENGINEERING ACADEMIC SERIES
Surveying Engineering
Comprehensive Study Guide: Principles, Methods, Diagrams & Solved Numerical Examples
Course Subject: Surveying Engineering Document Module: Fundamentals & Simple Surveying
Target Length: 5-Page Standard Comprehensive Topics: Chain Surveying, Leveling, Errors, Contour &
Module Bearings
1. Introduction & Primary Purpose of Surveying
Surveying is defined as the art and science of determining the relative positions of three-dimensional
points on, above, or beneath the Earth's surface through direct or indirect measurements of distance,
direction, and elevation. It forms the foundational discipline for all civil engineering design, land
management, construction, and infrastructure planning.
The primary objectives of surveying engineering include:
• Map & Plan Preparation: Creating precise graphical representations of natural features (rivers, hills)
and artificial structures (roads, buildings) to scale.
• Setting Out / Location Work: Transferring architectural and engineering design dimensions from
paper/digital models onto the physical ground.
• Quantity & Earthwork Estimation: Calculating land surface areas, cut/fill volumes for excavation,
reservoir storage capacity, and construction material requirements.
• Property & Boundary Determination: Establishing legal property lines and administrative boundaries
for cadastre registration.
2. Fundamental Principles of Surveying
To maintain structural integrity and prevent cumulative errors across extensive spatial measurements,
two basic principles guide all surveying operations:
2.1 Principle 1: Working from Whole to Part
The first main principle is to establish a high-precision framework of primary control points across the
entire area to be surveyed. Minor details are subsequently surveyed using secondary, localized control
networks nested within the main framework.
Why this matters: If work proceeds from "part to whole," small measurement errors in local details
expand exponentially as the survey expands, leading to large uncontrollable discrepancies at outer
boundaries. Working from "whole to part" localizes minor errors within individual control triangles.
2.2 Principle 2: Location of Points by Reference to Two Control Points
The relative position of any new point P must always be fixed using at least two independent
measurements (linear distances, angular bearings, or a combination) relative to established baseline
control points A and B.
Surveying Engineering — Fundamentals & Simple Surveying Page 1 of 6
, Point P (Method 1: Two Distances) Point Q (Method 2: Offset)
d₁ d₂ Offset (h)
Point A Point B Point Distance
A x Point B
Figure 1: Locating new control/detail points (P and Q) using distance measurements and offset techniques relative to known
baselines.
3. Primary Classifications of Surveying
3.1 Based on Earth's Curvature Consideration
• Plane Surveying: Assumes the Earth's surface is flat for measurement areas below 250 km². The
curvature of the Earth is neglected, and spherical triangles are treated as plane triangles. Angles
measured are plane angles.
• Geodetic Surveying: Strictly considers the ellipsoidal curvature of the Earth for large-scale geographic
mappings spanning state or national borders. High-precision instruments and spherical trigonometry
are employed.
3.2 Based on Survey Instruments & Objectives
• Chain/Tape Surveying: Relying exclusively on linear measurements; ideal for flat, open ground with
minor details.
• Compass Surveying: Uses a magnetic compass to measure magnetic bearings of survey lines in
traversing networks.
• Leveling: Determines relative vertical elevations and contours using optical sight levels and graduated
leveling staves.
• Plane Table Surveying: A graphical field technique where observation and plotting are conducted
simultaneously in the field.
4. Simple Surveying Techniques & Mathematical Frameworks
4.1 Chain Surveying & Triangulation
In chain surveying, the area is covered by a network of interconnected triangles. A triangle is considered
well-conditioned if no internal angle is less than 30° or greater than 120°. The area of individual triangles is
calculated using Heron's Formula:
Area = √[s(s - a)(s - b)(s - c)]
where s = (a + b + c) / 2 represents the semi-perimeter.
4.2 Simple Differential Leveling
Leveling establishes the height of vertical terrain points relative to an established datum plane (such as
Mean Sea Level).
Surveying Engineering — Fundamentals & Simple Surveying Page 2 of 6
