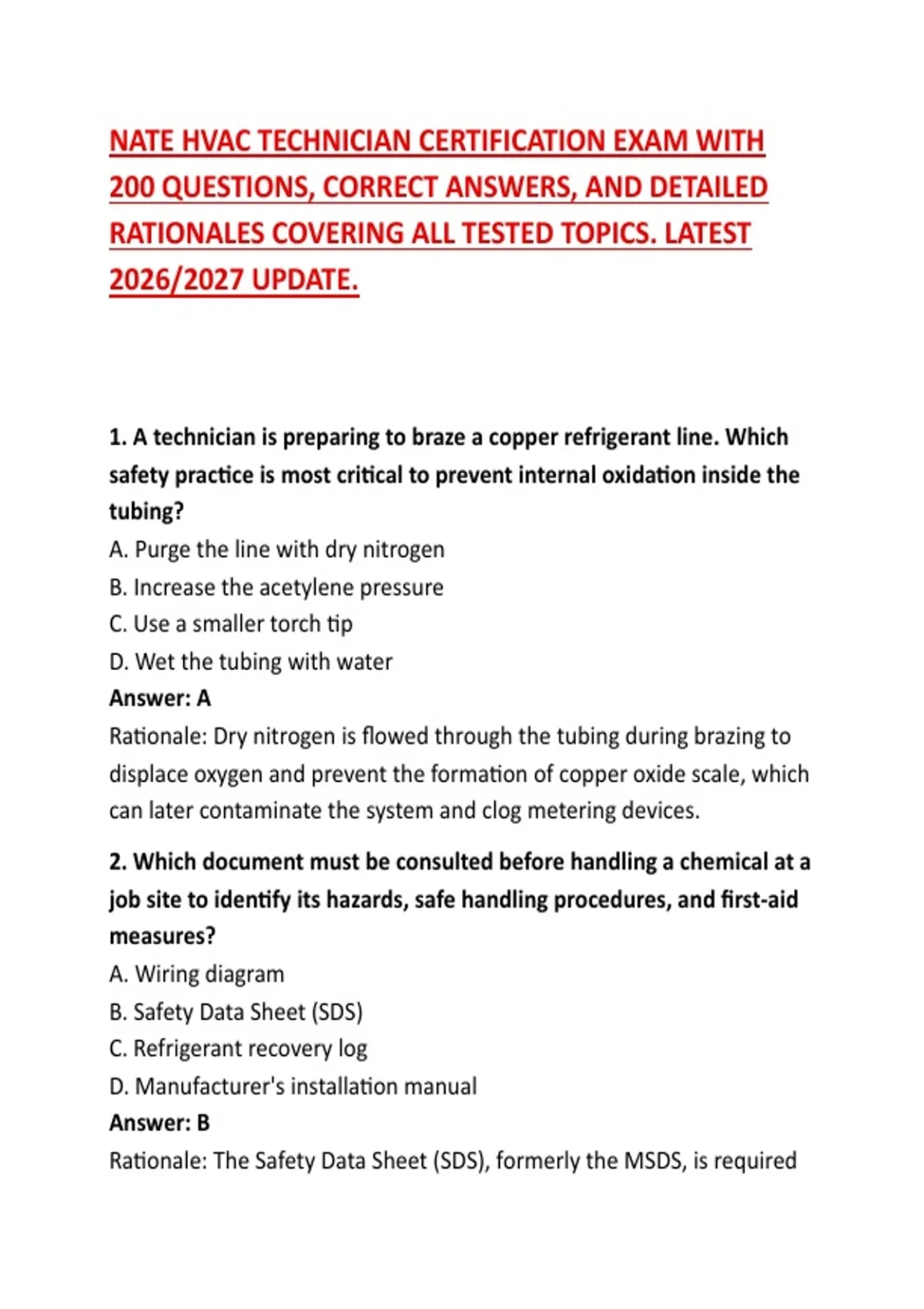

NATE HVAC TECHNICIAN CERTIFICATION EXAM WITH
200 QUESTIONS, CORRECT ANSWERS, AND DETAILED
RATIONALES COVERING ALL TESTED TOPICS. LATEST
2026/2027 UPDATE.
1. A technician is preparing to braze a copper refrigerant line. Which
safety practice is most critical to prevent internal oxidation inside the
tubing?
A. Purge the line with dry nitrogen
B. Increase the acetylene pressure
C. Use a smaller torch tip
D. Wet the tubing with water
Answer: A
Rationale: Dry nitrogen is flowed through the tubing during brazing to
displace oxygen and prevent the formation of copper oxide scale, which
can later contaminate the system and clog metering devices.
2. Which document must be consulted before handling a chemical at a
job site to identify its hazards, safe handling procedures, and first-aid
measures?
A. Wiring diagram
B. Safety Data Sheet (SDS)
C. Refrigerant recovery log
D. Manufacturer's installation manual
Answer: B
Rationale: The Safety Data Sheet (SDS), formerly the MSDS, is required
,by OSHA's Hazard Communication Standard and contains 16 sections
covering hazards, handling, storage, PPE, and emergency measures for a
chemical.
3. A technician is measuring the temperature of a supply air register.
Which instrument is best suited for this task?
A. Sling psychrometer
B. Infrared thermometer
C. Manometer
D. Micron gauge
Answer: B
Rationale: An infrared thermometer allows non-contact surface
temperature measurement of the register and supply air. A sling
psychrometer measures humidity, a manometer measures pressure,
and a micron gauge measures vacuum.
4. What is the primary purpose of a heat pump's reversing valve?
A. To regulate refrigerant flow to the evaporator
B. To change the direction of refrigerant flow for heating or cooling
C. To control the compressor's speed
D. To bypass the condenser coil
Answer: B
Rationale: The reversing valve changes the direction of refrigerant flow,
allowing the heat pump to switch between heating and cooling modes
by swapping the roles of the indoor and outdoor coils.
5. A technician measures 240 volts across the two supply conductors
feeding a single-phase compressor, but the compressor will not start.
What should be checked next?
A. Outdoor humidity
,B. Compressor capacitor and electrical components
C. Evaporator drain slope
D. Refrigerant cylinder temperature
Answer: B
Rationale: Correct supply voltage does not prove that starting
components are functioning. The capacitor, contactor, and compressor
circuit require further testing to identify the failure.
6. Which type of motor is commonly used in a residential furnace
blower and is known for its ability to maintain constant airflow
despite static pressure changes?
A. PSC motor
B. Shaded-pole motor
C. Electronically Commutated Motor (ECM)
D. Split-phase motor
Answer: C
Rationale: ECM motors use electronic controls to maintain constant
airflow across a range of static pressures, improving comfort and energy
efficiency compared to PSC motors.
7. A technician is troubleshooting a gas furnace that ignites but shuts
down shortly afterward. Which component commonly confirms flame
presence?
A. Evaporator thermistor
B. Flame sensor
C. Liquid-line filter
D. Condenser fan blade
Answer: B
Rationale: The flame sensor verifies burner flame to the control system.
, A dirty or defective sensor can cause the burners to shut down shortly
after ignition.
8. When measuring electrical resistance across a compressor winding,
why must electrical power be disconnected before using an
ohmmeter?
A. Resistance cannot be measured indoors
B. Voltage can damage the meter and create a shock hazard
C. Refrigerant pressure will increase
D. The compressor must remain energized
Answer: B
Rationale: Ohmmeters supply their own testing voltage and should
never be connected to an energized circuit because equipment and
personnel can be endangered.
9. A technician is checking the charge on a residential air-conditioning
system using the superheat method. Which conditions must be
known?
A. Outdoor temperature and humidity
B. Suction line temperature and suction pressure
C. Liquid line temperature and discharge pressure
D. Indoor wet-bulb and dry-bulb temperatures
Answer: B
Rationale: Superheat is calculated by subtracting the saturation
temperature (from suction pressure) from the suction line temperature.
Both values are required for an accurate charge.
10. What is the function of a condenser coil in an air-conditioning
system?
A. To absorb heat from the indoor air
