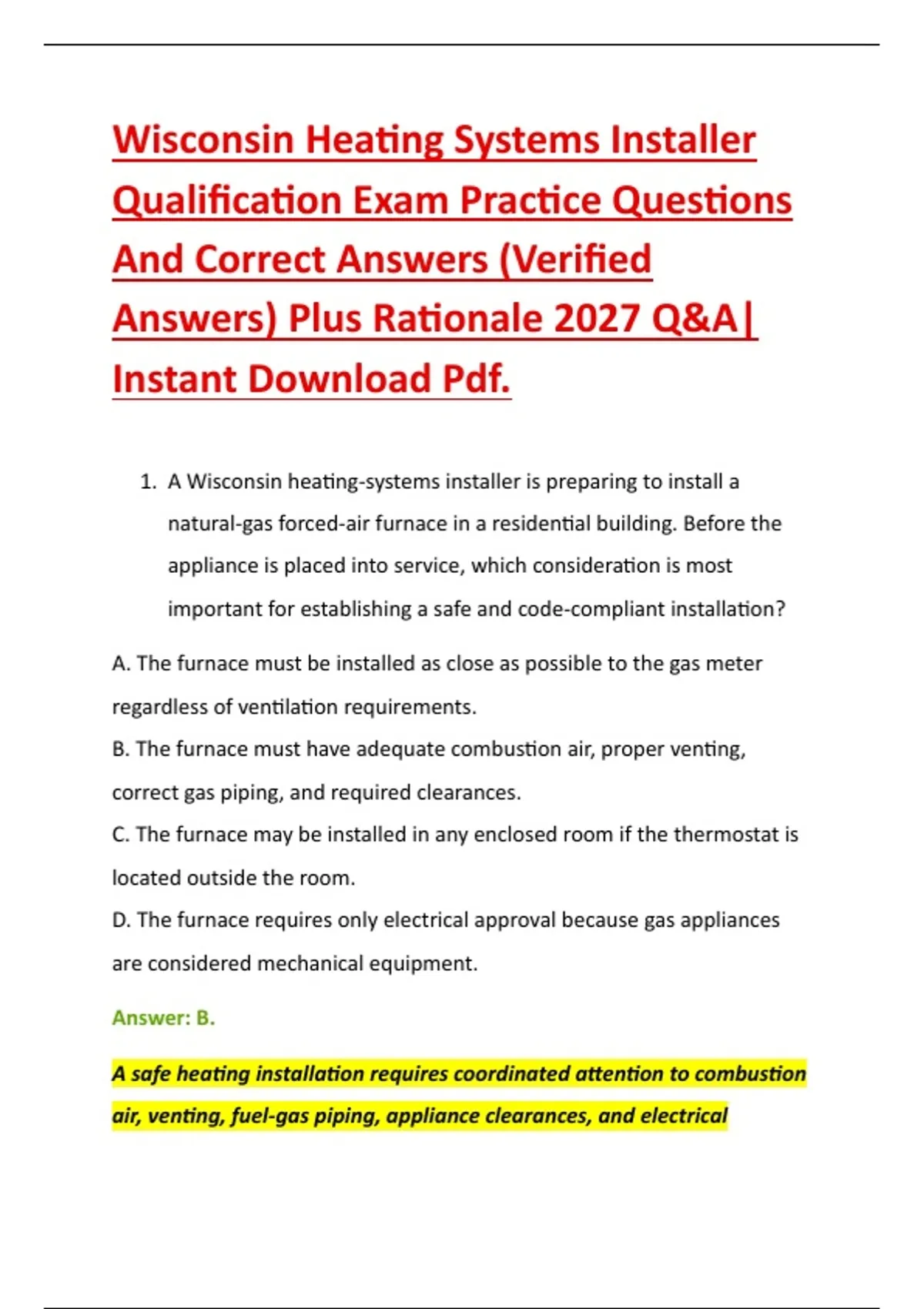

Wisconsin Heating Systems Installer
Qualification Exam Practice Questions
And Correct Answers (Verified
Answers) Plus Rationale 2027 Q&A|
Instant Download Pdf.
1. A Wisconsin heating-systems installer is preparing to install a
natural-gas forced-air furnace in a residential building. Before the
appliance is placed into service, which consideration is most
important for establishing a safe and code-compliant installation?
A. The furnace must be installed as close as possible to the gas meter
regardless of ventilation requirements.
B. The furnace must have adequate combustion air, proper venting,
correct gas piping, and required clearances.
C. The furnace may be installed in any enclosed room if the thermostat is
located outside the room.
D. The furnace requires only electrical approval because gas appliances
are considered mechanical equipment.
Answer: B.
A safe heating installation requires coordinated attention to combustion
air, venting, fuel-gas piping, appliance clearances, and electrical
,requirements. A deficiency in any one of these areas can create fire,
carbon-monoxide, explosion, or equipment-performance hazards.
2. In a conventional natural-gas furnace, what is the primary purpose
of the heat exchanger?
A. To increase gas pressure before combustion
B. To transfer heat from combustion products to the circulating air
without allowing the combustion gases to mix with that air
C. To remove humidity from return air
D. To regulate the electrical current supplied to the blower
Answer: B.
The heat exchanger separates the combustion side from the
conditioned-air side while transferring thermal energy. A damaged or
cracked heat exchanger can allow combustion products, including
carbon monoxide, to enter the occupied-air stream.
3. A furnace has a rated input of 100,000 Btu/h and operates at 80
percent steady-state efficiency. Approximately how much useful
heat is delivered to the conditioned space at rated input, assuming
the stated efficiency represents the useful output?
A. 20,000 Btu/h
B. 50,000 Btu/h
C. 80,000 Btu/h
D. 125,000 Btu/h
Answer: C.
,Useful output is calculated by multiplying input by efficiency: 100,000 ×
0.80 = 80,000 Btu/h. The remaining 20,000 Btu/h represents energy not
converted into useful space-heating output under the stated
assumptions.
4. Which component of a modern gas furnace is primarily responsible
for proving that the ignition sequence has established a flame?
A. Flame sensor
B. Return-air filter
C. Blower wheel
D. Supply-air register
Answer: A.
The flame sensor verifies flame establishment so the control system can
continue allowing gas flow. If the expected flame signal is absent, the
furnace control normally shuts off the gas valve as a safety response.
5. What is the principal function of a furnace pressure switch in a
typical induced-draft gas furnace?
A. To measure room temperature
B. To verify an appropriate pressure condition associated with the
combustion-air and venting system
C. To regulate the thermostat voltage
D. To measure refrigerant pressure
Answer: B.
, The pressure switch is a safety device that confirms an appropriate draft
or pressure condition before permitting the ignition sequence to
proceed. Blocked venting, a defective inducer, or other airflow problems
can prevent the switch from proving.
6. A heating installer discovers that a furnace flue contains significant
corrosion and evidence of condensate accumulation even though
the appliance was not designed as a condensing furnace. What
should the installer do first?
A. Increase the thermostat setting to dry the vent
B. Ignore the condition because corrosion is normal in all furnace vents
C. Investigate the venting, combustion, and appliance installation for an
unsafe condition
D. Seal the vent opening with ordinary duct tape
Answer: C.
Unexpected condensation and corrosion in a noncondensing furnace
vent can indicate improper vent sizing, inadequate vent temperature,
excessive dilution air, improper slope, or other installation problems. The
underlying cause must be identified rather than simply concealing the
symptom.
7. Why must a gas appliance's input rating be considered when sizing
its fuel-gas piping?
A. Gas appliances consume fuel at different rates and the piping must
deliver adequate gas volume at the required pressure.
